Non Fire Rated Riser Door Access Panel with Budget Lock - Beaded or Picture Frame

The Non Fire Rated Riser Door Access Panel – Picture Frame provides secure and practical access to concealed building services within standard flexible wall constructions. Designed for use in internal walls where fire, acoustic, or airtight performance is not required, this riser door offers a reliable and economical access solution for maintenance and inspection points.

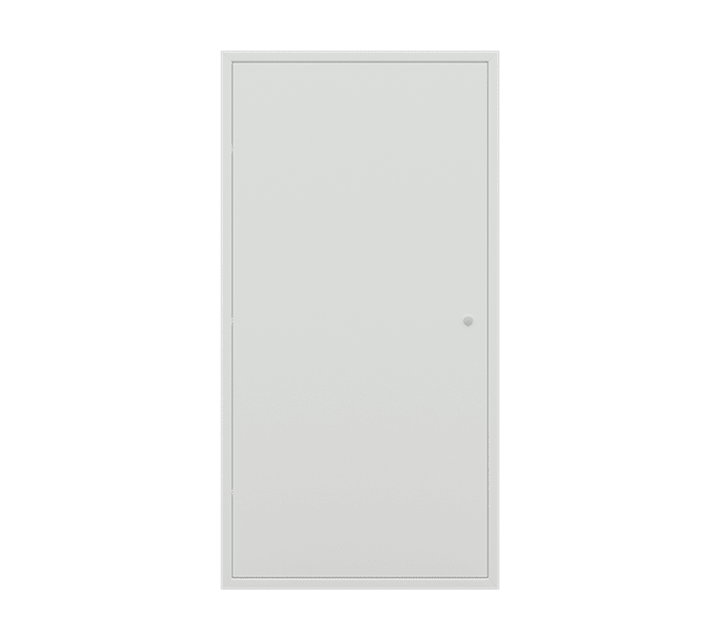

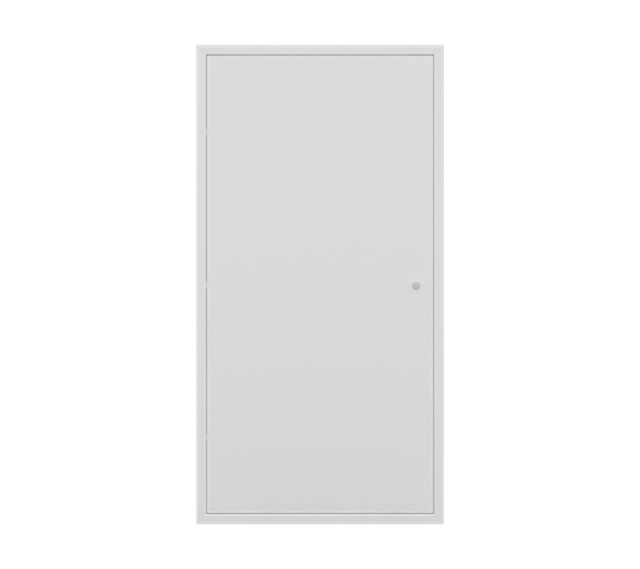

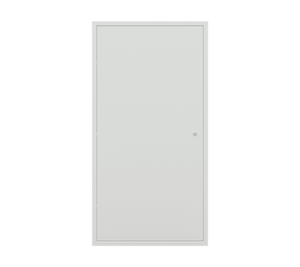

Manufactured from Zintec steel, the panel features a metal faced door leaf and a 25mm wide picture frame that creates a clean and professional finish around the opening. The door is secured using a 3-point locking system as standard, ensuring the panel remains firmly closed while still allowing easy authorised access when required.

The access panel is finished in a durable RAL 9010 powder coating with a 30% gloss level, making it suitable for a wide range of commercial and residential interiors. Alternative colours and locking options are available upon request for projects requiring specific finishes.

A spring pin hinge system is supplied as standard, allowing the door to be removed quickly during installation or maintenance, reducing fitting time compared to traditional piano hinge designs.

These riser doors are made to order and are ideal for service risers, ducts, pipework access points, and other concealed services within wall systems.

Ideal Applications

Suitable for internal wall installations including:

• Service risers

• Building services access

• Pipework and plumbing systems

• Ductwork access

• Maintenance inspection points

• Commercial and residential installations

Key Features & Benefits

• 25mm Picture Frame for a clean, professional finish

• Metal faced door for durability and strength

• 3-point locking system as standard for secure closure

• Spring pin hinge system allows fast door removal

• Manufactured from Zintec steel for robust construction

• Powder coated RAL 9010 (30% gloss) for a durable white finish

• Designed for standard flexible wall constructions

• Walls only installation

• Other colours and lock options available on request

Technical Specification

Seals

This riser door does not include seals:

• Draught Seals – No

• Smoke Seals – No

• Air Seals – No

• Acoustic Seals – No

• Intumescent Seals – No

Testing

This product has not been tested for performance ratings:

• Fire Tested – No

• Acoustic Tested – No

• Air Pressure Tested – No

• Smoke Tested – No

Available Sizes

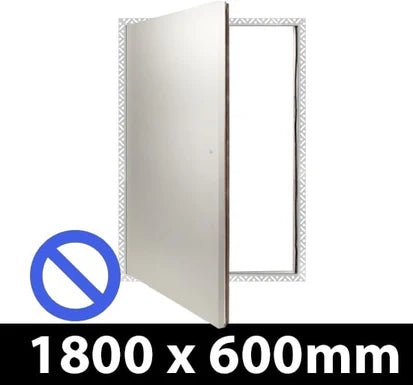

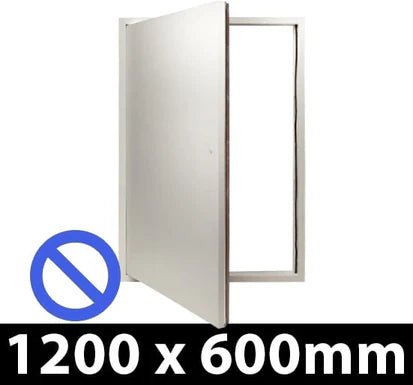

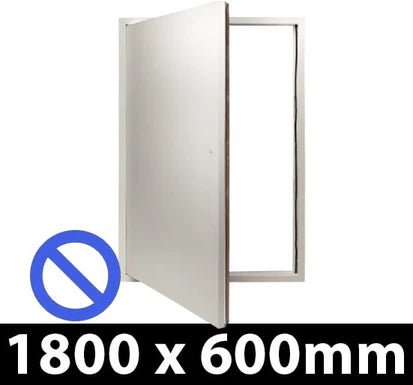

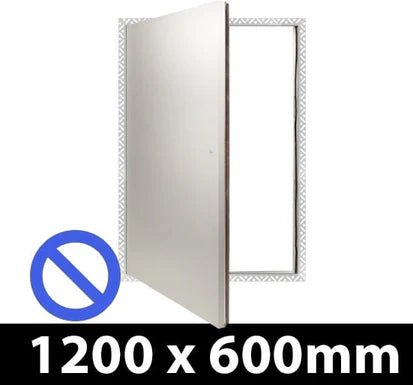

• 1200 x 600mm

• 1800 x 600mm

(First dimension denotes hinge side.)

Installation Guide

1. Open the door, release the spring pin hinge system, and lift the door out of the frame.

2. Place the frame into the structural aperture (which should be 7mm larger than the panel size) and mark hinge and door retaining pin positions.

3. Remove the frame and drill clearance holes for the marked positions.

4. Fix the frame into the aperture using all fixing holes, ensuring the frame is square and flush with the wall.

5. Refit the door by inserting the lower spring pin hinge, sliding the top hinge pin fully into place, and closing the door.

6. Lock the door with the key and ensure it sits flush with the frame.

Independent bracing or additional support may be required depending on the riser door weight.

Fixing Requirements

• 5mm diameter screws

• Minimum 50mm penetration into steel studs

Important Information

This product is made to order and is non-returnable. Orders cannot be cancelled once placed. Please confirm all dimensions and specifications before purchasing.
