Robur Hook And Eye Turnbuckle Aisi 316 M - 8206 M5
SKU WEB-082060206 Barcode 8014230635521
- Expert UK product support
- Authorised Beta distributor
- 30 day returns
Delivery & returns
Despatch times vary by item. Check the product-specific lead time shown on this page. Supplier-shipped and larger items may take longer.
Delivery options and transit times are shown at checkout. Transit time starts after despatch and excludes weekends and bank holidays unless the selected service states otherwise. Tracking is provided when available.
30 day returns on unused items in original packaging.
Description
Description
Overview

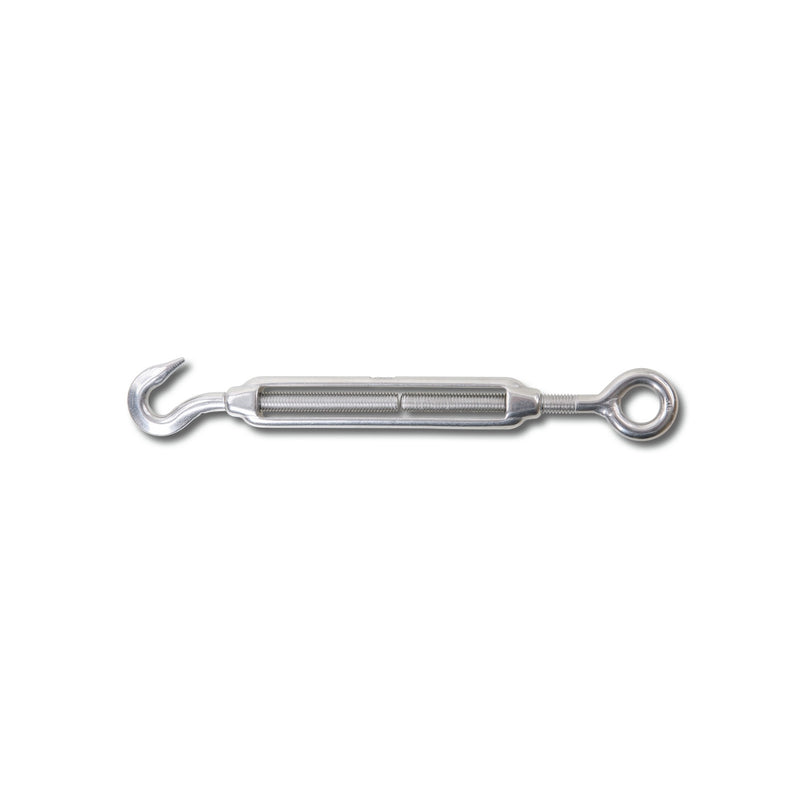

Beta Tools hook and eye turnbuckle AISI 316 M5 is a compact wire rope accessory designed for professional tensioning and adjustment work where dependable performance and corrosion resistance matter. Manufactured in AISI 316 stainless steel, this turnbuckle is suited to applications in maintenance, installation, rigging and exposed environments where moisture or aggressive conditions can affect service life. The hook and eye format allows straightforward connection in light-duty assemblies, helping tradespeople make fine adjustments to line tension and alignment. With an M5 variant size, 72 mm body dimension and 130 mm minimum length, it offers a practical balance of compact dimensions and usable adjustment range. Laboratory testing includes chemical analysis and tensile testing, and supporting technical product specifications are available together with a UNI EN10204 type 2.2 test report for added technical reference.
Features
- Provides reliable tensioning and adjustment for wire rope and light-duty fastening applications.
- Ensures good corrosion resistance through AISI 316 stainless steel construction.
- Supports straightforward installation with a practical hook and eye configuration.
- Delivers compact handling with M5 sizing for smaller assemblies and fittings.
- Offers a working load figure of 25 kg for suitable light-duty professional tasks.
- Withstands verification through laboratory chemical analysis and tensile testing.
- Enables use in maintenance, marine and general rigging environments.
- Improves product traceability with available technical specifications and UNI EN10204 type 2.2 test report.
Specifications
| SKU | 082060205 |
|---|---|
| Range/Series | 8206 |
| Product Type | Hook and eye turnbuckle |
| Size/Capacity | M5 |
| Length | L min 130 mm |
| Width | 15 mm (package) |
| Height | 10 mm (package) |
| Weight | 47 g |
| Material | AISI 316 stainless steel |
| Pieces | 10 |
| Standard(s) | UNI EN10204 type 2.2 test report available |
| Application | Wire rope tensioning, adjustment and light-duty fastening |
| A | M5 |
| B | 72 mm |
| F Diameter | 11 mm |
| WFL | 25 kg |
| BF | 120 kg |
