2 Hour Fire Rated Metal Single Riser Door with Smoke Seals

The 2 Hour Fire Rated Metal Single Riser Door provides secure access to concealed building services while helping maintain fire compartmentation within internal wall systems. Designed for use in service risers and vertical shafts, this metal riser door is fire rated from both sides and supplied with smoke seals, draught seals and intumescent seals as standard.

Ideal for multi-storey buildings, these riser doors help reduce the spread of fire and smoke through service voids while still allowing straightforward access for inspection and maintenance. Each unit is manufactured in the UK from robust steel and supplied with a 3-point locking system operated by a tee key for secure closure.

Available in both Picture Frame and Beaded Frame options, this product can be selected to suit your preferred installation finish. The picture frame version offers a clean, visible trim around the opening, while the beaded frame version is designed for a more flush plastered-in appearance.

Each panel is finished in RAL 9010 white polyester powder coating (30% gloss) as standard and is suitable for internal wall applications only.

Frame Options

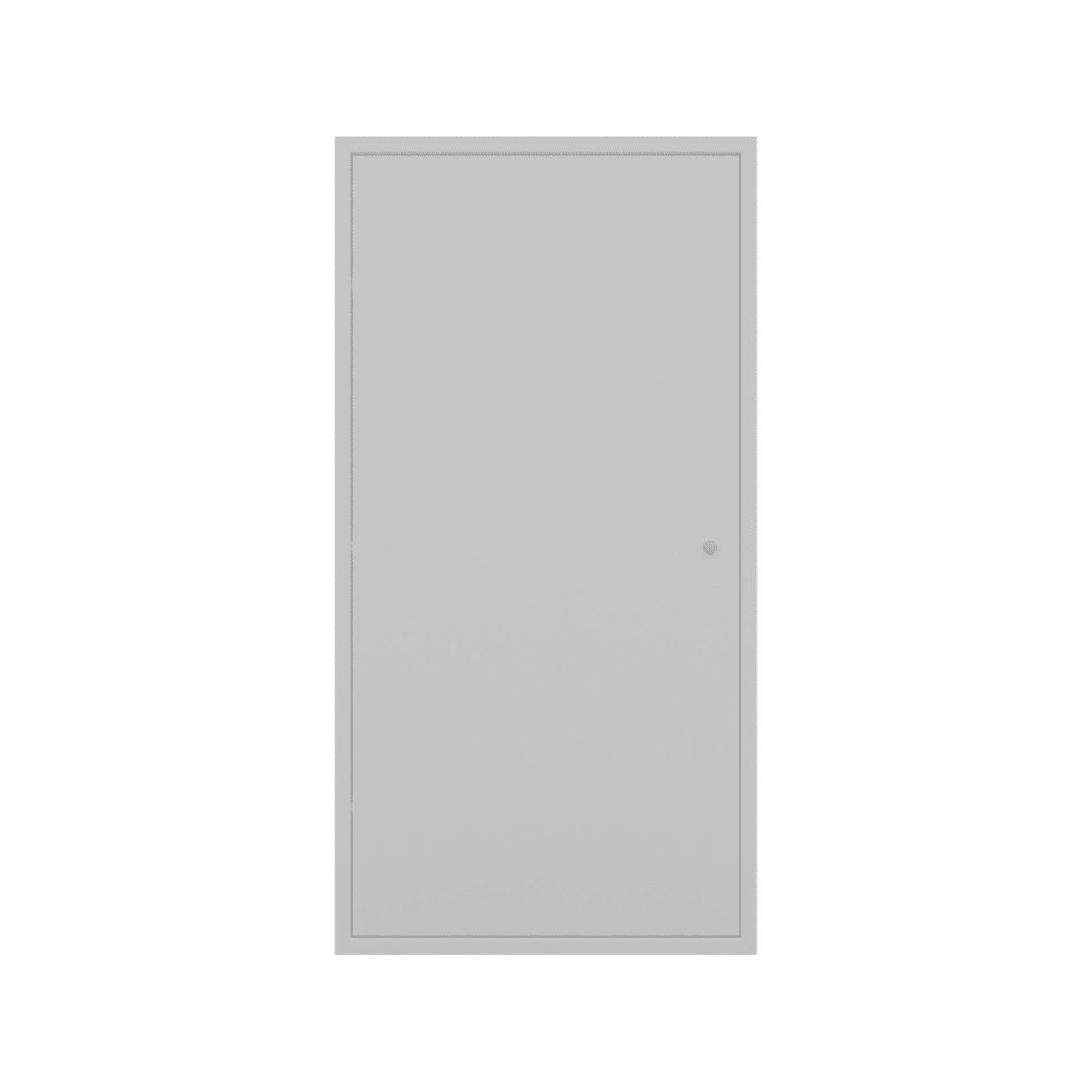

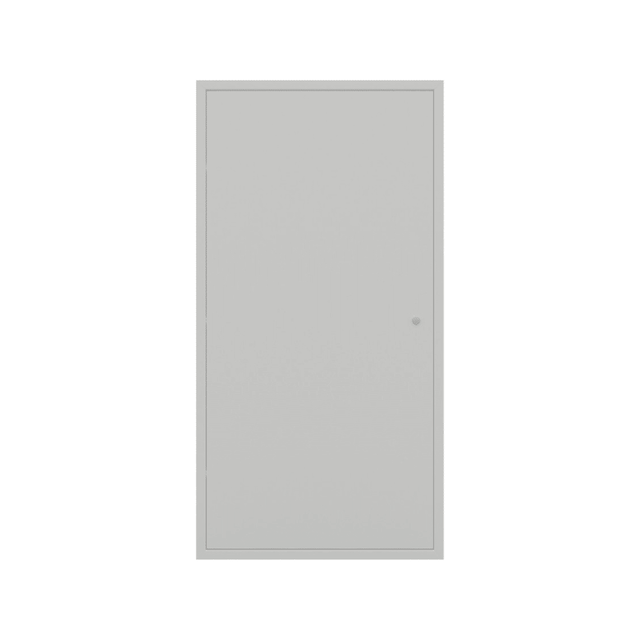

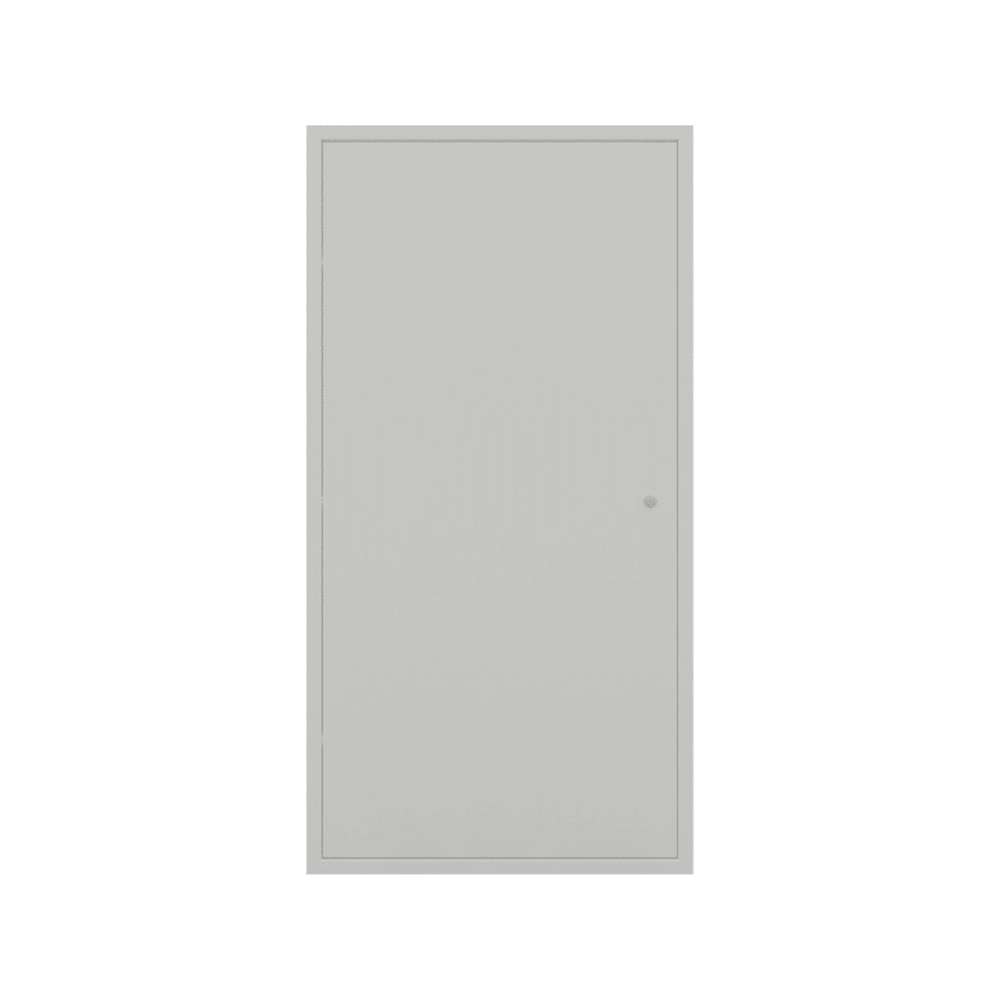

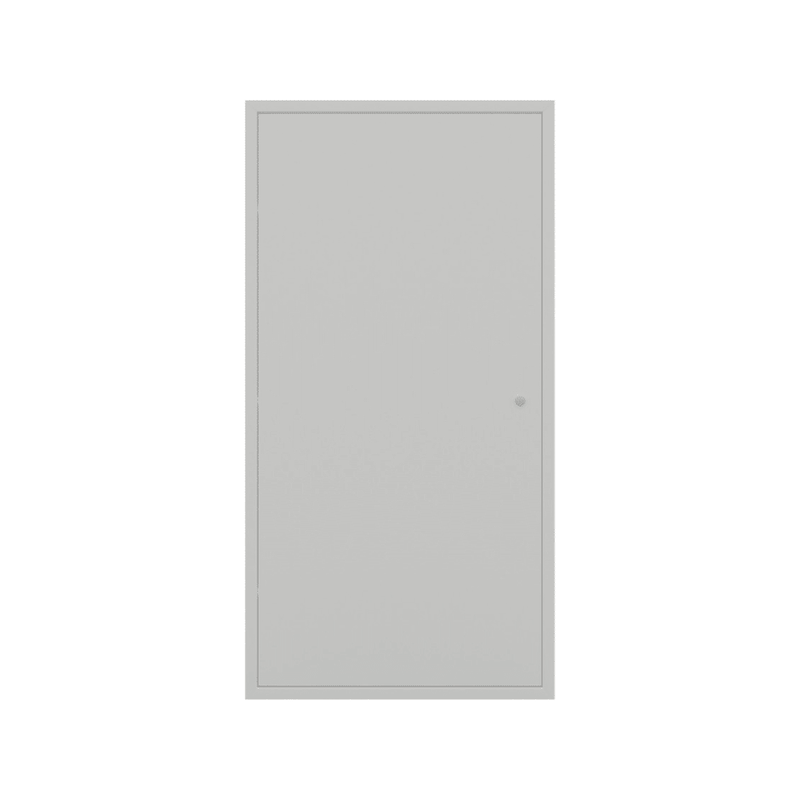

Picture Frame
The 25mm picture frame is designed to neatly cover rough structural openings and provide a clean, professional finish around the aperture.

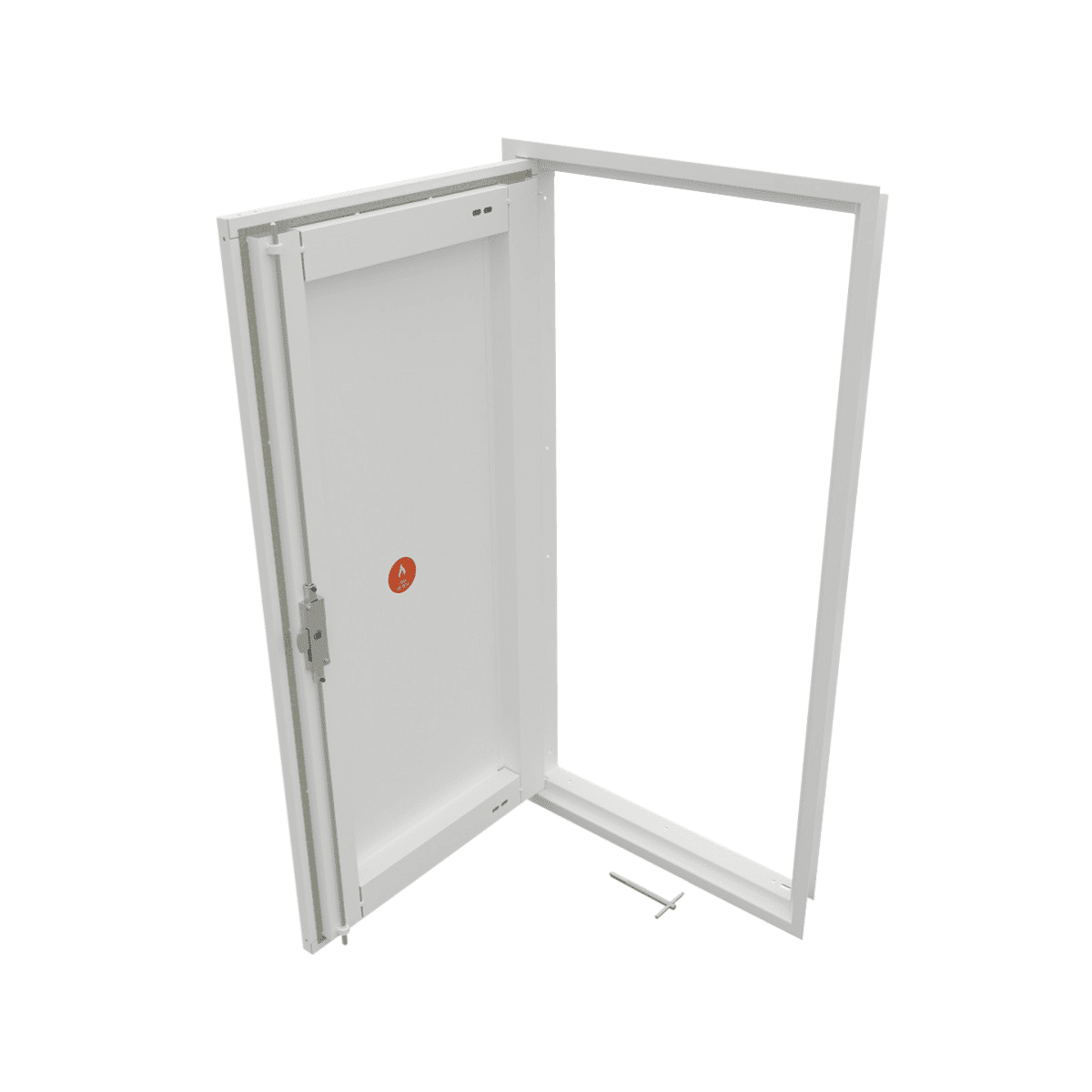

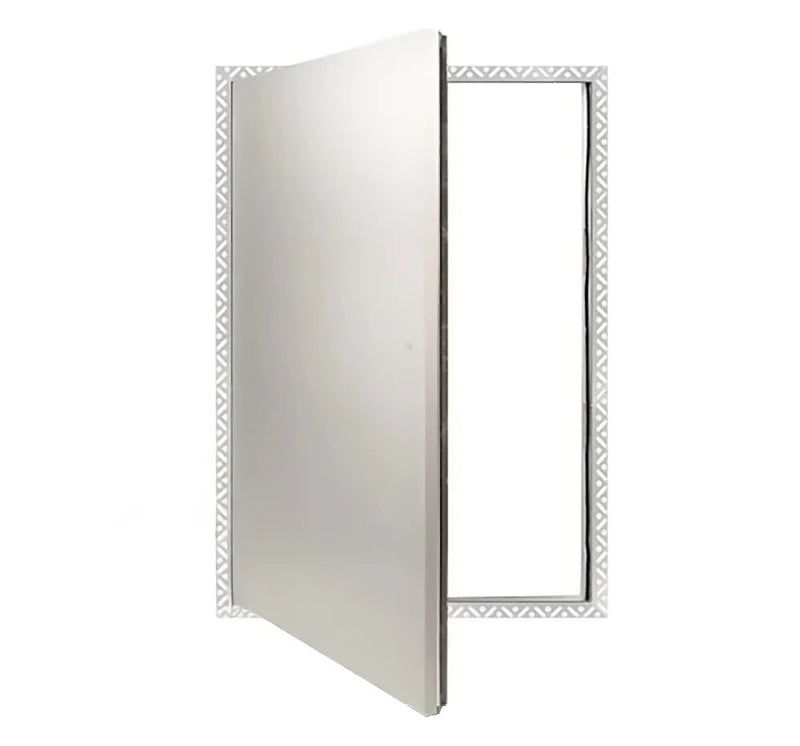

Beaded Frame
The beaded frame version is designed to be plastered into the wall for a more discreet finish, making it ideal where a flush appearance is preferred.

Key Features & Benefits

• 2 Hour Fire Rated (FR120)
• Fire rated from both sides
• Smoke sealed as standard
• Metal faced single door construction
• Choice of Picture Frame or Beaded Frame
• 3-point locking system supplied as standard
• Tee key included
• Rapid fit spring pin hinge system
• Powder coated RAL 9010 white (30% gloss)
• Manufactured in the UK
• Available in standard and bespoke sizes up to 2400 x 900mm

Construction

• Door leaf: 1.2mm steel
• Frame: 1.5mm steel
• Frame depth: 78mm
• Door type: Metal single door
• Locking system: 3-point locking mechanism
• Hinge system: Rapid fit spring pin hinge
• Finish: Polyester powder coated RAL 9010, 30% gloss

Fire & Smoke Performance

• 2 Hour Fire Rated
• Fire tested from both sides in wall applications
• Suitable for sizes up to 2400 x 900mm
• Smoke tested construction
• Supplied with draught seals, smoke seals and intumescent seals

Available Sizes

The first dimension stated is the hinge side.

• 900 x 600mm
• 900 x 900mm
• 1200 x 600mm
• 1200 x 900mm
• 1800 x 600mm
• 1800 x 900mm
• 2400 x 600mm
• 2400 x 900mm

Bespoke sizes are also available on request.

Installation Information

The structural opening must be 7mm larger than the panel size ordered to allow correct fitting tolerance.

The frame should be fixed securely within the prepared opening, ensuring it is square and flush before refitting the door and locking it into position.

Independent bracing or additional support may be required depending on the size and weight of the riser door.

Applications

These fire rated riser doors are commonly used for:

• Service risers in multi-storey buildings
• Plumbing and pipework access
• Electrical cabling and data services
• HVAC ductwork access
• Maintenance inspection points
• Commercial and residential developments

Important Information

• Suitable for internal wall installations only
• Not recommended for external use
• Made to order product therefore not eligible for return.
• Structural opening must be 7mm larger than the panel size
• Bespoke sizes and colour finishes available on request
