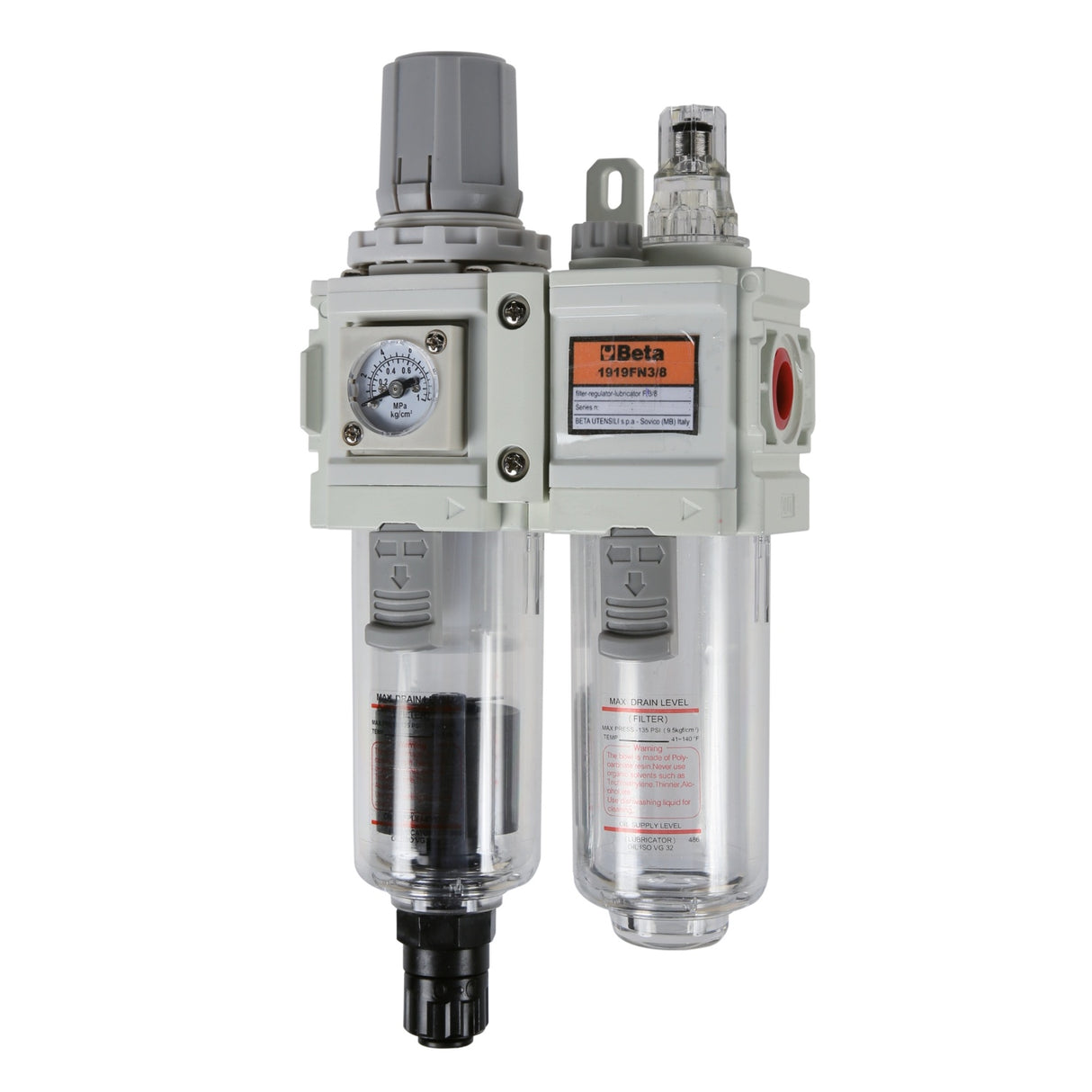

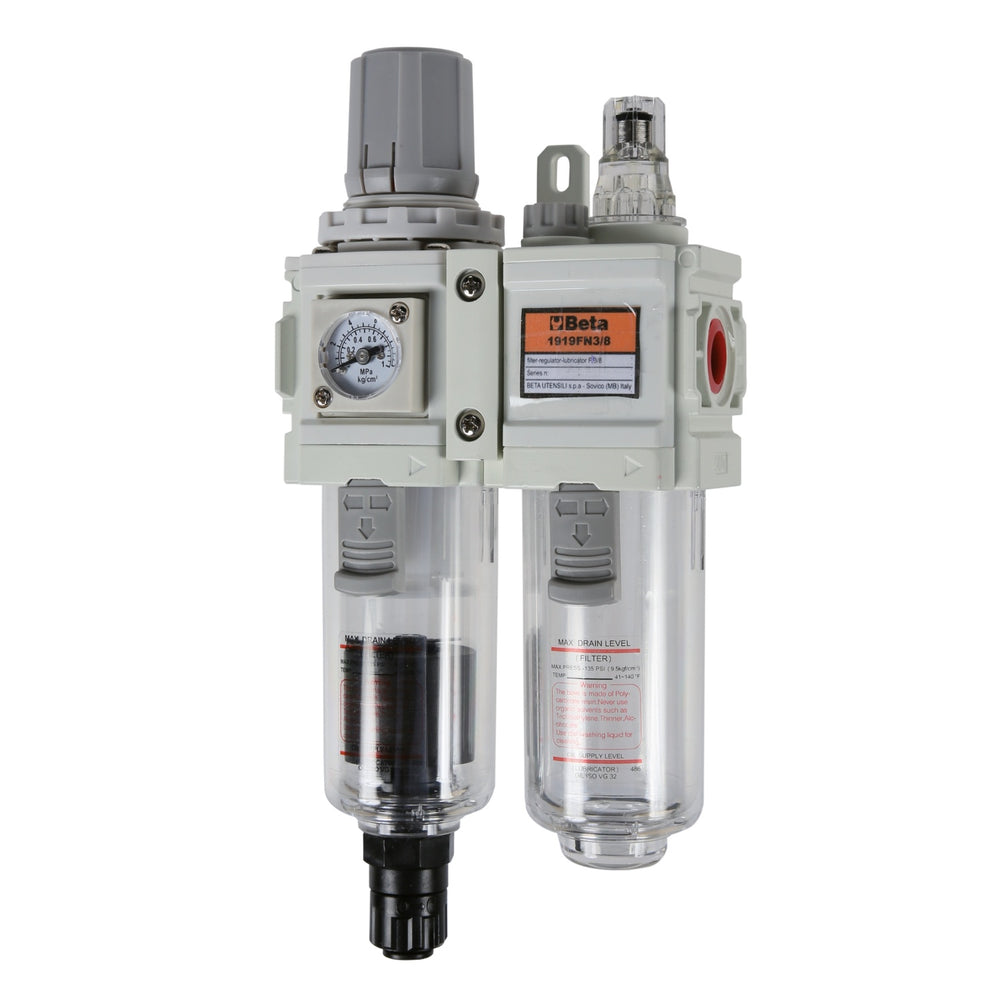

Beta Filter-Regulator Lubricator 3/8In Bspt - 1919FN3/8
SKU WEB-019190351 Barcode 8054809922829
Available to order from our supplier. Contact us to confirm quantities and lead times.
Pay in 3 interest-free with shopPay or PayPal
- Expert UK product support
- Authorised distributor
- 30 day returns
Delivery & returns
Despatch times vary by item. Check the product-specific lead time shown on this page. Supplier-shipped and larger items may take longer.
Delivery options and transit times are shown at checkout. Transit time starts after despatch and excludes weekends and bank holidays unless the selected service states otherwise. Tracking is provided when available.
30 day returns on unused items in original packaging.
Description
Description
Overview
Beta Tools filter-regulator lubricator is a modular pneumatic line accessory designed to prepare compressed air for professional workshop and maintenance use. Combining condensate separation, filtration, pressure regulation and lubrication in one assembly, it helps support consistent air supply to connected pneumatic tools and equipment. The unit includes a pressure regulator with locking device, an air/oil micro-fog mixer with intensity regulator, polycarbonate cups and a semiautomatic water exhaust valve for practical day-to-day servicing. A double graduated analogue pressure gauge shows readings in bar and psi for quick monitoring, while the supplied fixing support assists installation. With 3/8in GAS BSPT air inlets and outlets, maximum air capacity of 4000 l/min and a 5 micron filter capacity, this filter-regulator lubricator is suited to compressed air systems where controlled pressure, cleaner air and measured lubrication are required.
Features
- Provides combined filtration, regulation and lubrication in one modular pneumatic line unit.
- Ensures controlled pressure adjustment with a regulator fitted with a locking device.
- Delivers adjustable air/oil micro-fog lubrication through an intensity regulator.
- Reduces moisture carry-over with an integrated condensate separator-filter and semiautomatic water exhaust valve.
- Supports clear pressure monitoring with a double graduated analogue gauge in bar and psi.
- Withstands routine workshop use with practical polycarbonate cups.
- Enables installation into 3/8in GAS BSPT compressed air lines.
- Offers high flow performance with maximum air capacity up to 4000 l/min.
Specifications
| SKU | 019190351 |
|---|---|
| Range/Series | 1919FN3/8 |
| Product Type | Filter-regulator lubricator |
| Weight | 1.05 kg |
| Maximum Pressure | 10 bar |
| Material | Polycarbonate cups |
| Compatibility | 3/8in GAS BSPT air lines |
| Application | Pneumatic tools and compressed air line systems |
| Air In/Outlets | 3/8in GAS BSPT |
| Maximum Air Capacity | 4000 l/min |
| Operating Pressure | 0.5 - 8.5 bar |
| Operating Temperature | 5 - 60 °C |
| Filter Capacity | 5 microns |
| Cup Capacity | 80 cc air / 100 cc oil |
| Package Length | 260 mm |
| Package Width | 120 mm |
| Package Height | 80 mm |
| GTIN | 8054809922829 |
