Description
Description

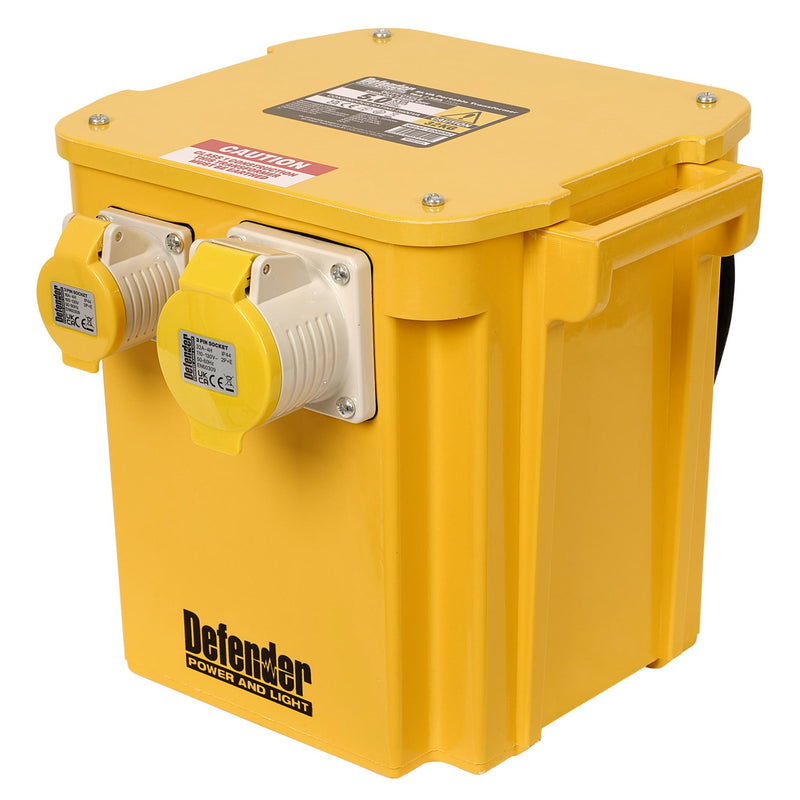

Popular transformer built for demanding construction tasks, where mains voltage needs stepping down and isolating. Tough GRP case with 2 x 16A and 1 x 32A 110V outlets. Resettable overload protection keeps tools and appliances safe while maximising work times. For use with larger industrial power tools, lighting and heaters. Centre tapped to earth for extra safety. Input mains lead with bare ends (no plug), for hardwiring or a connector of choice (max current 23A): 1) If using the transformer up to its 2.5kVA continuous rating, supply current needed is 12A, therefore fitting a 13A UK domestic plug is permissible; alternatively a 16A (230V) industrial plug. 2) If using the transformer up to its max 5.0kVA intermittent rating, supply current needed is 23A, which far exceeds 13A mains output - recommend 32A (230V) industrial plug (or other suitably rated plug); alternatively hard wire direct to a suitable fused spur electrical point. Duty cycle 5 mins on / 15 mins off. Ingress protection rating: IP44. Supplied with 1.8m cable. BSEN 61558-1 compliant. Dimensions: 280 x 315 x 355mm. Weight 31kg.
Features
- Tough GRP impact-resistant case
- Resettable thermal overload protection
- Centre-tapped to earth for additional safety
- Suitable for industrial power tools, site lighting
- Suitable for temporary site power applications
- BS EN 61558-1 compliant
- Supplied without plug
| Stock number | 36476 |
|---|---|
| SKU | DR-36476 |
| Output Voltage | 110V AC, 50Hz |
| Input Voltage: | 230–240V AC, 50/60Hz |
| Apparent Power (kVA) | 5kVA |
| Intermittent duty rated output | 5000VA (5.0kVA) |
| Continuous duty rated output | 2800VA (2.8kVA) |
| Rated Power Factor | 0.93 cos |
| Dimensions | 278 x 350 x 315mm |
| Weight | 32kg |
| Sockets | 2 × 16A, 1 × 32A 110V |
| Ingress Protection | IP44 |
Supplied contents
1 x 110V 5.0KVA Transformer 2 x 16A Socket 1 x 32A socket 1 x 1.8 m H07RN-F Black Rubber Cable, 3 x 2.5mm
12 months
