Description
Description

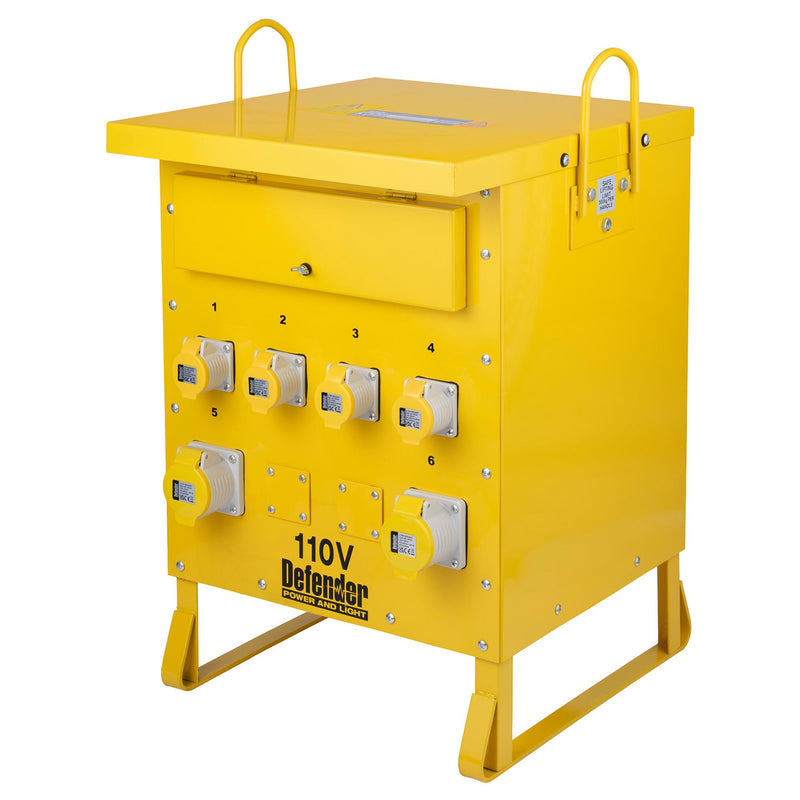

3-phase, heavy duty transformer with 4 x 16A and 2 x 32A 110V outlets. Hard-wearing steel enclosure. Elevated underside for improved access. Double wound with safety earth screen. Supplied without plug or cable. Intermittent rating 10000VA. Continuous rating 7000VA. Duty cycle 5 mins on / 15 mins off. Ingress protection rating: IP44. BSEN 61558-1 compliant. Dimensions: 775 x 515 x 800mm. Weight 80kg.
Features
- Robust powder-coated steel enclosure with lifting handles
- Three Phase Site Transformer
- Centre-tapped to earth for additional safety
- MCB Protection
- BS EN 61558-1 compliant
| Stock number | 34886 |
|---|---|
| SKU | DR-34886 |
| Input voltage | 400–415V AC, 50/60Hz |
| Output voltage | 110V AC, 50Hz |
| Weight | 80.5kg |
| Apparent Power | 10KVA |
| Intermittent Rating | 10000VA (10KVA) |
| Continuous Rating | 7000VA(7.0KVA |
| Sockets | 4 × 16A, 2 × 32A 110V |
| Ingress Protection | IP44 |
| Dimensions (W × D × H) | 655 × 485 × 410mm |
Supplied contents
1 x Defender ZE210027 110V 10kVA 3-Phase Transformer, 16A/32A 4 x 16A Socket 2 x 32A socket
