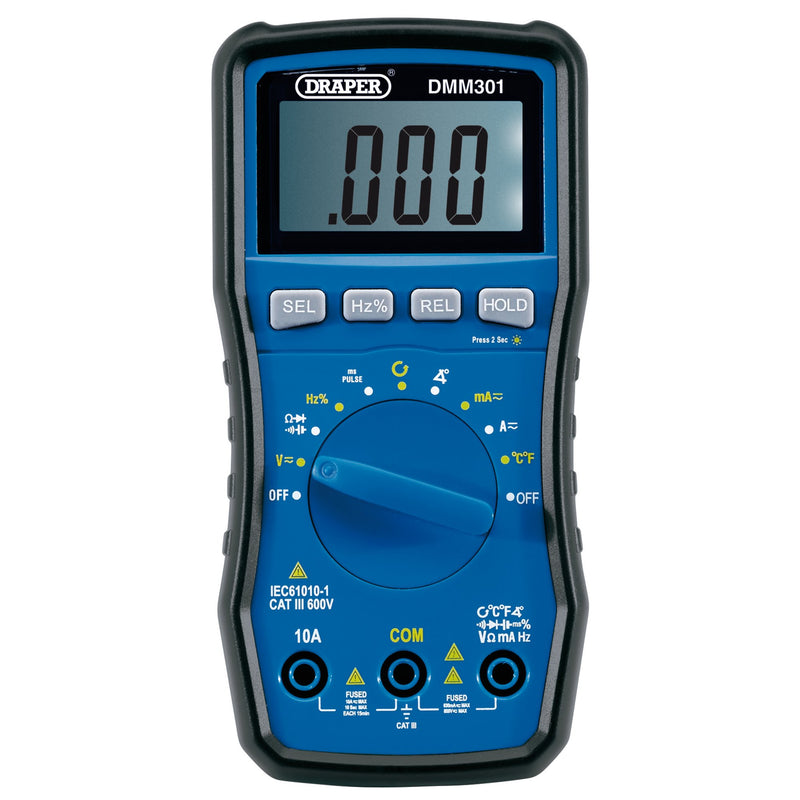

Draper Automotive Digital Multimeter, 1 x Temperature Probe, 1 x Inductive Clamp
SKU DR-41822 Barcode 5010559418220
50 available from our warehouse. Despatch times vary.
Pay in 3 interest-free with shopPay or PayPal
- Expert UK product support
- Authorised distributor
- 30 day returns
Delivery & returns
Despatch times vary by item. Check the product-specific lead time shown on this page. Supplier-shipped and larger items may take longer.
Delivery options and transit times are shown at checkout. Transit time starts after despatch and excludes weekends and bank holidays unless the selected service states otherwise. Tracking is provided when available.
30 day returns on unused items in original packaging.
Description
Description
Auto and manual ranging multimeter capable of voltage, current, resistance, diode, temperature and continuity testing. Fitted with a backlit LCD screen, DWELL, Tach, MAX, auto power off, continuity buzzer and data hold features. Supplied with test leads, temp probe, inductive clamp, case and 2x test probes.
Features
- Auto and manual ranging multimeter capable of voltage, current, resistance, diode, temperature and continuity testing
- Fitted with a backlit LCD screen, DWELL, Tach, MAX, auto power off, continuity buzzer and data hold features
- Supplied with test leads, temp probe, inductive clamp, and a case
| Stock number | 41822 |
|---|---|
| SKU | DR-41822 |
| Description | Multimeter |
| AC Amps | 6mA/600mA/6A/10A |
| AC Current | 60mA/600mA/6A/10A |
| AC Voltage | 6V/60V/600V |
| Automatic Power Off | Yes |
| Capacitance | 40nF/400nF/4µF/40µF/400µF/4000µF |
| DC Amps | 6mA/600mA/6A/10A |
| DC Current | 60mA/600mA/6A/10A |
| DC Voltage | 6V/60V/600V |
| Diode on/off Test | Yes |
| Dimensions | 184mm x 186mm x 72mm |
| Duty Ratio | Yes |
| Dwell | 4CYL, 6CYL, 8CYL |
| Frequency | 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz |
| Resistance (Ohms) | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ |
| Symbol Unit Data Hold | Yes |
| TACH | RPM4 120-20000, RPM2 60-20000 |
| Temperature | -20 to 1000ºC |
| Temperature Range | -20°C - 1000°C/-4°F - 1832°F |
| Weight | 507g (approx.) |
| Battery Type | 1 x PP3 9V (not supplied) |
Supplied contents
1 x Automotive Digital Multimeter, 1 x Temperature Probe, 1 x Inductive Clamp
12 months
