Draper Aluminium Oxide Bench Grinding Wheel
SKU DR-99564 Barcode 5010559995646
50 available from our warehouse. Despatch times vary.
- Expert UK product support
- Authorised distributor
- 30 day returns
Delivery & returns
Despatch times vary by item. Check the product-specific lead time shown on this page. Supplier-shipped and larger items may take longer.
Delivery options and transit times are shown at checkout. Transit time starts after despatch and excludes weekends and bank holidays unless the selected service states otherwise. Tracking is provided when available.
30 day returns on unused items in original packaging.
Description
Description
Specifications by model
Choose the specification above. Each model has its own stock number and supplied contents.

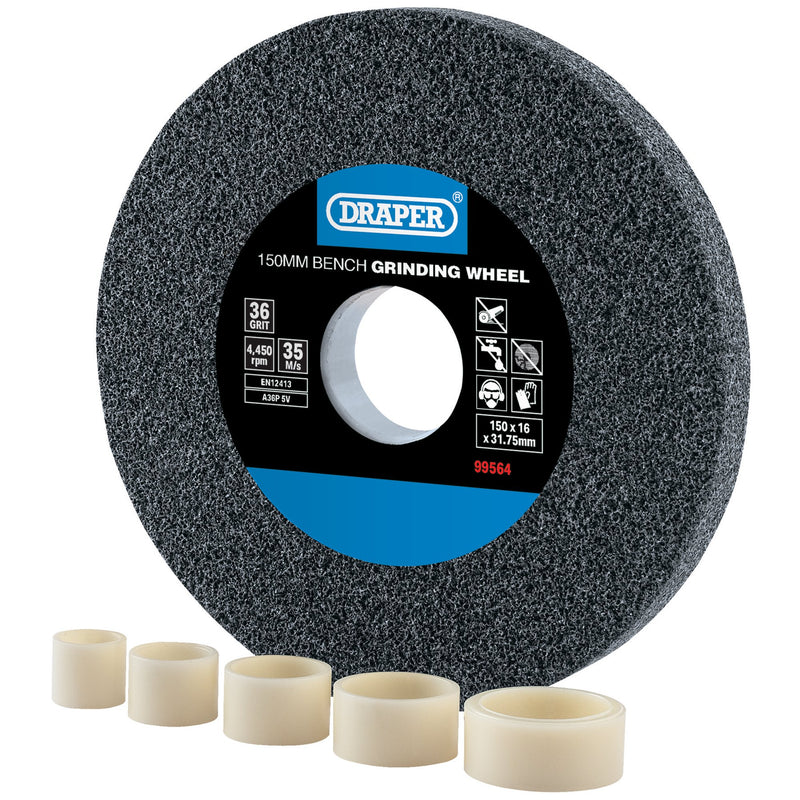

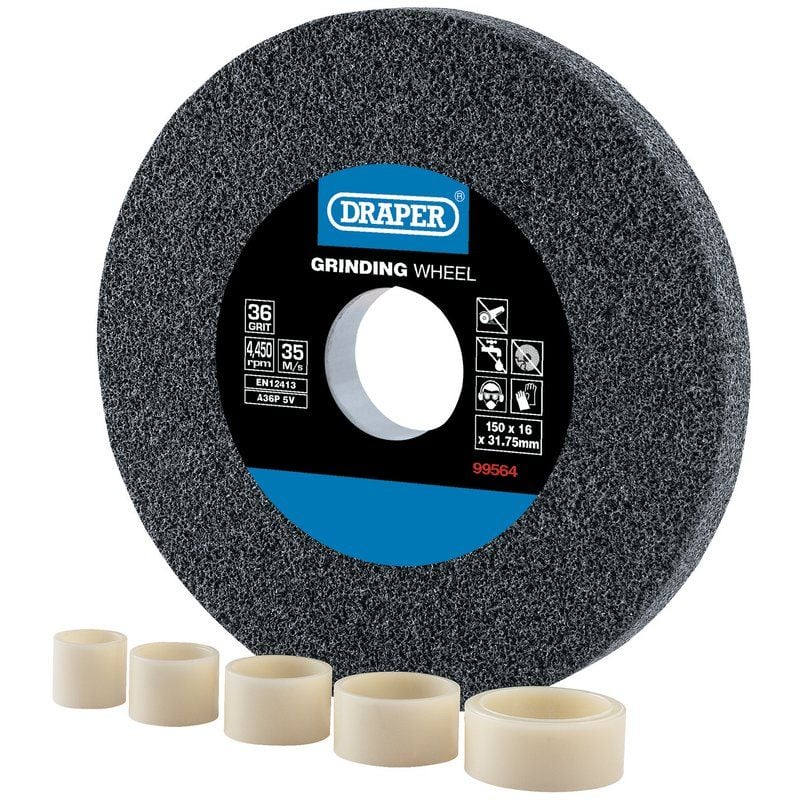

Aluminium Oxide Bench Grinding Wheel, 150 x 16mm, 36 Grit — DR-99564
A high-quality, hard-wearing aluminium oxide bench grinding wheel with coarse grit. Suitable for general grinding, deburring and tool sharpening on non-ferrous metals and steel. Dry-cutting use only. Manufactured with a 31.75mm bore and supplied with 5 reduction rings enabling each bench grinding wheel to fit most bench grinders with a bore size between 12.7 – 31.75mm. Compatible with Draper Bench Grinder.
| Stock number | 99564 |
|---|---|
| SKU | DR-99564 |
| Description | Bench Grinding Wheel |
| Size | 150 x 16mm |
| Grit Grade | 36 |
| Diameter | 150mm |
| Thickness | 16mm |
| Grit | 36G (Coarse) |
| Metres Per Second | 35m/s |
| Max Speed | 4,450rpm |
| Bore | 31.75mm |
| Reduction Ring Sizes | 25.40mm / 22.23mm / 19.05mm / 15.90mm / 12.70mm |
| Wheel Hardness | P |
| Approved Abrasive Wheel Marking Code | A36P 5V |
| Certification | EN12413 |
| Nett Weight | 0.63kg |
Supplied contents
1 x Aluminium Oxide Bench Grinding Wheel, 150 x 16mm, 36 Grit
Conforms to EN12413.
Consumable Warranty

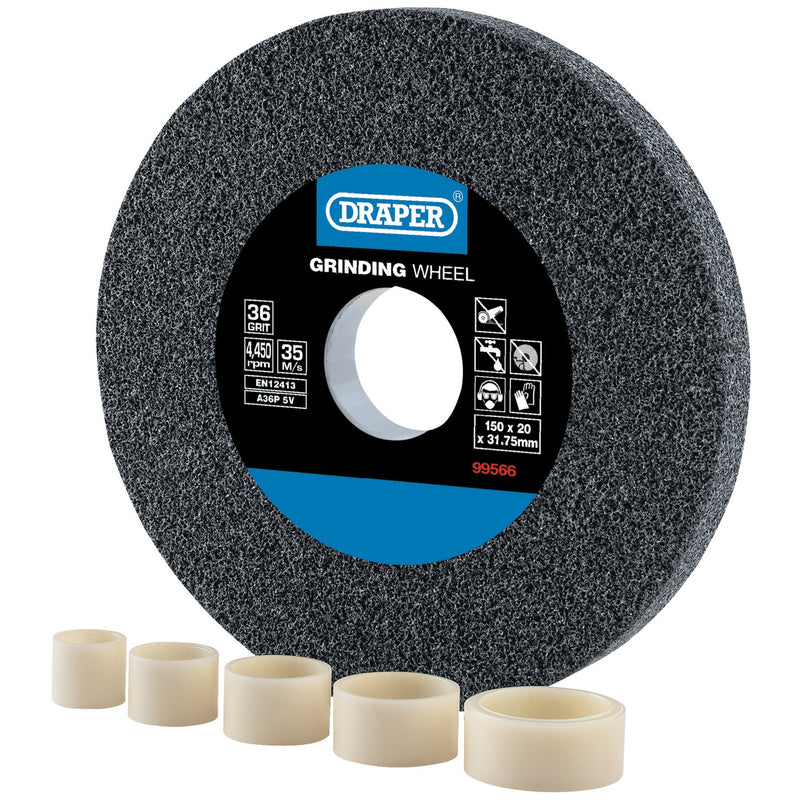

Aluminium Oxide Bench Grinding Wheel, 150 x 20mm, 36 Grit — DR-99566
A high-quality, hard-wearing aluminium oxide bench grinding wheel with coarse grit. Suitable for general grinding, deburring and tool sharpening on non-ferrous metals and steel. Manufactured with a 31.75mm bore and supplied with 5 reduction rings enabling each bench grinding wheel to fit most bench grinders with a bore size between 12.7 - 31.75mm. Compatible with 19mm and 20mm wheel face Draper Bench Grinders.
| Stock number | 99566 |
|---|---|
| SKU | DR-99566 |
| Description | Bench Grinding Wheel |
| Size | 150 x 20mm |
| Grit Grade | 36 |
| Diameter | 150mm |
| Thickness | 20mm |
| Grit | 36G (Coarse) |
| Metres Per Second | 35m/s |
| Max Speed | 4,450rpm |
| Bore | 31.75mm |
| Reduction Ring Sizes | 25.40mm / 22.23mm / 19.05mm / 15.90mm / 12.70mm |
| Wheel Hardness | P |
| Approved Abrasive Wheel Marking Code | A36P 5V |
| Certification | EN12413 |
| Nett Weight | 0.79kg |
Supplied contents
1 x Aluminium Oxide Bench Grinding Wheel, 150 x 20mm, 36 Grit
Conforms to EN12413
Consumable Warranty
Aluminium Oxide Bench Grinding Wheel, 150 x 16mm, 60 Grit — DR-99565
A high-quality, hard-wearing aluminium oxide bench grinding wheel with fine grit. Suitable for general grinding, deburring and tool sharpening on non-ferrous metals and steel. Dry-cutting use only. Manufactured with a 31.75mm bore and supplied with 5 reduction rings enabling each bench grinding wheel to fit most bench grinders with a bore size between 12.7 - 31.75mm. Compatible with Draper Bench Grinder.
| Stock number | 99565 |
|---|---|
| SKU | DR-99565 |
| Description | Bench Grinding Wheel |
| Size | 150 x 16mm |
| Grit Grade | 60 |
| Diameter | 150mm |
| Thickness | 16mm |
| Grit | 60G (Fine) |
| Metres Per Second | 35m/s |
| Max Speed | 4,450rpm |
| Bore | 31.75mm |
| Reduction Ring Sizes | 25.40mm / 22.23mm / 19.05mm / 15.90mm / 12.70mm |
| Wheel Hardness | M |
| Approved Abrasive Wheel Marking Code | A60M 5V |
| Certification | EN12413 |
| Nett Weight | 0.63kg |
Supplied contents
1 x Aluminium Oxide Bench Grinding Wheel, 150 x 16mm, 60 Grit
Conforms to EN12413.
Consumable Warranty

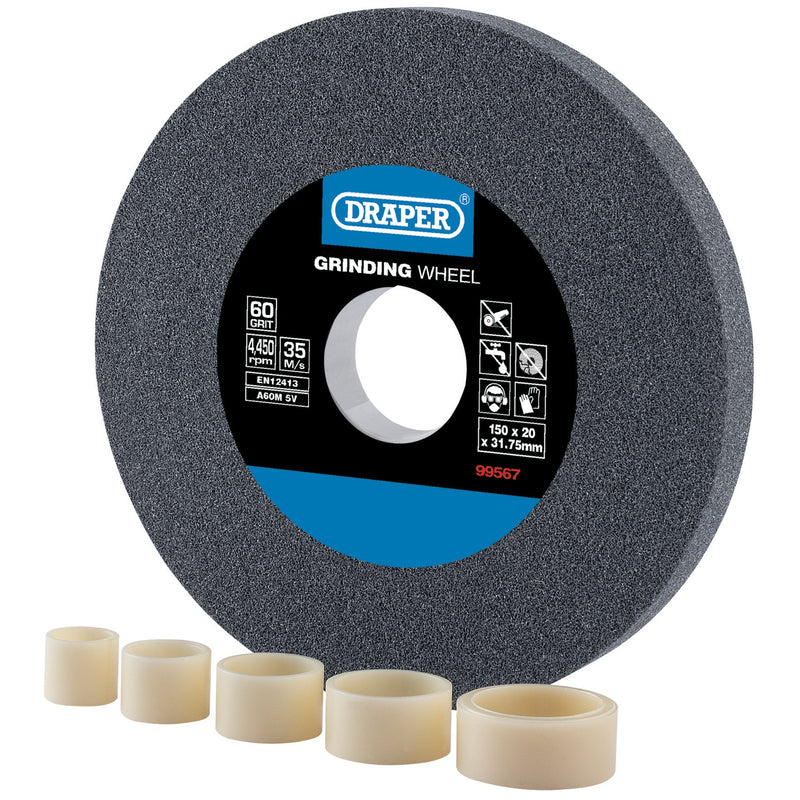

Aluminium Oxide Bench Grinding Wheel, 150 x 20mm, 60 Grit — DR-99567
A high-quality, hard-wearing aluminium oxide bench grinding wheel with fine grit. Suitable for general grinding, deburring and tool sharpening on non-ferrous metals and steel. Dry-cutting use only. Manufactured with a 31.75mm bore and supplied with 5 reduction rings enabling each bench grinding wheel to fit most bench grinders with a bore size between 12.7 - 31.75mm. Compatible with 19mm and 20mm wheel face Draper Bench Grinders.
| Stock number | 99567 |
|---|---|
| SKU | DR-99567 |
| Description | Bench Grinding Wheel |
| Size | 150 x 20mm |
| Grit Grade | 60 |
| Diameter | 150mm |
| Thickness | 20mm |
| Grit | 60G (Fine) |
| Metres Per Second | 35m/s |
| Max Speed | 4,450rpm |
| Bore | 31.75mm |
| Reduction Ring Sizes | 25.40mm / 22.23mm / 19.05mm / 15.90mm / 12.70mm |
| Wheel Hardness | M |
| Approved Abrasive Wheel Marking Code | A360M 5V |
| Certification | EN12413 |
| Nett Weight | 0.79kg |
Supplied contents
1 x Aluminium Oxide Bench Grinding Wheel, 150 x 20mm, 60 Grit
Conforms to EN12413.
Consumable Warranty
