Draper Metal Cutting Disc
SKU DR-94775 Barcode 5059482030949
50 available from our warehouse. Despatch times vary.
- Expert UK product support
- Authorised distributor
- 30 day returns
Delivery & returns
Despatch times vary by item. Check the product-specific lead time shown on this page. Supplier-shipped and larger items may take longer.
Delivery options and transit times are shown at checkout. Transit time starts after despatch and excludes weekends and bank holidays unless the selected service states otherwise. Tracking is provided when available.
30 day returns on unused items in original packaging.
Description
Description
Specifications by model
Choose the specification above. Each model has its own stock number and supplied contents.

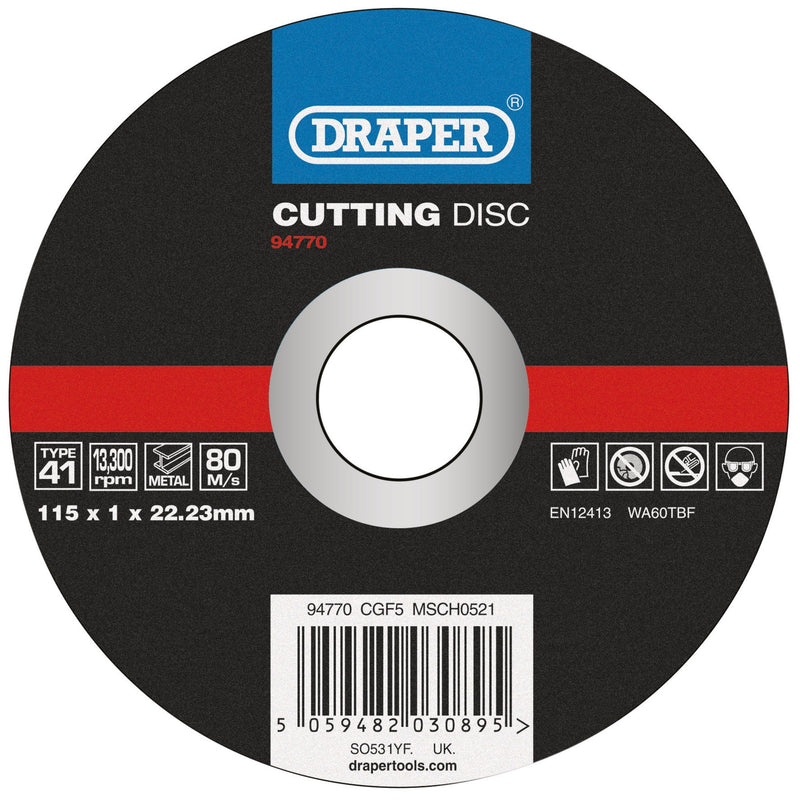

Metal Cutting Disc, 115 x 1 x 22.23mm — DR-94770
Flat cutting disc designed for fast straight cutting on various metal working applications including steel, structural steel and sheet metal. Manufactured from premium quality aluminium oxide, which has been resin bonded and reinforced with fibreglass to improve the strength and performance of the disc. Ultra-thin 1mm disc for rapid efficient cutting. The bore has a stainless-steel ring to allow the cutting disc to be safely mounted onto the machine. Compatible with 115mm angle grinders with a 22.23mm bore. Manufactured to EN12413 standards.
| Stock number | 94770 |
|---|---|
| SKU | DR-94770 |
| Diameter | 115mm |
| Bore | 22.23mm |
| Thickness | 1mm |
| Max speed | 13,300rpm |
| Bore size | 22.23mm |
| Cutting speed | 80m/s |
| Maximum speed | 13300rpm |
| Profile | Type 41 |
| Certification | EN12413 |
Supplied contents
1 x Metal Cutting Disc, 115 x 1 x 22.23mm
Manufactured to EN12413 standards
Consumable Warranty

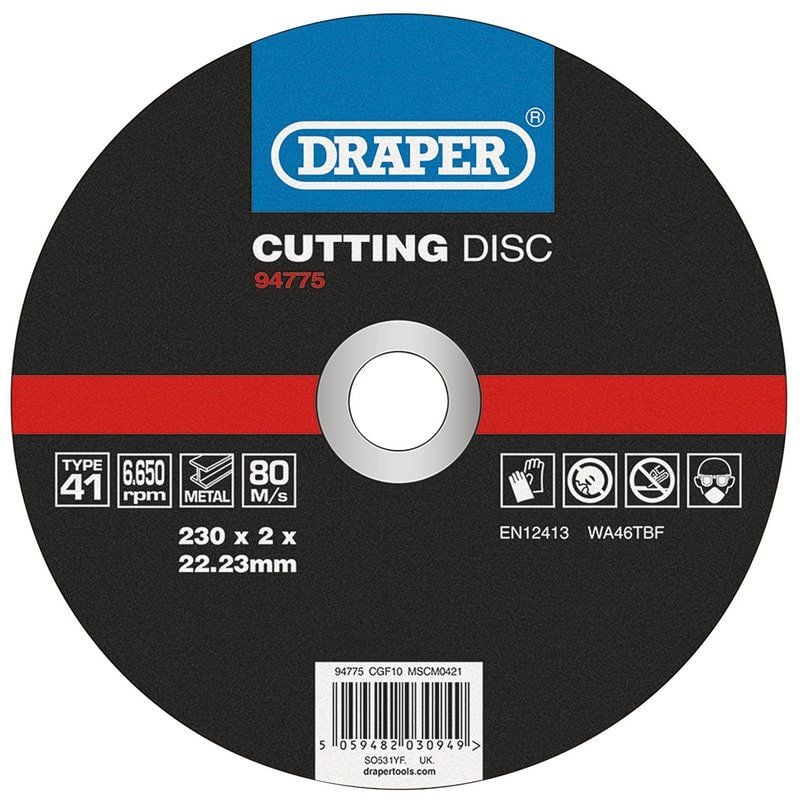

Metal Cutting Disc, 230 x 2 x 22.23mm — DR-94775
Flat cutting disc designed for fast straight cutting on various metal working applications including steel, structural steel and sheet metal. Manufactured from premium quality aluminium oxide, which has been resin bonded and reinforced with fibreglass to improve the strength and performance of the disc. Ultra-thin 2mm disc for rapid efficient cutting. The bore has a stainless-steel ring to allow the cutting disc to be safely mounted onto the machine. Compatible with 230mm angle grinders with a 22.23mm bore. Manufactured to EN12413 standards.
| Stock number | 94775 |
|---|---|
| SKU | DR-94775 |
| Diameter | 230mm |
| Bore | 22.23mm |
| Thickness | 2mm |
| Max speed | 6,650rpm |
| Bore size | 22.23mm |
| Cutting speed | 80m/s |
| Maximum speed | 6650rpm |
| Profile | Type 41 |
| Certification | EN12413 |
Supplied contents
1 x Metal Cutting Disc, 230 x 2 x 22.23mm
Manufactured to EN12413 standards
Consumable Warranty
Additional models
Specifications by model
Choose the specification above. Each model has its own stock number and supplied contents.

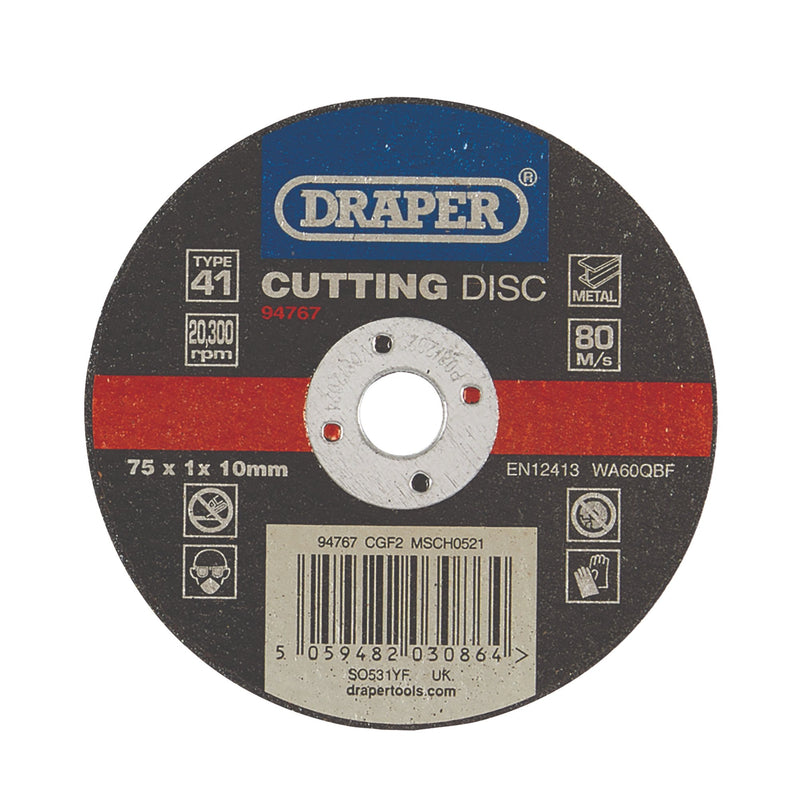

Metal Cutting Disc, 75 x 1 x 10mm — DR-94767
Flat cutting disc designed for fast straight cutting on various metal working applications including steel, structural steel and sheet metal. Manufactured from premium quality aluminium oxide, which has been resin bonded and reinforced with fibreglass to improve the strength and performance of the disc. Ultra-thin 1mm disc for rapid efficient cutting. The bore has a stainless-steel ring to allow the cutting disc to be safely mounted onto the machine. Compatible with 75mm angle grinders and cut-off tools with a 10mm bore. Manufactured to EN12413 standards.
| Stock number | 94767 |
|---|---|
| SKU | DR-94767 |
| Diameter | 75mm |
| Bore | 10mm |
| Thickness | 1mm |
| Max speed | 20,300rpm |
| Bore size | 10mm |
| Cutting speed | 80m/s |
| Maximum speed | 20300rpm |
| Profile | Type 41 |
| Certification | EN12413 |
Supplied contents
1 x Metal Cutting Disc, 75 x 1 x 10mm
Manufactured to EN12413 standards
Consumable Warranty

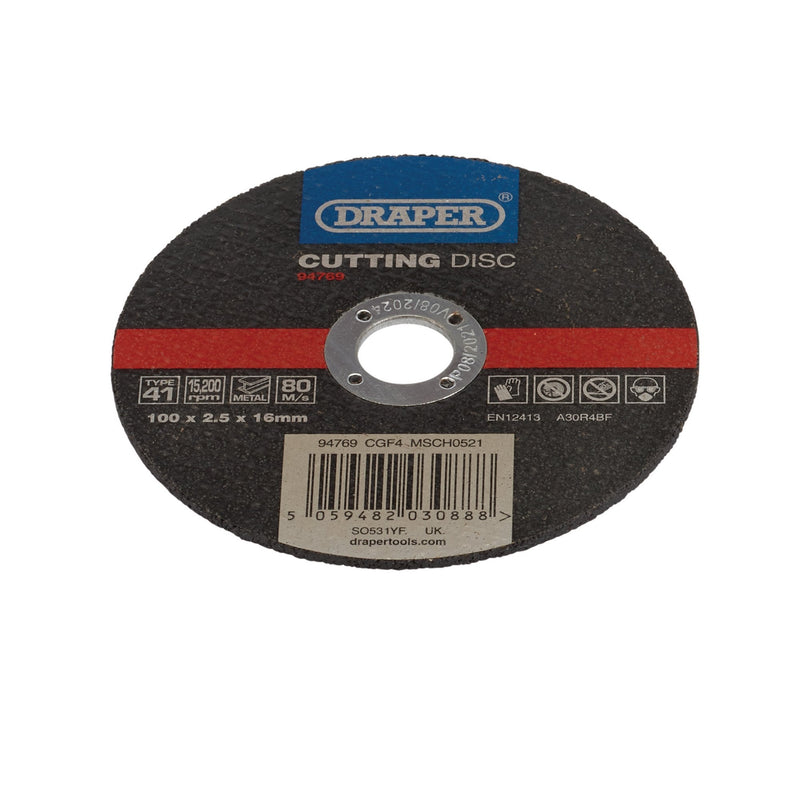

Metal Cutting Disc, 100 x 2.5 x 16mm — DR-94769
Flat cutting disc designed for fast straight cutting on various metal working applications including steel, structural steel and sheet metal. Manufactured from premium quality aluminium oxide, which has been resin bonded and reinforced with fibreglass to improve the strength and performance of the disc. The bore has a stainless-steel ring to allow the cutting disc to be safely mounted onto the machine. Compatible with 100mm air angle grinders with a 16mm bore. Manufactured to EN12413 standards.
| Stock number | 94769 |
|---|---|
| SKU | DR-94769 |
| Diameter | 100mm |
| Bore | 16mm |
| Thickness | 2.5mm |
| Max speed | 15,200rpm |
| Bore size | 16mm |
| Cutting speed | 80m/s |
| Maximum speed | 15200rpm |
| Profile | Type 41 |
| Certification | EN12413 |
Supplied contents
1 x Metal Cutting Disc, 100 x 2.5 x 16mm
Manufactured to EN12413 standards
Consumable Warranty

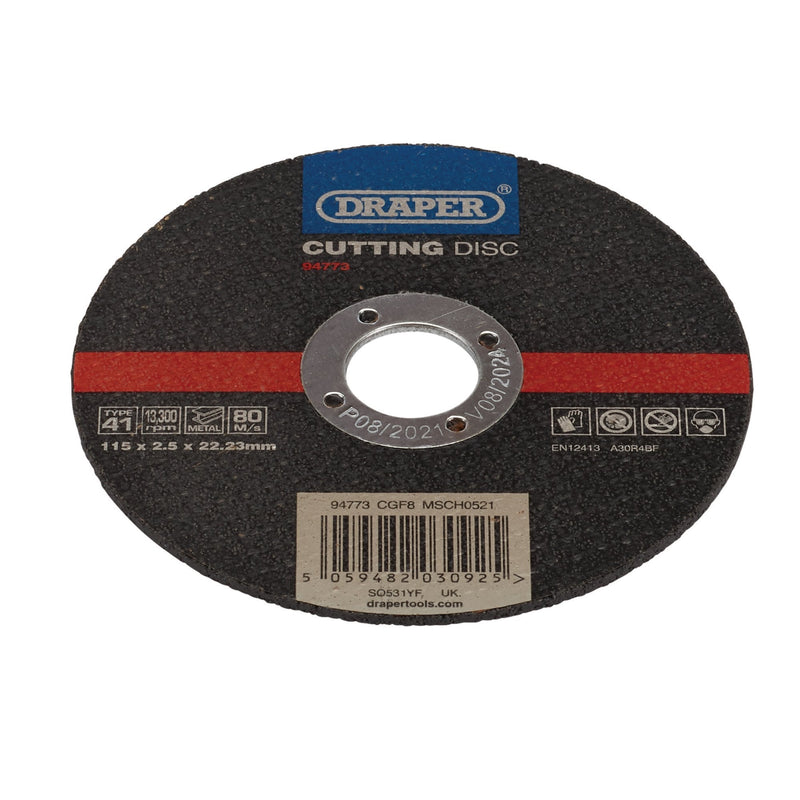

Metal Cutting Disc, 115 x 2.5 x 22.23mm — DR-94773
Flat cutting disc designed for fast straight cutting on various metal working applications including steel, structural steel and sheet metal. Manufactured from premium quality aluminium oxide, which has been resin bonded and reinforced with fibreglass to improve the strength and performance of the disc. The bore has a stainless-steel ring to allow the cutting disc to be safely mounted onto the machine. Compatible with 115mm angle grinders with a 22.23mm bore. Manufactured to EN12413 standards.
| Stock number | 94773 |
|---|---|
| SKU | DR-94773 |
| Diameter | 115mm |
| Bore | 22.23mm |
| Thickness | 2.5mm |
| Max speed | 13,300rpm |
| Bore size | 22.23mm |
| Cutting speed | 80m/s |
| Maximum speed | 13300rpm |
| Profile | Type 41 |
| Certification | EN12413 |
Supplied contents
1 x Metal Cutting Disc, 115 x 2.5 x 22.23mm
Manufactured to EN12413 standards
Consumable Warranty

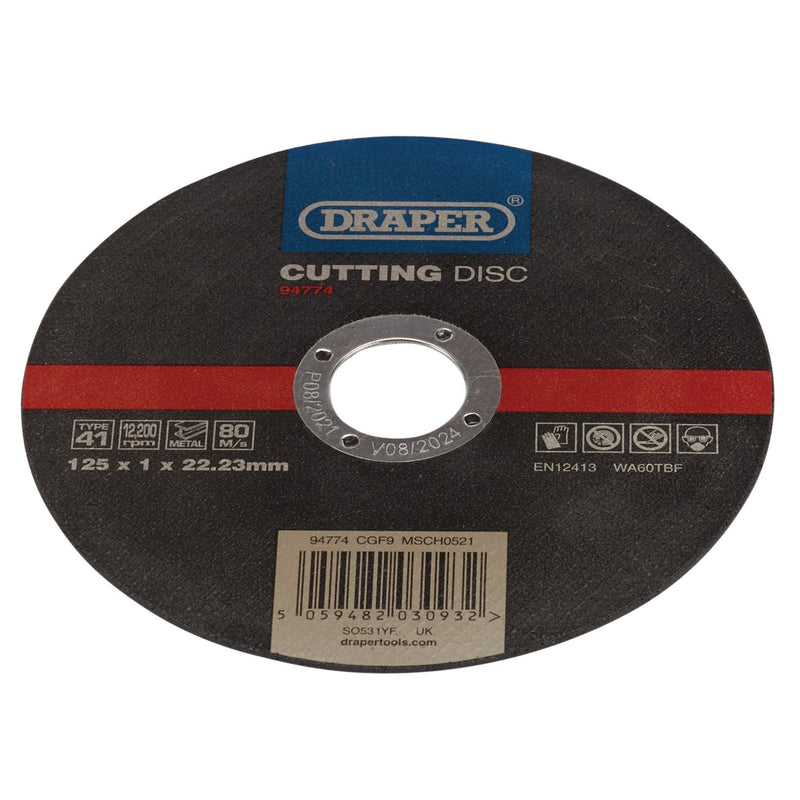

Metal Cutting Disc, 125 x 1 x 22.23mm — DR-94774
A flat cutting disc designed for fast straight cutting in various metalworking applications, including steel, structural steel and sheet metal. Manufactured from premium-quality aluminium oxide that has been resin bonded and reinforced with fibreglass to improve the strength and performance of the disc. The bore has a stainless-steel ring to allow the cutting disc to be safely mounted onto the machine. Compatible with 125mm grinders with a 22.23mm bore.
| Stock number | 94774 |
|---|---|
| SKU | DR-94774 |
| Diameter | 125mm |
| Bore | 22.23mm |
| Thickness | 1mm |
| Cutting speed | 80m/s |
| Maximum speed | 12,200rpm |
| Profile | T-41 |
| Certification | EN12413 |
| Approved abrasive wheel marking code | WA60TBF |
| Weight | 0.03kg |
Supplied contents
1 x Metal Cutting Disc, 125 x 1 x 22.23mm
Manufactured to EN12413 standards
Consumable Warranty

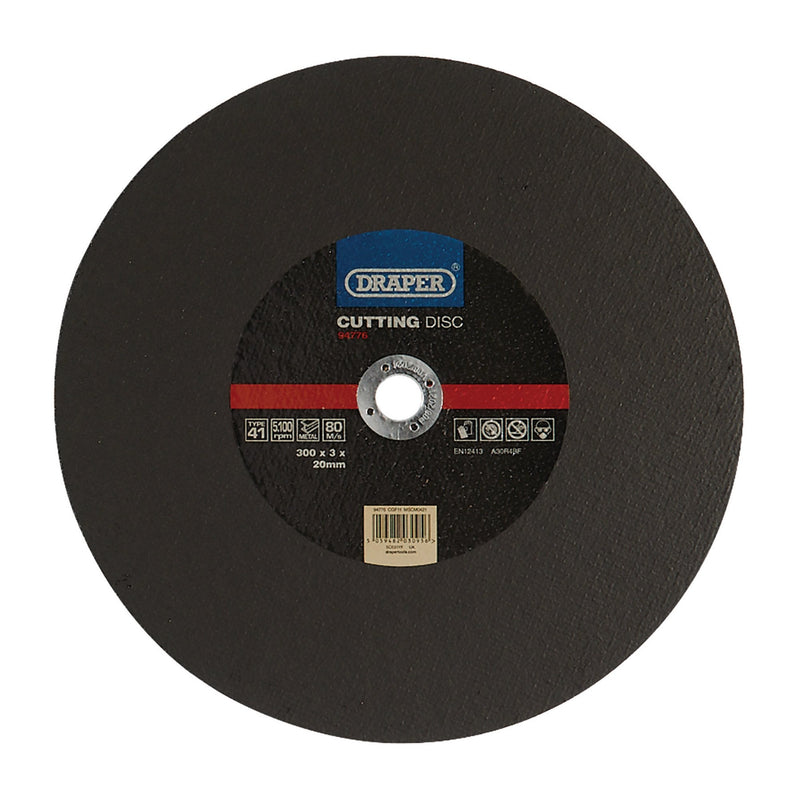

Metal Cutting Disc, 300 x 3 x 20mm — DR-94776
Flat cutting disc designed for fast straight cutting on various metal working applications including steel, structural steel and sheet metal. Manufactured from premium quality aluminium oxide, which has been resin bonded and reinforced with fibreglass to improve the strength and performance of the disc. The bore has a stainless-steel ring to allow the cutting disc to be safely mounted onto the machine. Compatible with 300mm chop saws and petrol cut-off saws with a 20mm bore. Manufactured to EN12413 standards.
| Stock number | 94776 |
|---|---|
| SKU | DR-94776 |
| Diameter | 300mm |
| Bore | 20mm |
| Thickness | 3mm |
| Max speed | 5,100rpm |
| Bore size | 20mm |
| Cutting speed | 80m/s |
| Maximum speed | 5100rpm |
| Profile | Type 41 |
| Certification | EN12413 |
Supplied contents
1 x Metal Cutting Disc, 300 x 3 x 20mm
Manufactured to EN12413 standards
Consumable Warranty

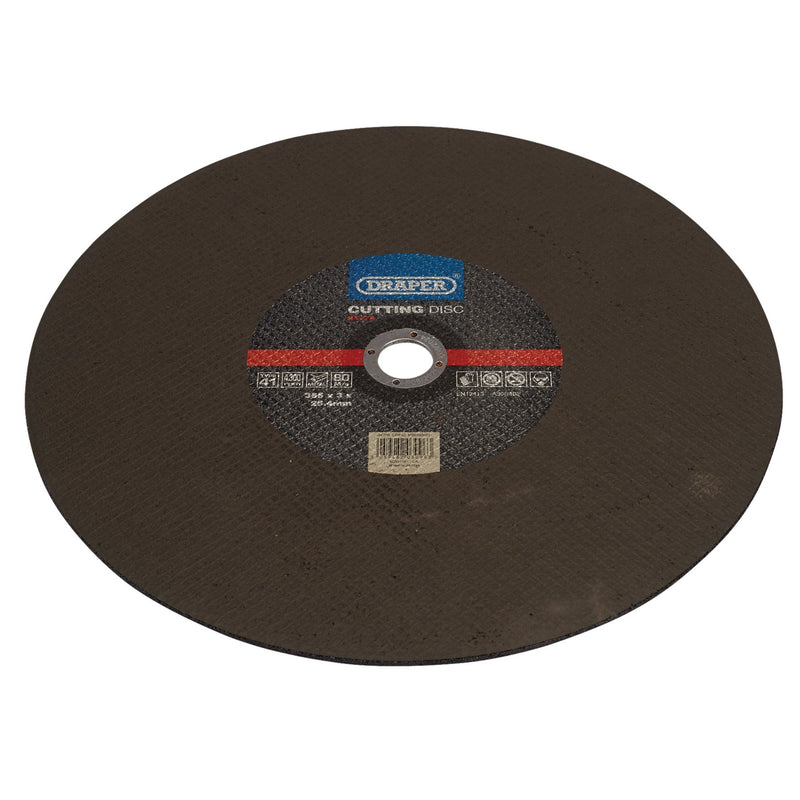

Metal Cutting Disc, 355 x 3 x 25.4mm — DR-94778
Flat cutting disc designed for fast straight cutting on various metal working applications including steel, structural steel and sheet metal. Manufactured from premium quality aluminium oxide, which has been resin bonded and reinforced with fibreglass to improve the strength and performance of the disc. The bore has a stainless-steel ring to allow the cutting disc to be safely mounted onto the machine. Compatible with 355mm chop saws and petrol cut-off saws with a 25.4mm bore. Manufactured to EN12413 standards.
| Stock number | 94778 |
|---|---|
| SKU | DR-94778 |
| Diameter | 355mm |
| Bore | 25.4mm |
| Thickness | 3mm |
| Max speed | 4,300rpm |
| Bore size | 25.4mm |
| Cutting speed | 80m/s |
| Maximum speed | 4300rpm |
| Prolife | Type 41 |
| Certification | EN12413 |
Supplied contents
1 x Metal Cutting Disc, 355 x 3 x 25.4mm
Manufactured to EN12413 standards
Consumable Warranty
