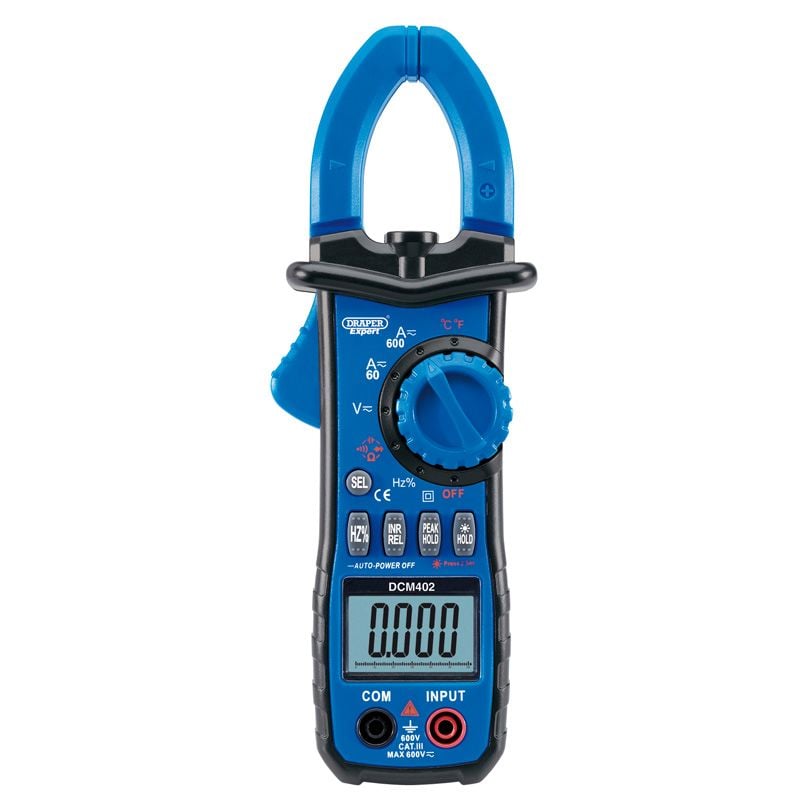

Draper DCM402 Auto-Ranging Digital Clamp Meter with Linear Bar Graph Function - (41967)
SKU DR-41967 Barcode 5010559419678
Pay in 3 interest-free with shopPay or PayPal
- Expert UK product support
- Authorised Draper distributor
- 30 day returns
Delivery & returns
Despatch times vary by item. Check the product-specific lead time shown on this page. Supplier-shipped and larger items may take longer.
Delivery options and transit times are shown at checkout. Transit time starts after despatch and excludes weekends and bank holidays unless the selected service states otherwise. Tracking is provided when available.
30 day returns on unused items in original packaging.
Description
Description
Draper Expert Auto/Manual Ranging Clamp Meter
The Draper Expert Auto/Manual Ranging Clamp Meter, available from Trade Counter Direct, is a versatile diagnostic tool designed for professional electricians and engineers. This clamp meter provides comprehensive measurement capabilities, including voltage, current, resistance, and more, making it an essential addition to any toolkit. Its robust construction and advanced features ensure reliable performance for a wide range of electrical testing applications.
Equipped with both auto and manual ranging functions, this clamp meter delivers precise readings across multiple parameters. The device features a backlit LCD screen for clear visibility in low-light conditions and is supplied complete with test leads, a temperature probe, a protective case, and batteries, ensuring you have everything needed for immediate use.
Features
- Measures AC/DC voltage and current, resistance, capacitance, frequency, duty cycle, diode, continuity, and temperature
- Auto and manual ranging for flexible operation
- Maximum jaw opening diameter of 36 mm for versatile clamping
- Backlit LCD screen for enhanced readability
- Automatic power off function to conserve battery life
- Linear bar graph display for quick visual reference
- Integrated inspection light for improved visibility in dark areas
- Supplied with test leads, temperature probe, protective case, and 3 x AAA batteries
Specifications
| SKU | Not specified |
|---|---|
| Range/Series | Expert |
| Power | 3 x AAA batteries (supplied) |
| AC Current | 60 A / 600 A |
| DC Current | 60 A / 600 A |
| AC Voltage | 6 V / 60 V / 600 V |
| DC Voltage | 600 mV / 6 V / 60 V / 600 V |
| Resistance | 6000 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ |
| Capacitance | 999 nF / 99.99 nF / 999.9 nF / 9.999 μF / 99.99 μF / 999.9 μF / 9.999 mF / 99.99 mF |
| Frequency | 100 Hz / 1,000 Hz / 10 kHz / 100 kHz / 1 MHz / 10 MHz |
| Temperature Range | -50 °C to 1000 °C / -58 °F to 1832 °F |
| Jaw Opening | 36 mm |
| Dimensions | 228 mm x 158 mm x 58 mm |
| Weight | Approx. 400 g |
| Diode Test | Yes |
| Continuity Test | Yes |
| Automatic Power Off | Yes |
| Kit Contents | Test leads, temperature probe, case, 3 x AAA batteries |
