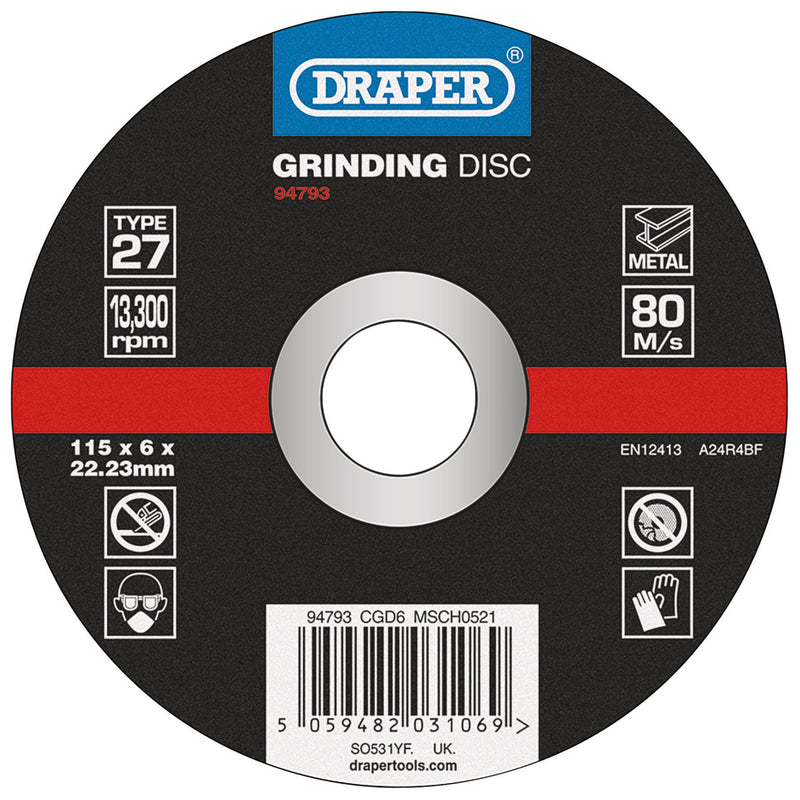

Draper DPC Metal Grinding Disc
SKU DR-94793 Barcode 5059482031069
50 available from our warehouse. Despatch times vary.
- Expert UK product support
- Authorised distributor
- 30 day returns
Delivery & returns
Despatch times vary by item. Check the product-specific lead time shown on this page. Supplier-shipped and larger items may take longer.
Delivery options and transit times are shown at checkout. Transit time starts after despatch and excludes weekends and bank holidays unless the selected service states otherwise. Tracking is provided when available.
30 day returns on unused items in original packaging.
Description
Description
Depressed Centre (DPC) grinding disc designed for grinding on various metal working applications including steel, structural steel and sheet metal. Manufactured from premium quality aluminium oxide, which has been resin bonded and reinforced with fibreglass to improve the strength and performance of the disc. The bore has a stainless-steel ring to allow the cutting disc to be safely mounted onto the machine. Compatible with 115mm angle grinders with a 22.23mm bore. Manufactured to EN12413 standards.
Features
- Designed for grinding various metals including steel, structural steel and sheet metal
- Made from premium quality aluminium oxide, which has been resin bonded and reinforced with fibreglass
- Compatible with 115mm angle grinders with a 22.23mm bore
- Manufactured to EN12413 standards
| Stock number | 94793 |
|---|---|
| SKU | DR-94793 |
| Size | 115mm |
| Bore | 22.23mm |
| Thickness | 6mm |
| Diameter | 115mm |
| Bore size | 22.23mm |
| Cutting speed | 80m/s |
| Max speed | 13300rpm |
| Profile | Type 27 |
| Certification | EN12413 |
Supplied contents
1 x DPC Grinding Disc, 115 x 6 x 22.23mm
Manufactured to EN12413 standards
Consumable Warranty
Additional models
Specifications by model
Choose the specification above. Each model has its own stock number and supplied contents.

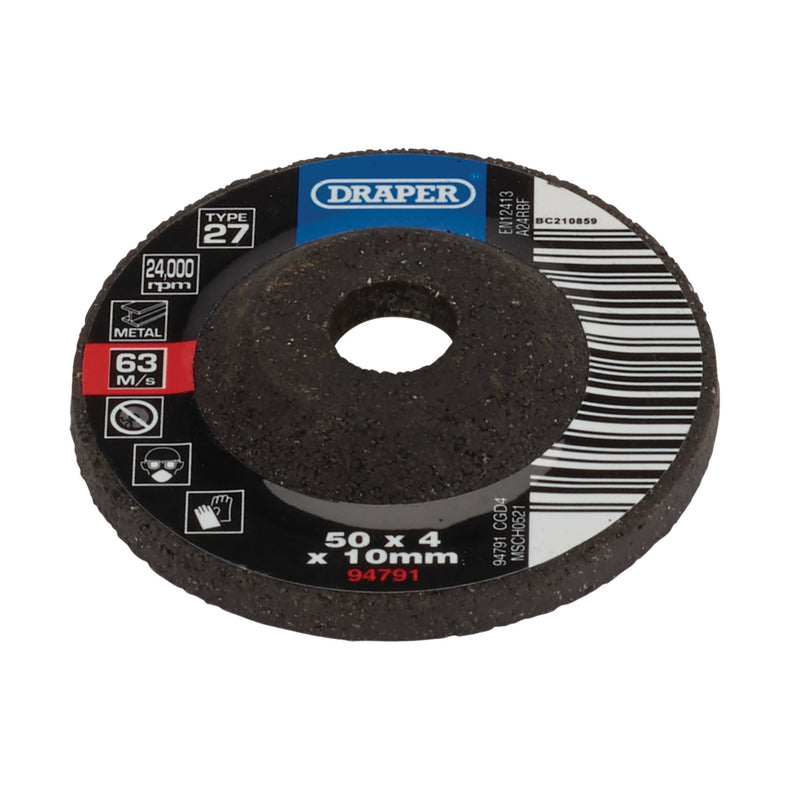

DPC Metal Grinding Disc, 50 x 4 x 10mm — DR-94791
A depressed centre (DPC) grinding disc designed for grinding on various metalworking applications, including steel, structural steel and sheet metal. Manufactured from premium-quality aluminium oxide that has been resin bonded and reinforced with fibreglass to improve the strength and performance of the disc. The bore has a stainless-steel ring to allow the cutting disc to be safely mounted onto the machine. Compatible with 50mm grinders and cut-off tools with a 10mm bore.
| Stock number | 94791 |
|---|---|
| SKU | DR-94791 |
| Size | 50mm |
| Bore | 10mm |
| Thickness | 4mm |
| Diameter | 50mm |
| Cutting speed | 63m/s |
| Maximum speed | 24,000rpm |
| Profile | Type 27 |
| Certification | EN12413 |
| Approved Abrasive Wheel Marking Code | A24RBF |
| Weight | 0.024kg |
Supplied contents
1 x DPC Metal Grinding Disc, 50 x 4 x 10mm
Manufactured to EN12413 standards
Consumable Warranty

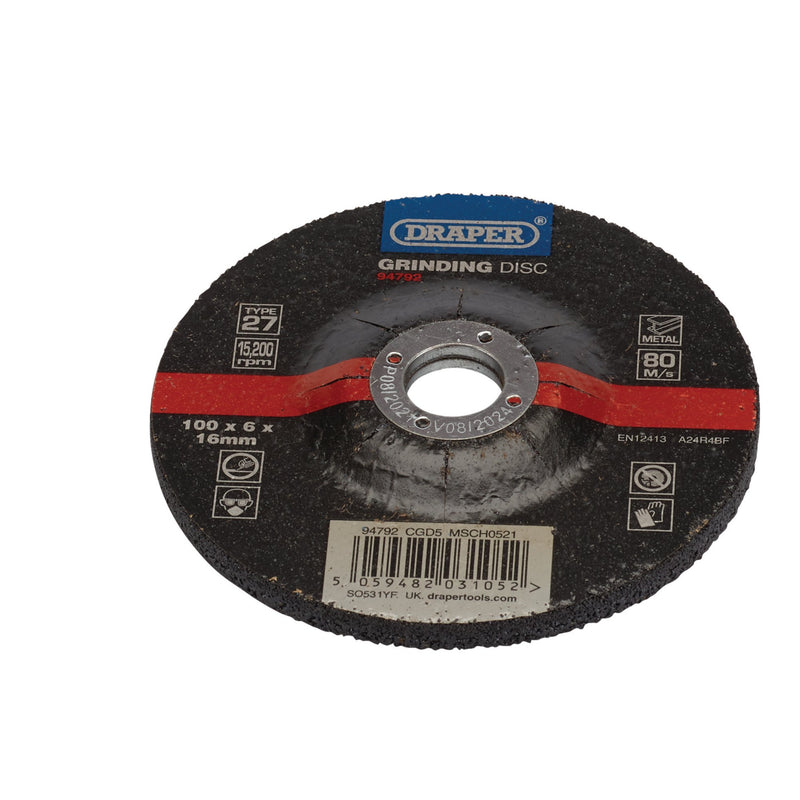

DPC Metal Grinding Disc, 100 x 6 x 16mm — DR-94792
Depressed Centre (DPC) grinding disc designed for grinding on various metal working applications including steel, structural steel and sheet metal. Manufactured from premium quality aluminium oxide, which has been resin bonded and reinforced with fibreglass to improve the strength and performance of the disc. The bore has a stainless-steel ring to allow the cutting disc to be safely mounted onto the machine. Compatible with 100mm air angle grinders with a 16mm bore. Manufactured to EN12413 standards.
| Stock number | 94792 |
|---|---|
| SKU | DR-94792 |
| Size | 100mm |
| Bore | 16mm |
| Thickness | 6mm |
| Max speed | 15200rpm |
| Diameter | 100mm |
| Bore size | 16mm |
| Cutting speed | 80m/s |
| Maximum speed | 15200rpm |
| Profile | Type 27 |
| Certification | EN12413 |
Supplied contents
1 x DPC Grinding Disc, 100 x 6 x 16mm
Manufactured to EN12413 standards
Consumable Warranty
