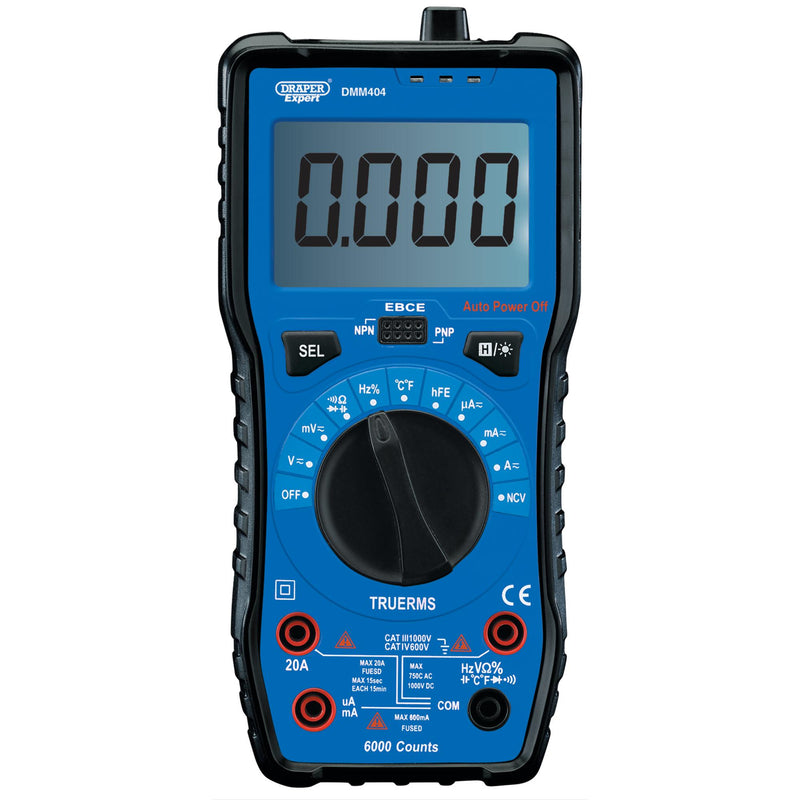

Draper Expert Auto & Manual Ranging Digital Multimeter
SKU DR-92433 Barcode 5010559924332
50 available from our warehouse. Despatch times vary.
- Expert UK product support
- Authorised distributor
- 30 day returns
Delivery & returns
Despatch times vary by item. Check the product-specific lead time shown on this page. Supplier-shipped and larger items may take longer.
Delivery options and transit times are shown at checkout. Transit time starts after despatch and excludes weekends and bank holidays unless the selected service states otherwise. Tracking is provided when available.
30 day returns on unused items in original packaging.
Description
Description
Auto - ranging CAT IV multimeter. Equipped with a high - performance MCU processor for more accurate measurements. Capable of DC voltage, AC voltage sine RMS, DC current, AC current sine RMS, resistance, capacitance, frequency, duty ratio, diode on/off test, symbol unit data hold and automatic power - off functions. Fitted with a large LCD backlit display screen, an NCV (Non - contact voltage) sensor and inspection light. An essential tool for electrical and industrial applications, especially useful for electricians, maintenance engineers, construction workers and electric vehicle technicians working on modern hybrid and electric vehicles. Supplied with a carry case.
Features
- Large LCD backlit display screen
- Supplied with probes, battery, bump cover and storage case
- Auto-ranging CAT IV multimeter
- High-performance MCU processor
- Capable of DC voltage, AC voltage sine RMS, DC current, AC current sine RMS, resistance, capacitance, frequency, duty ratio, diode on/off test, symbol unit data hold and automatic power-off functions
- NCV (Non-contact voltage) sensor
- Inspection light
- An essential tool for electrical and industrial applications, especially useful for electricians, maintenance engineers, construction workers and electric vehicle technicians working on modern hybrid and electric vehicles
- Supplied with a carry case
| Stock number | 92433 |
|---|---|
| SKU | DR-92433 |
| AC Current | 60uA/600uA/6000uA/60mA/600mA/20A |
| AC Voltage | 600mV/6V/60V/600V/750V |
| Automatic Power Off | Yes |
| Capacitance | 9.999nF/99.99nF/999.9nF/9.999µF/99.99µF/999.9µF/9.999mF/99.99mF |
| DC Current | 60uA/600uA/6000uA/60mA/600mA/20A |
| DC Voltage | 600mV/6V/60V/600V/0.1V/1000V |
| Diode on/off Test | Yes |
| Dimensions | 190mm x 90mm x 50mm |
| Duty Ratio | Yes |
| Dwell | N/A |
| Frequency | 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz |
| Resistance (Ohms) | 6000Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ |
| Symbol Unit Data Hold | Yes |
| TACH | N/A |
| Temperature Range | -20°C - 1000°C/-4°F - 1832°F |
| Weight | 380g (approx.) |
| Battery Type | 1 x PP3 9V (not supplied) |
Supplied contents
1 x Bump cover with probe storage 1 x Set of CAT IV 600V CAT III 1000V 20amp probes 1 x Magnetic hang strap 1 x Temp probe 1 x Storage case
12 months
