Draper Expert Hydraulic Bottle Jack
SKU DR-99766 Barcode 5059482000836
50 available from our warehouse. Despatch times vary.
- Expert UK product support
- Authorised distributor
- 30 day returns
Delivery & returns
Despatch times vary by item. Check the product-specific lead time shown on this page. Supplier-shipped and larger items may take longer.
Delivery options and transit times are shown at checkout. Transit time starts after despatch and excludes weekends and bank holidays unless the selected service states otherwise. Tracking is provided when available.
30 day returns on unused items in original packaging.
Description
Description
Specifications by model
Choose the specification above. Each model has its own stock number and supplied contents.

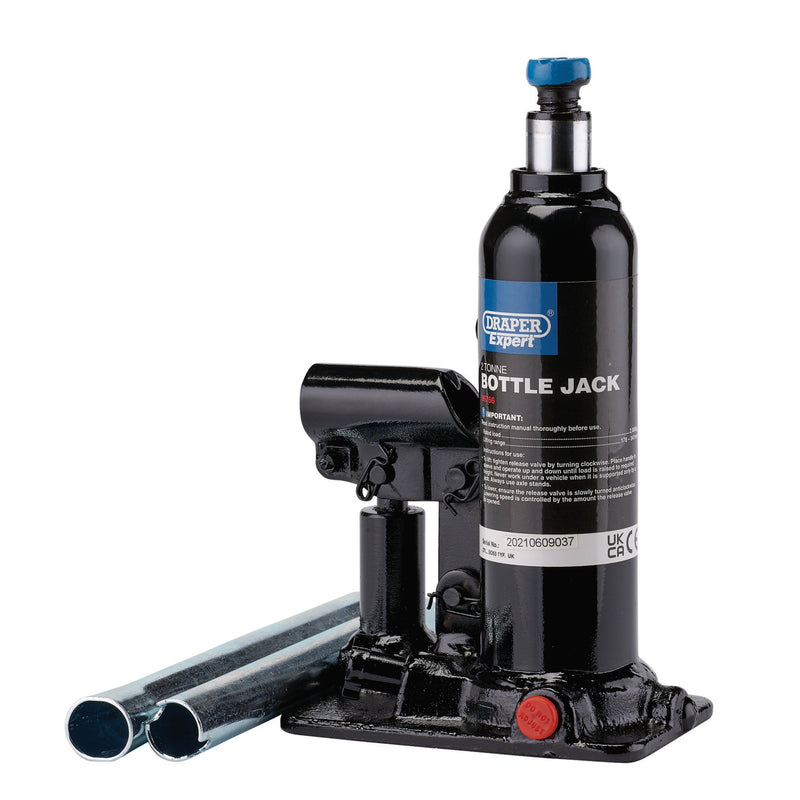

Draper Expert Hydraulic Bottle Jack, 2 Tonne — DR-99766
This bottle jack can lift up to 2 tonnes with a range of 178-347mm. It has a tough welded base and reservoir to increase strength and prolong service life. Features a smooth hydraulic lift and an automatic safety overload valve. It has a polished chrome-plated pump piston and zinc plated two-piece handle. The 52mm screw extension adjusts the height of the jack with ease. It is ideal for heavy duty, commercial and industrial applications.
| Stock number | 99766 |
|---|---|
| SKU | DR-99766 |
| Description | Bottle Jack |
| Capacity | 2 Tonne |
| Lifting Range | 178-347mm |
| Lifting range | 178-347mm |
| Hydraulic lift | 117mm |
| Ram diameter | 20mm |
| Screw extension | 52mm |
| Saddle diameter | 20mm |
| Handle length | 325mm |
| Weight | 2.4kg |
Supplied contents
1 x Draper Expert Hydraulic Bottle Jack, 2 Tonne
12 months

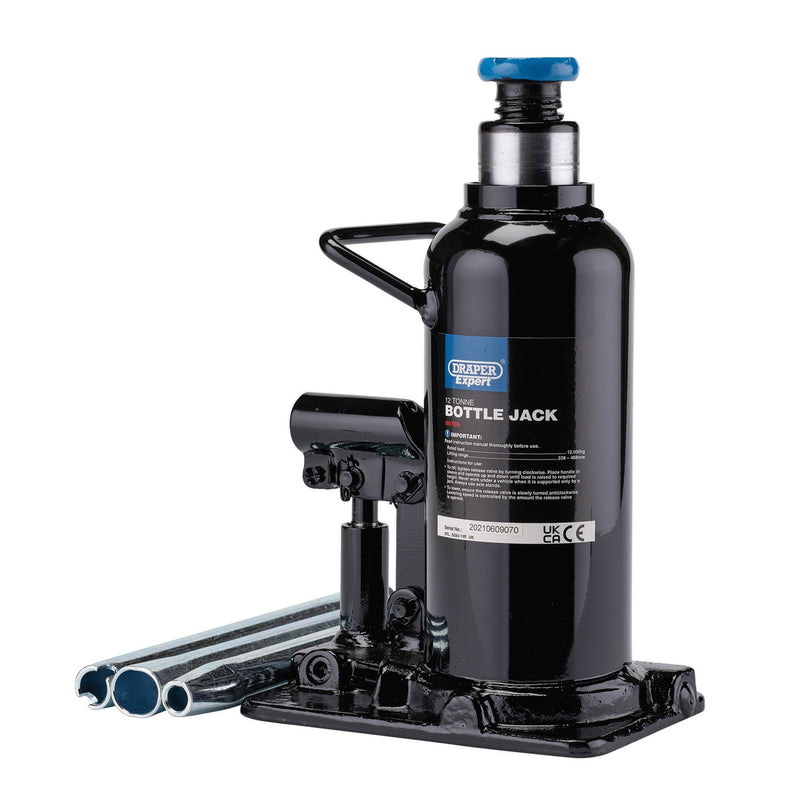

Draper Expert Hydraulic Bottle Jack, 12 Tonne — DR-99769
This bottle jack can lift up to 12 tonnes with a range of 238-468mm. It has a tough welded base and reservoir to increase strength and prolong service life. Features a smooth hydraulic lift and an automatic safety overload valve. It has a polished chrome-plated pump piston and zinc plated three-piece handle. The 80mm screw extension adjusts the height of the jack with ease. It is ideal for heavy duty, commercial and industrial applications.
| Stock number | 99769 |
|---|---|
| SKU | DR-99769 |
| Description | Bottle Jack |
| Capacity | 12 Tonne |
| Lifting Range | 238-468mm |
| Lifting range | 238-468mm |
| Hydraulic lift | 150mm |
| Ram diameter | 43mm |
| Screw extension | 80mm |
| Saddle diameter | 43mm |
| Handle length | 650mm |
| Weight | 9.3kg |
Supplied contents
1 x Draper Expert Hydraulic Bottle Jack, 12 Tonne
12 months

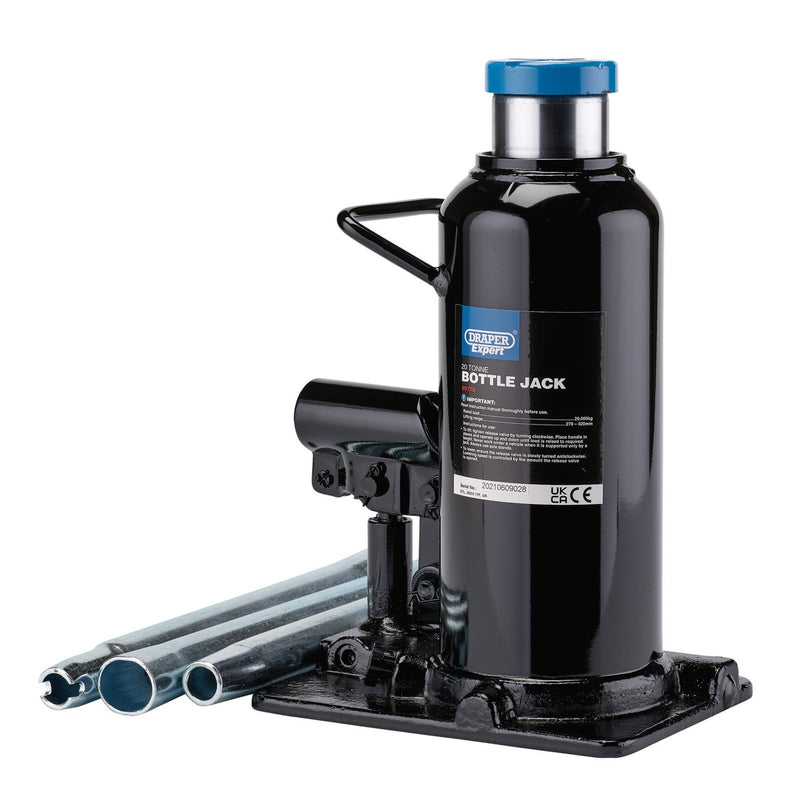

Draper Expert Hydraulic Bottle Jack, 20 Tonne — DR-99770
This bottle jack can lift up to 20 tonnes with a range of 270-420mm. It has a tough welded base and reservoir to increase strength and prolong service life. Features a smooth hydraulic lift and an automatic safety overload valve. It has a polished chrome-plated pump piston and zinc plated three-piece handle. It is ideal for heavy duty, commercial and industrial applications.
| Stock number | 99770 |
|---|---|
| SKU | DR-99770 |
| Description | Bottle Jack |
| Capacity | 20 Tonne |
| Lifting Range | 270-420mm |
| Lifting range | 270-420mm |
| Hydraulic lift | 160mm |
| Ram diameter | 33mm |
| Saddle diameter | 60mm |
| Handle length | 800mm |
| Weight | 13.3kg |
Supplied contents
1 x Draper Expert Hydraulic Bottle Jack, 20 Tonne
12 months

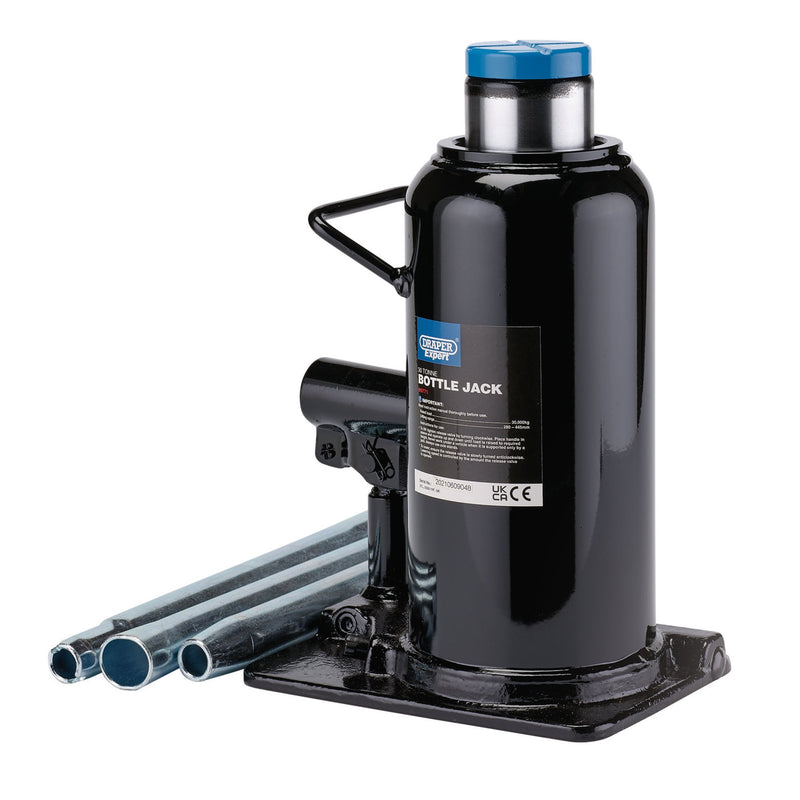

Draper Expert Hydraulic Bottle Jack, 30 Tonne — DR-99771
This bottle jack can lift up to 30 tonnes with a range of 280-445mm. It has a tough welded base and reservoir to increase strength and prolong service life. Features a smooth hydraulic lift and an automatic safety overload valve. It has a polished chrome-plated pump piston and zinc plated three-piece handle. It is ideal for heavy duty, commercial and industrial applications.
| Stock number | 99771 |
|---|---|
| SKU | DR-99771 |
| Description | Bottle Jack |
| Capacity | 30 Tonne |
| Lifting Range | 280-445mm |
| Lifting range | 280-445mm |
| Hydraulic lift | 165mm |
| Ram diameter | 62mm |
| Saddle diameter | 61mm |
| Handle length | 800mm |
| Weight | 18.4kg |
Supplied contents
1 x Draper Expert Hydraulic Bottle Jack, 30 Tonne
12 months

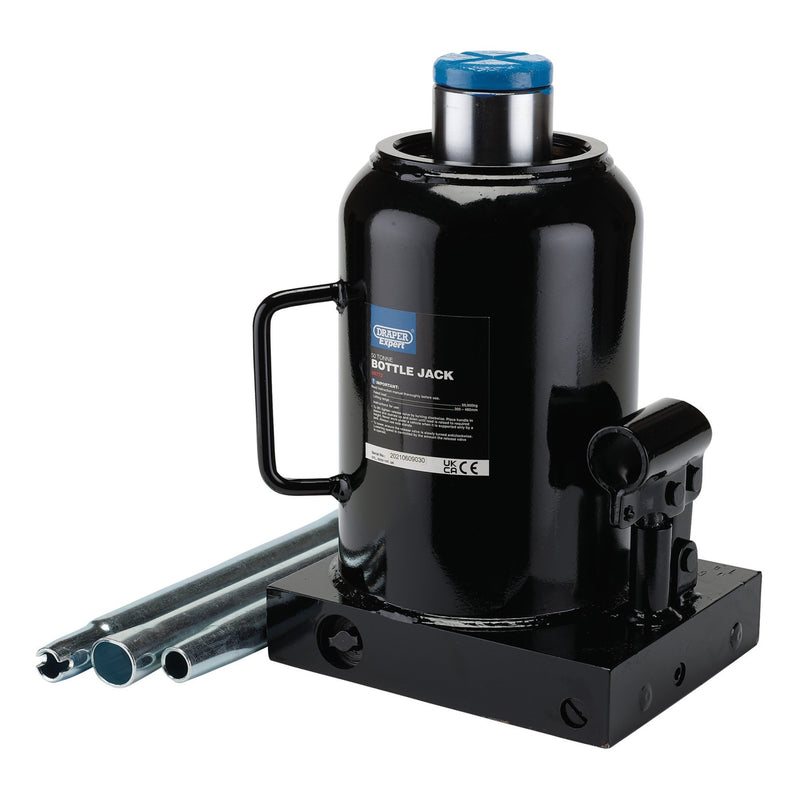

Draper Expert Hydraulic Bottle Jack, 50 Tonne — DR-99772
This bottle jack can lift up to 50 tonnes with a range of 300-482mm. It has a tough welded base and reservoir to increase strength and prolong service life. Features a smooth hydraulic lift and an automatic safety overload valve. It has a polished chrome-plated pump piston and zinc plated three-piece handle. It is ideal for heavy duty, commercial and industrial applications.
| Stock number | 99772 |
|---|---|
| SKU | DR-99772 |
| Description | Bottle Jack |
| Capacity | 50 Tonne |
| Lifting Range | 300-482mm |
| Lifting range | 300-482mm |
| Hydraulic lift | 165mm |
| Ram diameter | 65mm |
| Saddle diameter | 64mm |
| Handle length | 800mm |
| Weight | 35.3kg |
Supplied contents
1 x Draper Expert Hydraulic Bottle Jack, 50 Tonne
12 months
