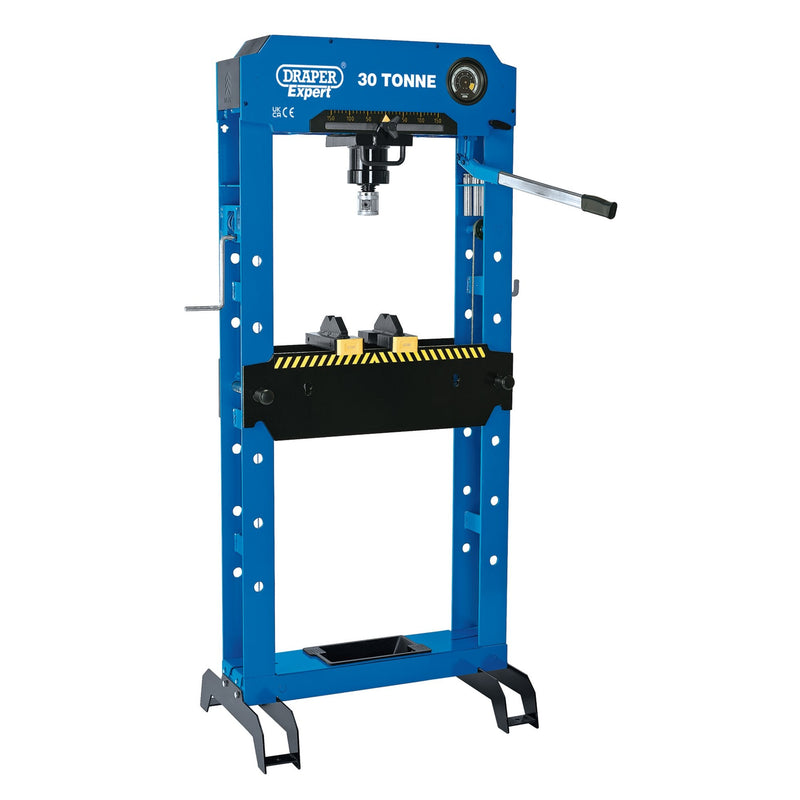

Draper Expert Hydraulic Floor Press, 30 Tonne
SKU DR-70561 Barcode 5010559705610
Out of stock. Contact us for availability.
Notify me when back in stock
- Expert UK product support
- Authorised distributor
- 30 day returns
Delivery & returns
Despatch times vary by item. Check the product-specific lead time shown on this page. Supplier-shipped and larger items may take longer.
Delivery options and transit times are shown at checkout. Transit time starts after despatch and excludes weekends and bank holidays unless the selected service states otherwise. Tracking is provided when available.
30 day returns on unused items in original packaging.
Description
Description
Robust hydraulic 30 tonne floor press with sliding ram for precise pressing. Fitted with hand pump for manual hydraulic operation. There are 12 adjustable table heights with a working range between 25-850mm. The table can be lifted or lowered using a winch. Robot welding one-piece frame for increased stability. There are dustproof covers fitted to the top of the frame to prevent dust entering the pump and ram, which helps to increase their service life. There is a removable parts tray located in the frame base. Supplied with eight press pins ranging from 2-15 tonnes and two flat v-shaped pressing blocks.
Features
- Sliding ram
- Rack and pinion table
- Storage tray located in the base frame, which can be removed
- Supplied with press pins
| Stock number | 70561 |
|---|---|
| SKU | DR-70561 |
| Description | Floor Press |
| Capacity | 30 Tonne |
| Gauge diameter | 100mm |
| Ram stroke | 220mm |
| Ram scale | 145mm - 0mm - 145mm |
| Ram diameter | 50mm |
| Table height | 25-850mm |
| Press pin capacity | 2-15 Tonnes |
| Overall height | 1800mm |
| Frame dimensions | (H) 1685 x (W) 600 x (D) 148mm |
| Weight (net) | 157kg |
Supplied contents
1 x Draper Expert Hydraulic Floor Press, 30 Tonne
12 months
Delivery & returns
Despatch times vary by item. Check the product-specific lead time shown on this page. Supplier-shipped and larger items may take longer.
Delivery options and transit times are shown at checkout. Transit time starts after despatch and excludes weekends and bank holidays unless the selected service states otherwise. Tracking is provided when available.
30 day returns on unused items in original packaging. Contact us for a returns number before sending anything back.
