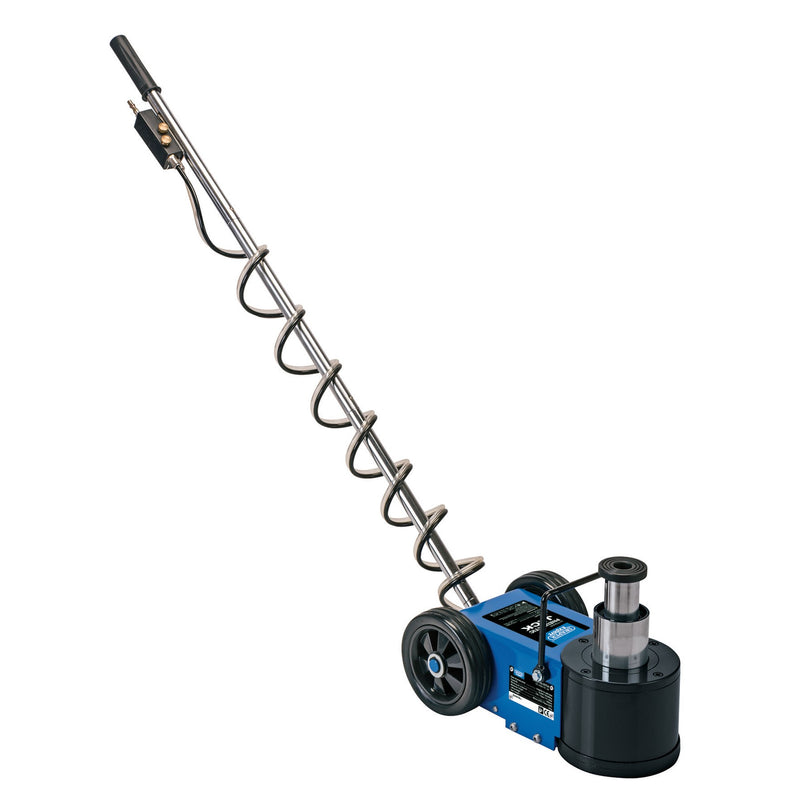

Draper Expert Pneumatic Jack, 30 Tonne
SKU DR-03724 Barcode 5010559037247
50 available from our warehouse. Despatch times vary.
Pay in 3 interest-free with shopPay or PayPal
- Expert UK product support
- Authorised distributor
- 30 day returns
Delivery & returns
Despatch times vary by item. Check the product-specific lead time shown on this page. Supplier-shipped and larger items may take longer.
Delivery options and transit times are shown at checkout. Transit time starts after despatch and excludes weekends and bank holidays unless the selected service states otherwise. Tracking is provided when available.
30 day returns on unused items in original packaging.
Description
Description
Portable and compact twin stage pneumatic jack, capable of lifting 30 Tonnes. The ergonomic handle is fixed with a "Slow Down" valve and a "Self-Return" switch for increased safety and easy use. Fitted with industrial quality seals prolonging the life of the jack, a safety overload valve and twin rubber coated wheels for a quieter and smoother operation, whilst also preventing damage to garage floors and improving manoeuvrability. Supplied with 45mm and 75mm height lift extensions and a 1/4" BSP airline connector. Manufactured, tested and certified to the current EN1494 standard.
Features
- Twin stage pneumatic jack
- Ergonomic handle grips
- Slow Down' valve
- Self Return' switch
- Twin PP and rubber wheels
- Industrial seals
- Supplied with 1/4" BSP inlet and 45mm/75mm extensions
- Manufactured, tested and certified to the current EN1494 standard
| Stock number | 03724 |
|---|---|
| SKU | DR-03724 |
| Description | Air Jack |
| Capacity | 30 Tonne (30,000kg)15 Tonne (15,000kg) |
| Air Consumption | 10.5cfm |
| Air Inlet | 1/4” BSP |
| Chassis Dimensions | 430 x 176 x 150mm |
| Handle Length | 1200mm |
| Lifting Height Position 1 | 73mm |
| Lifting Height Position 2 | 66mm |
| Max Height Stage 1 | 343mm (inc extensions) |
| Max Height Stage 2 | 409mm (inc extensions) |
| Min Height | 150mm |
| Nett Weight | 30kg |
| Operating Air Pressure | 9 – 12BAR (130 – 174psi) |
| Saddle Diameter | 70mm |
| Wheel Diameter | 165mm |
| Wheel Width | 42.5mm |
Supplied contents
1 x Pneumatic Jack, 30 Tonne
Manufactured to EN1494 Specification
12 months
