Draper Expert Pneumatic Long Chassis Low Profile Jack, 40 Tonne
SKU DR-02080 Barcode 5010559020805
Out of stock. Contact us for availability.
Notify me when back in stock
- Expert UK product support
- Authorised distributor
- 30 day returns
Delivery & returns
Despatch times vary by item. Check the product-specific lead time shown on this page. Supplier-shipped and larger items may take longer.
Delivery options and transit times are shown at checkout. Transit time starts after despatch and excludes weekends and bank holidays unless the selected service states otherwise. Tracking is provided when available.
30 day returns on unused items in original packaging.
Description
Description

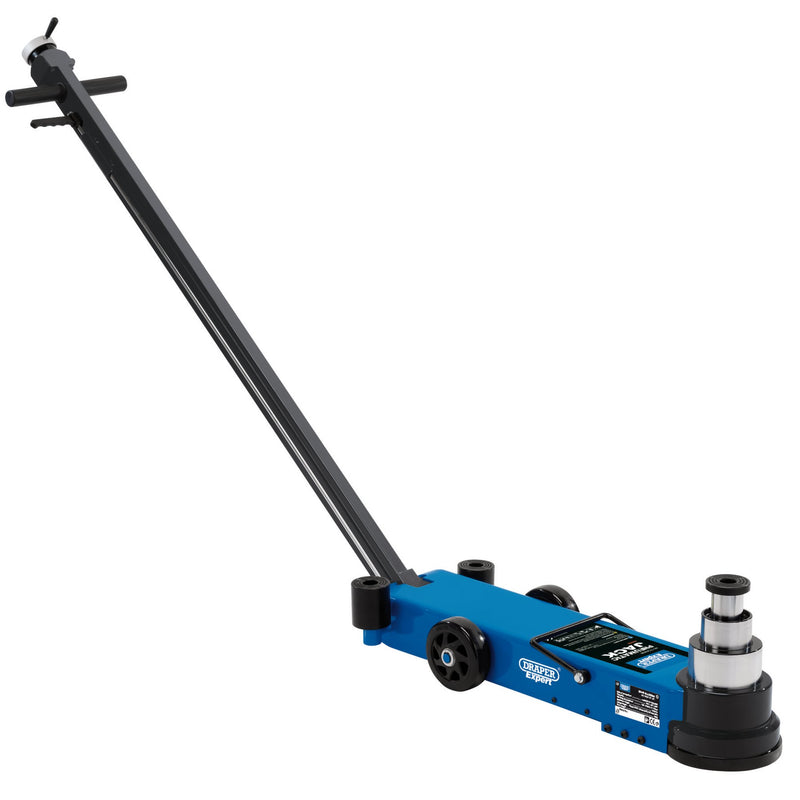

Long chassis, extra low profile pneumatic jack. The 125mm entry height has a total reach of 2210mm and is capable of lifting 40 Tonnes. The 3 stage adjustable ergonomic handle is fixed with a 'Slow Down' valve and a 'Self-Return' switch for increased safety and easy use. Fitted with industrial quality seals prolonging the life of the jack, a safety overload valve and twin rubber coated wheels for a quieter and smoother operation, whilst also preventing damage to garage floors and improving manoeuvrability. Supplied with 45mm and 75mm height lift extensions and a 1/4" BSP airline connector.
Features
- Three stage pneumatic jack
- Extra low profile, 125mm entry height
- Long chassis, 2210mm reach
- ‘Slow Down’ valve
- ‘Self Return’ switch
- Twin PP and rubber wheels
- Industrial seals
- Supplied with 1/4” BSP inlet and 45mm/75mm extensions
| Stock number | 02080 |
|---|---|
| SKU | DR-02080 |
| Description | Air Jack |
| Capacity | 40 Tonne (40,000kg)20 Tonne (20,000kg)10 Tonne (10,000kg) |
| Air Consumption | 11.5cfm |
| Air Inlet | 1/4" BSP |
| Chassis Dimensions | 830 x 179 x 125mm |
| Handle Length | 1380mm |
| Lifting Height Position 1 | 57mm |
| Max Height Stage 1 | 302mm (inc extensions) |
| Max Height Stage 2 | 347mm (inc extensions) |
| Min Height | 125mm |
| Nett Weight | 44kg |
| Operating Air Pressure | 9 – 12BAR (130 – 174psi) |
| Saddle Diameter | 70mm |
| Wheel Diameter | 125mm |
| Max Height Stage 3 | 396mm (inc extensions) |
| Wheel Width | 47.5mm |
Supplied contents
1 x Pneumatic Long Chassis Low Profile Jack, 40 Tonne
Manufactured to EN1494 Specification
