Draper Hydraulic Bottle Jack
SKU DR-36361 Barcode 5059482124525
50 available from our warehouse. Despatch times vary.
- Expert UK product support
- Authorised distributor
- 30 day returns
Delivery & returns
Despatch times vary by item. Check the product-specific lead time shown on this page. Supplier-shipped and larger items may take longer.
Delivery options and transit times are shown at checkout. Transit time starts after despatch and excludes weekends and bank holidays unless the selected service states otherwise. Tracking is provided when available.
30 day returns on unused items in original packaging.
Description
Description
Specifications by model
Choose the specification above. Each model has its own stock number and supplied contents.

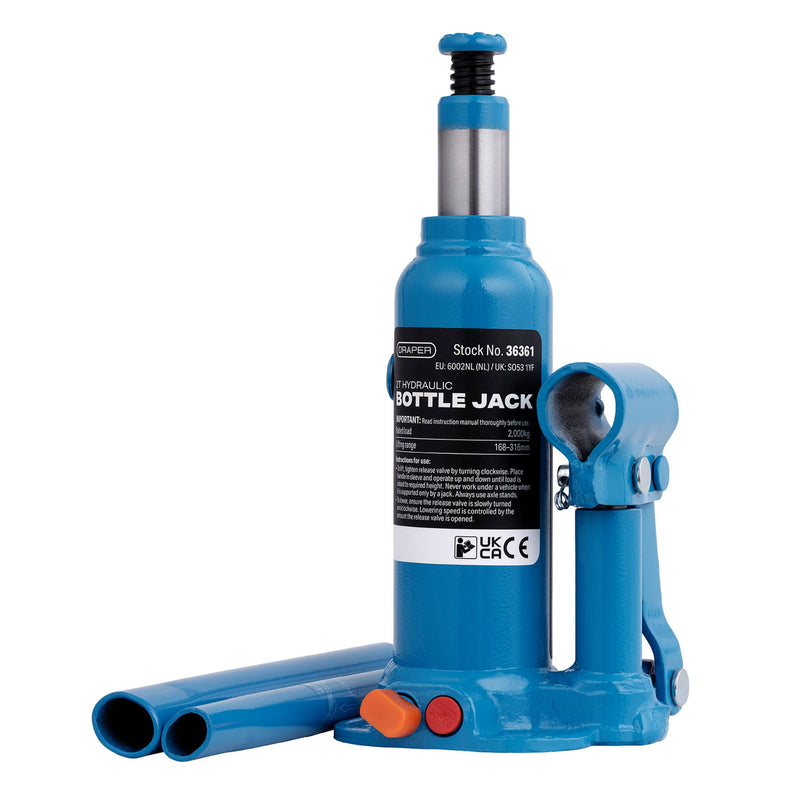

Hydraulic Bottle Jack, 2 Tonne — DR-36361
A robust welded base delivers reliable strength under pressure for loads up to 2 tonnes, while the adjustable height ram saddle, stable base, and storage-friendly three-piece handle provide flexibility and convenient storage.
| Stock number | 36361 |
|---|---|
| SKU | DR-36361 |
| Capacity | 2 Tonne |
| Minimum Height | 168mm (Approx) |
| Maximum Height | 316mm (Approx) |
Supplied contents
1 x Hydraulic Bottle Jack, 2 Tonne
12 months

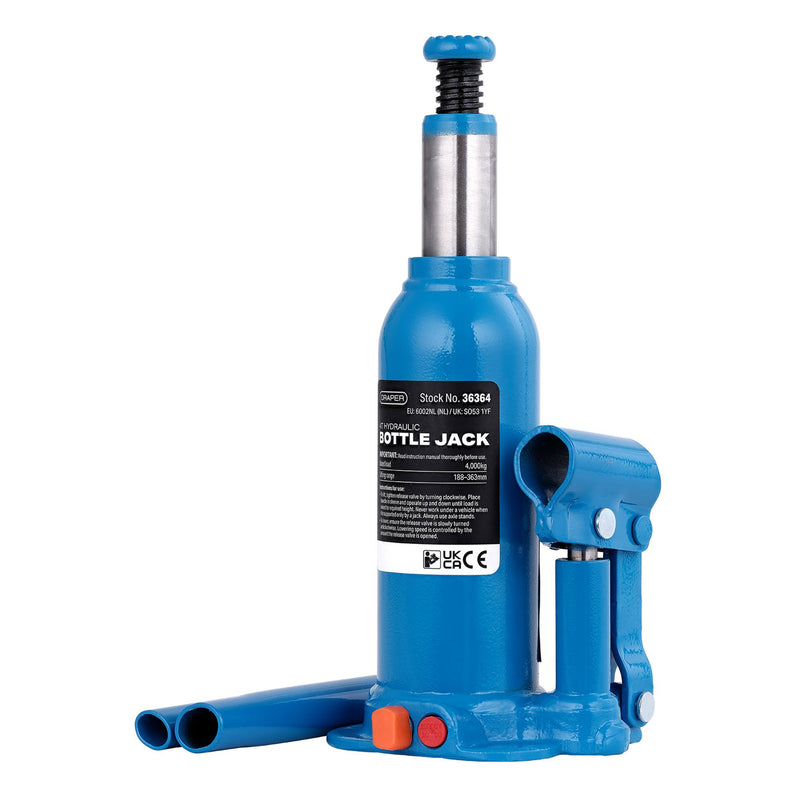

Hydraulic Bottle Jack, 4 Tonne — DR-36364
A robust welded base delivers reliable strength under pressure for loads up to 4 tonnes, while the adjustable height ram saddle, stable base, and storage-friendly three-piece handle provide flexibility and convenient storage.
| Stock number | 36364 |
|---|---|
| SKU | DR-36364 |
| Capacity | 4 Tonne (4000kg) |
| Minimum Height | 188mm (Approx) |
| Maximum Height | 363mm (Approx) |
| Screw Extension | 50mm (Approx) |
| Ram Diameter | 25mm (Approx) |
| Jack Handle Design | Three-Piece |
| Jack Handle Length | 260mm (Approx) |
| Base Size | 108.5*87mm (Approx) |
| Net Weight | 2.8kg |
Supplied contents
1 x Hydraulic Bottle Jack, 4 Tonne
12 months

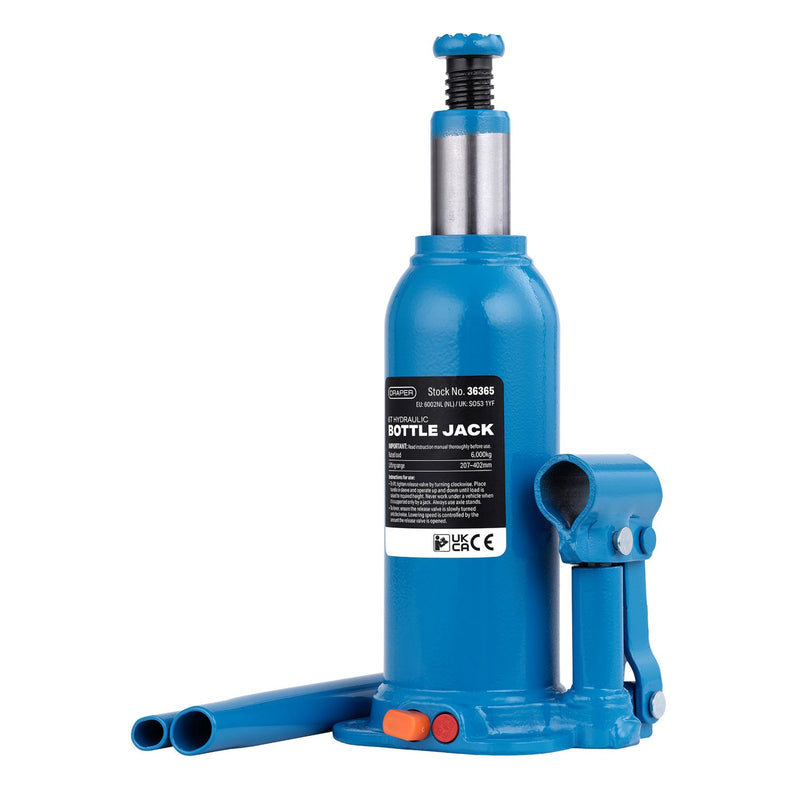

Hydraulic Bottle Jack, 6 Tonne — DR-36365
A robust welded base delivers reliable strength under pressure for loads up to 6 tonnes, while the adjustable height ram saddle, stable base, and storage-friendly three-piece handle provide flexibility and convenient storage.
| Stock number | 36365 |
|---|---|
| SKU | DR-36365 |
| Capacity | 6 Tonne (6000kg) |
| Minimum Height | 207mm (Approx) |
| Maximum Height | 402mm (Approx) |
| Screw Extension | 50mm (Approx) |
| Ram Diameter | 30mm (Approx) |
| Jack Handle Design | Three-Piece |
| Jack Handle Length | 280mm (Approx) |
| Base Size | 117*97mm (Approx) |
| Net Weight | 3.7kg |
Supplied contents
1 x Hydraulic Bottle Jack, 6 Tonne
12 months

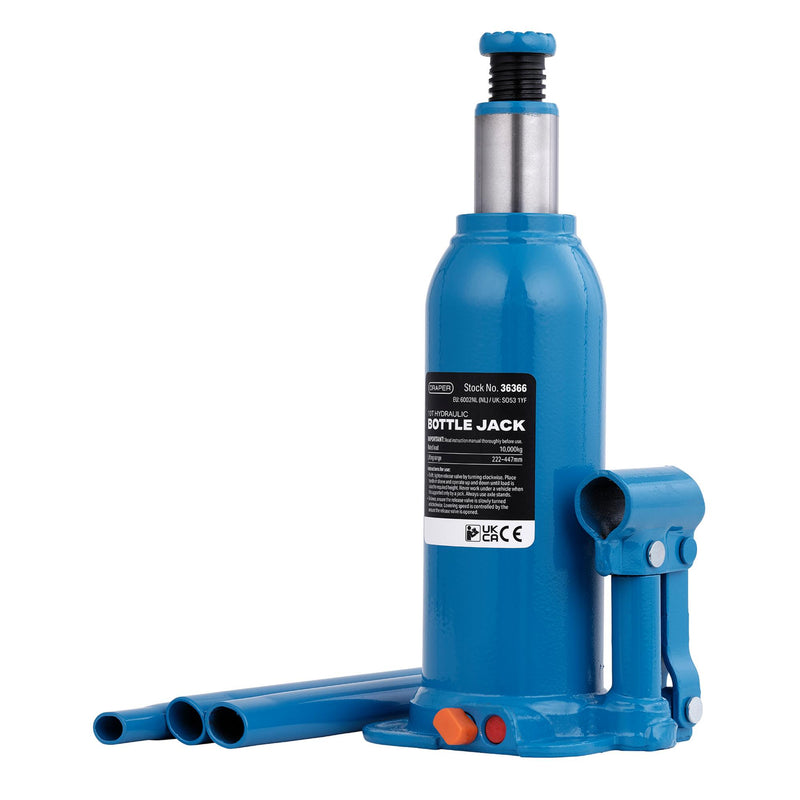

Hydraulic Bottle Jack, 10 Tonne — DR-36366
A robust welded base delivers reliable strength under pressure for heavy-duty loads up to 10 tonnes, while the adjustable height ram saddle, stable base, and storage-friendly three-piece handle provide flexibility and convenient storage.
| Stock number | 36366 |
|---|---|
| SKU | DR-36366 |
| Capacity | 10 Tonne (10,000kg) |
| Maximum Height | 450mm (Approx) |
| Minimum Height | 225mm (Approx) |
| Screw Extension | 50mm (Approx) |
| Ram Diameter | 33mm (Approx) |
| Jack Handle Design | Three-Piece |
| Jack Handle Length | 280mm (Approx) |
| Base Size | 124*106mm (Approx) |
| Net Weight | 4.8kg |
Supplied contents
1 x Hydraulic Bottle Jack, 10 Tonne
12 months

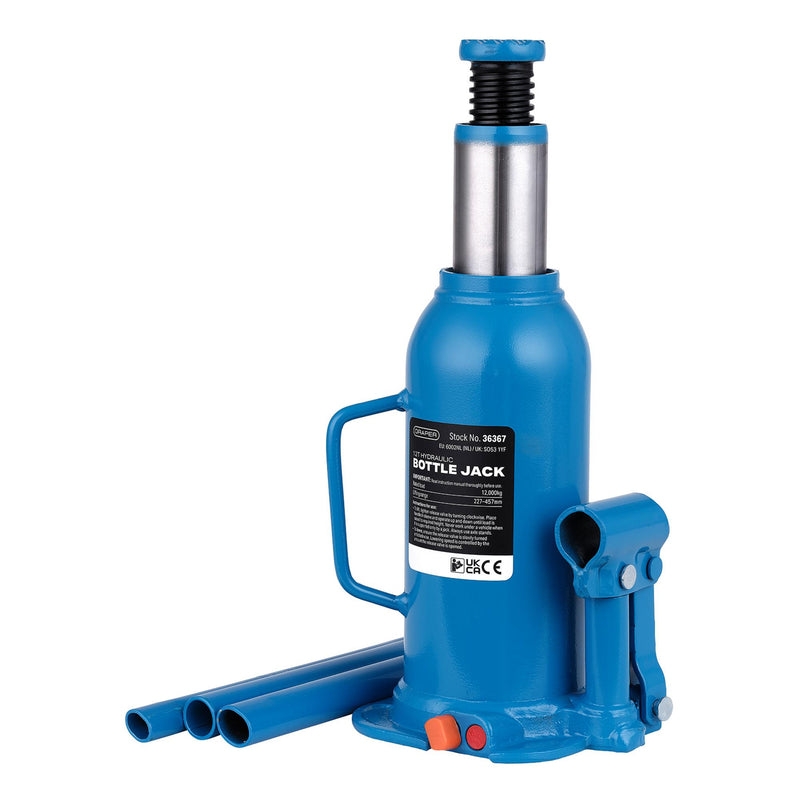

Hydraulic Bottle Jack, 12 Tonne — DR-36367
A robust welded base delivers reliable strength under pressure for heavy-duty loads up to 12 tonnes, while the adjustable height ram saddle, stable base, and storage-friendly three-piece handle provide flexibility and convenient storage.
| Stock number | 36367 |
|---|---|
| SKU | DR-36367 |
| Capacity | 12 Tonne (12,000kg) |
| Minimum Height | 227mm (Approx) |
| Maximum Height | 457mm (Approx) |
| Screw Extension | 50mm (Approx) |
| Ram Diameter | 33mm (Approx) |
| Jack Handle Design | Three-Piece |
| Jack Handle Length | 280mm (Approx) |
| Base Size | 124*106mm (Approx) |
| Net Weight | 6kg |
Supplied contents
1 x Hydraulic Bottle Jack, 12 Tonne
12 months

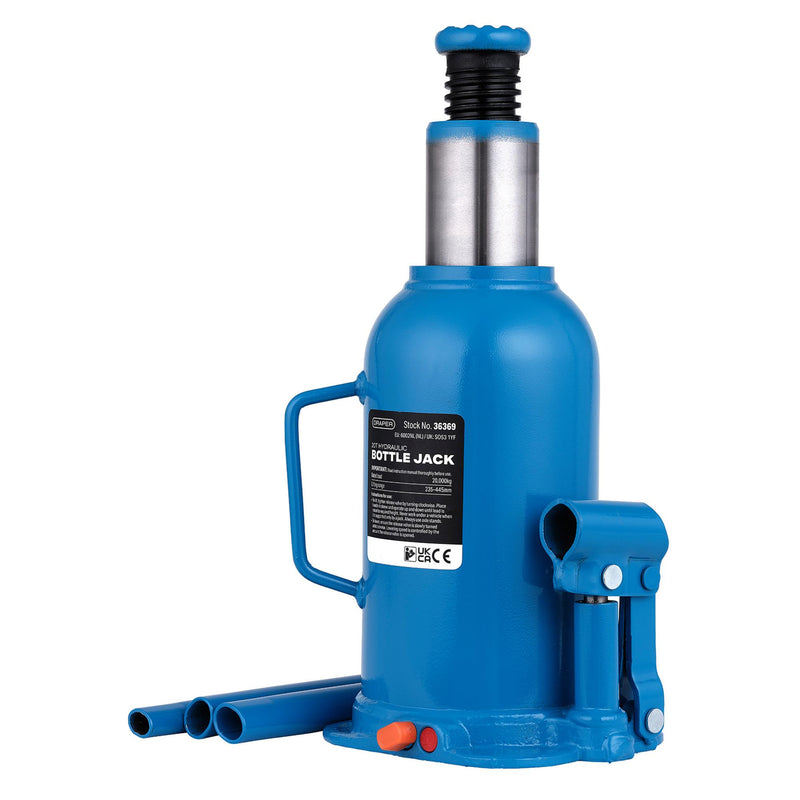

Hydraulic Bottle Jack, 20 Tonne — DR-36369
A robust welded base delivers reliable strength under pressure for heavy-duty loads up to 20 tonnes, while the adjustable height ram saddle, stable base, and storage-friendly three-piece handle provide flexibility and convenient storage.
| Stock number | 36369 |
|---|---|
| SKU | DR-36369 |
| Capacity | 20 Tonne (20,000kg) |
| Minimum Height | 235mm (Approx) |
| Maximum Height | 445mm (Approx) |
| Screw Extension | 50mm (Approx) |
| Ram Diameter | 36mm (Approx) |
| Jack Handle Design | Three-Piece |
| Jack Handle Length | 300mm (Approx) |
| Base Size | 152*124mm (Approx) |
| Net Weight | 8.6kg |
Supplied contents
1 x Hydraulic Bottle Jack, 20 Tonne
12 months
