Draper Metal Cutting Discs
SKU DR-94658 Barcode 5059482030857
50 available from our warehouse. Despatch times vary.
- Expert UK product support
- Authorised distributor
- 30 day returns
Delivery & returns
Despatch times vary by item. Check the product-specific lead time shown on this page. Supplier-shipped and larger items may take longer.
Delivery options and transit times are shown at checkout. Transit time starts after despatch and excludes weekends and bank holidays unless the selected service states otherwise. Tracking is provided when available.
30 day returns on unused items in original packaging.
Description
Description
Specifications by model
Choose the specification above. Each model has its own stock number and supplied contents.

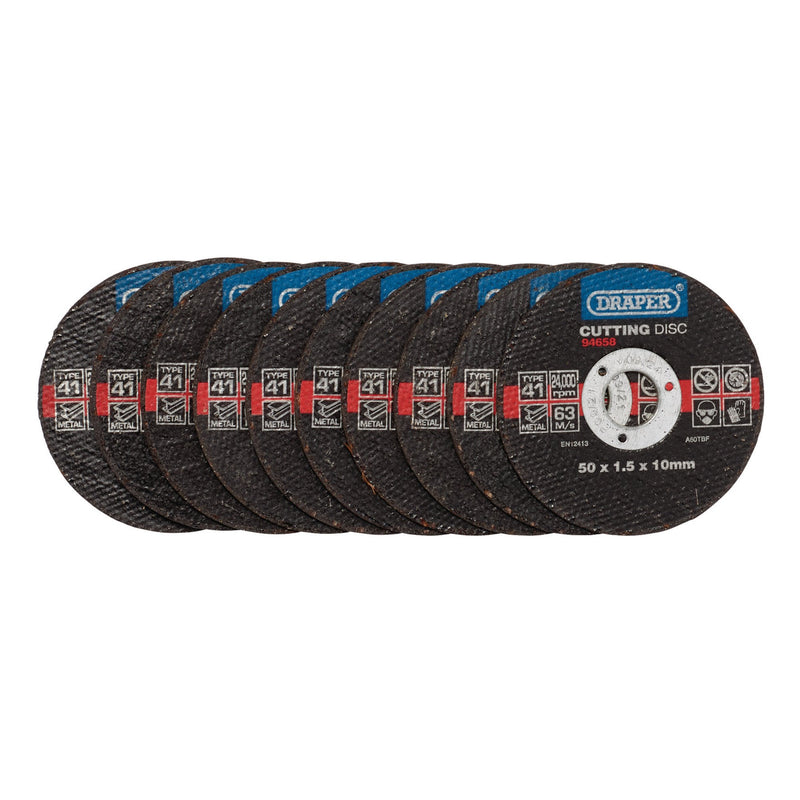

Metal Cutting Discs, 50 x 1.5 x 10mm (Pack of 10) — DR-94658
Flat cutting discs designed for fast straight cutting in various metalworking applications, including steel, structural steel and sheet metal. Manufactured from premium-quality aluminium oxide that has been resin bonded and reinforced with fibreglass to improve the strength and performance of the disc. The bore has a stainless-steel ring to allow the cutting disc to be safely mounted onto the machine. Compatible with 50mm grinders and cut-off tools with a 10mm bore.
| Stock number | 94658 |
|---|---|
| SKU | DR-94658 |
| Diameter | 50mm |
| Bore | 10mm |
| Thickness | 1.5mm |
| Max speed | 24,000rpm |
| Pack Size | 10 |
| Cutting speed | 63m/s |
| Maximum speed | 24,000rpm |
| Profile | T-41 |
| Certification | EN12413 |
| Approved Abrasive Wheel Marking Code | A60TBF |
| Weight | 0.0075kg |
Supplied contents
1 x Metal Cutting Discs, 50 x 1.5 x 10mm (Pack of 10)
Manufactured to EN12413 standards
Consumable Warranty

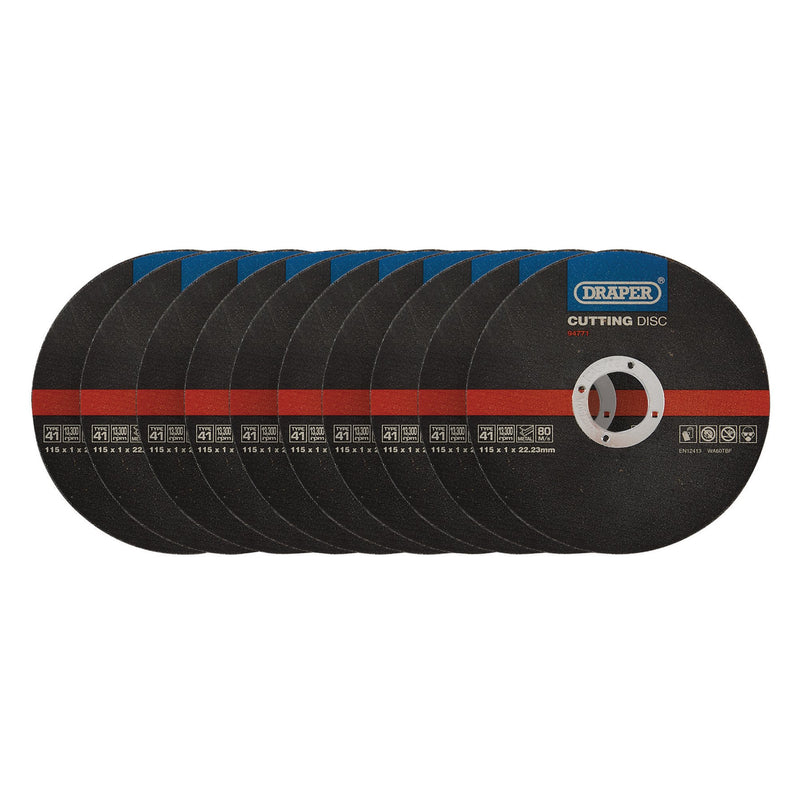

Metal Cutting Discs, 115 x 1 x 22.23mm (Pack of 10) — DR-94771
Flat cutting discs designed for fast straight cutting in various metalworking applications, including steel, structural steel and sheet metal. Manufactured from premium-quality aluminium oxide that has been resin bonded and reinforced with fibreglass to improve the strength and performance of the disc. The bore has a stainless-steel ring to allow the cutting disc to be safely mounted onto the machine. Compatible with 115mm grinders with a 22.23mm bore. Supplied as ten discs in a convenient storage tin.
| Stock number | 94771 |
|---|---|
| SKU | DR-94771 |
| Diameter | 115mm |
| Bore | 22.23mm |
| Thickness | 1mm |
| Max speed | 13,300rpm |
| Pack Size | 10 |
| Cutting speed | 80m/s |
| Maximum speed | 13,300rpm |
| Profile | T-41 |
| Certification | EN12413 |
| Approved abrasive wheel marking code | WA60TBF |
| Weight | 0.268kg |
Supplied contents
1 x Metal Cutting Discs, 115 x 1 x 22.23mm (Pack of 10)
Manufactured to EN12413 standards
Consumable Warranty

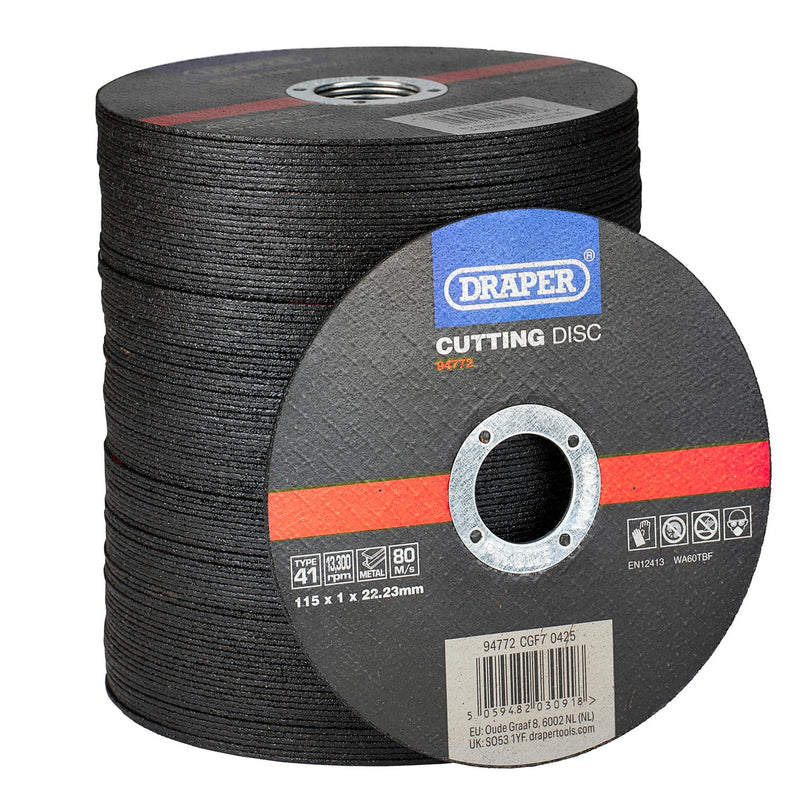

Metal Cutting Discs, 115 x 1 x 22.23mm (Pack of 100) — DR-94772
Box of 100 flat cutting discs designed for fast straight cutting on various metal working applications including steel, structural steel and sheet metal. Manufactured from premium quality aluminium oxide, which has been resin bonded and reinforced with fibreglass to improve the strength and performance of the disc. Ultra-thin 1mm discs for rapid efficient cutting. The bore has a stainless-steel ring to allow the cutting discs to be safely mounted onto the machine. Compatible with 115mm angle grinders with a 22.23mm bore. Manufactured to EN12413 standards.
| Stock number | 94772 |
|---|---|
| SKU | DR-94772 |
| Diameter | 115mm |
| Bore | 22.23mm |
| Thickness | 1mm |
| Max speed | 13,300rpm |
| Pack Size | 100 |
| Bore size | 22.23mm |
| Cutting speed | 80m/s |
| Maximum speed | 13300rpm |
| Profile | Type 41 |
| Certification | EN12413 |
Supplied contents
1 x Metal Cutting Discs, 115 x 1 x 22.23mm (Pack of 100)
Manufactured to EN12413 standards
Consumable Warranty
