Description
Description
Specifications by model
Choose the specification above. Each model has its own stock number and supplied contents.

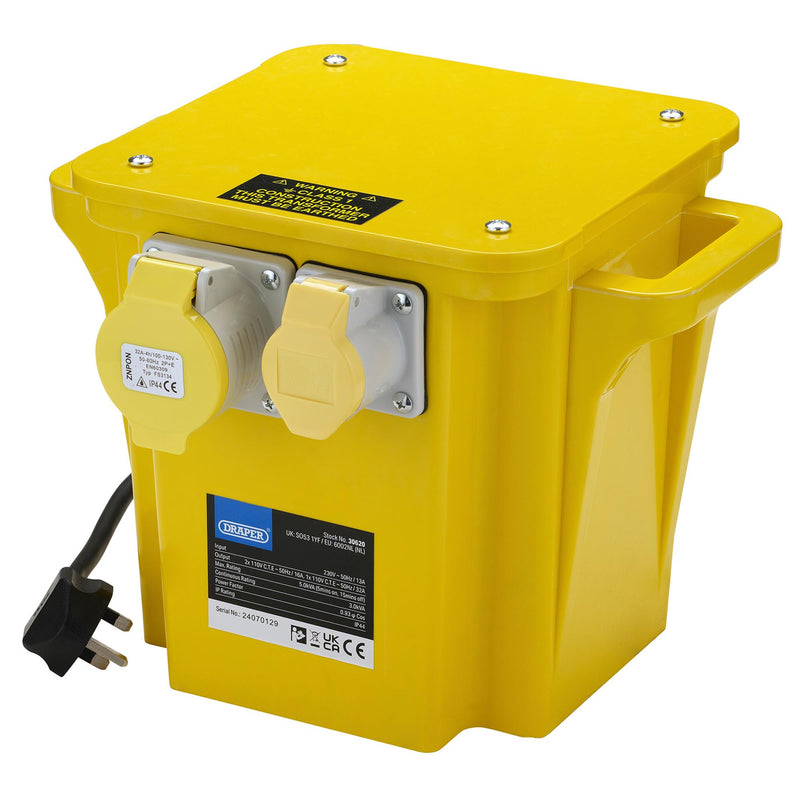

110V Portable Transformer, 5.0kVA — DR-30620
This portable site transformer converts 230V electrical supply to a 110V output, centre tapped earth. Suitable for intermittent running of power tools up to 3,000vA and continuous use with lighting products up to 5,000vA. It features a robust IP44 GRP casing and is insulated to Class I standards. The transformer is equipped with thermostatic overload protection and includes 2 x 16A 110V and 1 x 32A 110V IP44 socket outlets.
| Stock number | 30620 |
|---|---|
| SKU | DR-30620 |
| Input voltage | 230V AC |
| Input frequency | 50Hz |
| Input amperage | 13A |
| Output voltage | 110V AC |
| Output amperage | 16A/32A |
| Max rated output | 3,000vA (intermittent) 5,000vA (continous) |
| Insulation class | Class I |
| Output sockets | 2 x 16A/110V, 1 x 32A/110V |
| IP rating | IP44 |
| Power cord length | 2m |
| Weight | 29kg |
Supplied contents
1 x 110V Portable Transformer, 5.0kVA
12 months

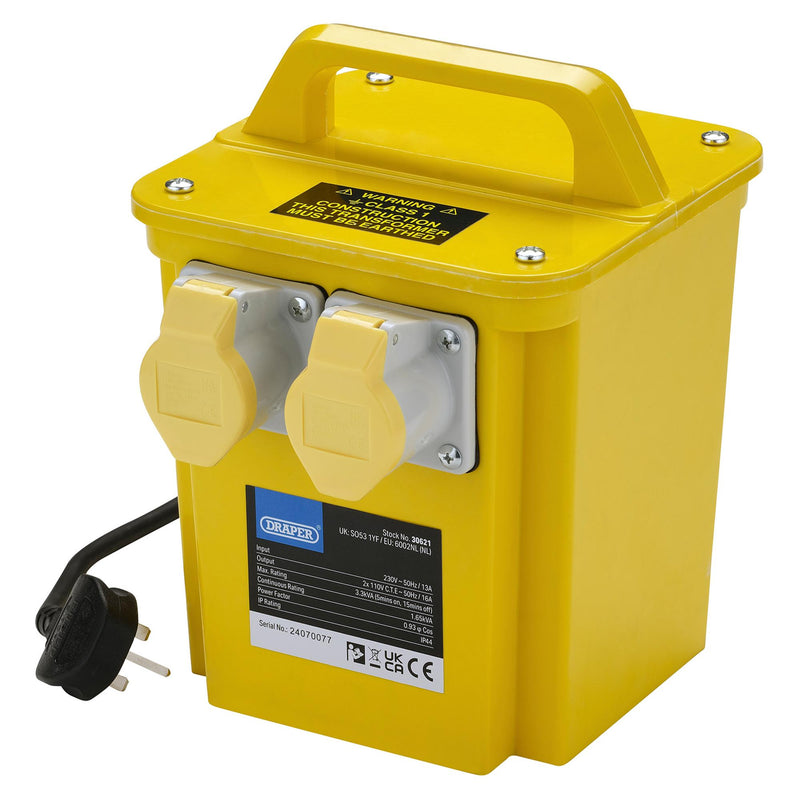

110V Portable Transformer, 3.3kVA — DR-30621
This portable site transformer converts 230V electrical supply to a 110V output, centre tapped earth. Suitable for intermittent running of power tools up to 1,650vA and continuous use with lighting products up to 3,000vA. It features a robust IP44 GRP casing and is insulated to Class I standards. The transformer is equipped with thermostatic overload protection and includes 2 x 16A 110V IP44 socket outlets.
| Stock number | 30621 |
|---|---|
| SKU | DR-30621 |
| Input voltage | 230V AC |
| Input frequency | 50Hz |
| Input amperage | 13A |
| Output voltage | 110V AC |
| Output amperage | 16A |
| Max rated output | 1,650vA (continous) 3,000vA (intermittent) |
| Insulation class | Class I |
| Output sockets | 2 x 16A/110V |
| IP rating | IP44 |
| Power cord length | 1.6m |
| Weight | 15.8kg |
Supplied contents
1 x 110V Portable Transformer, 3.3kVA
12 months

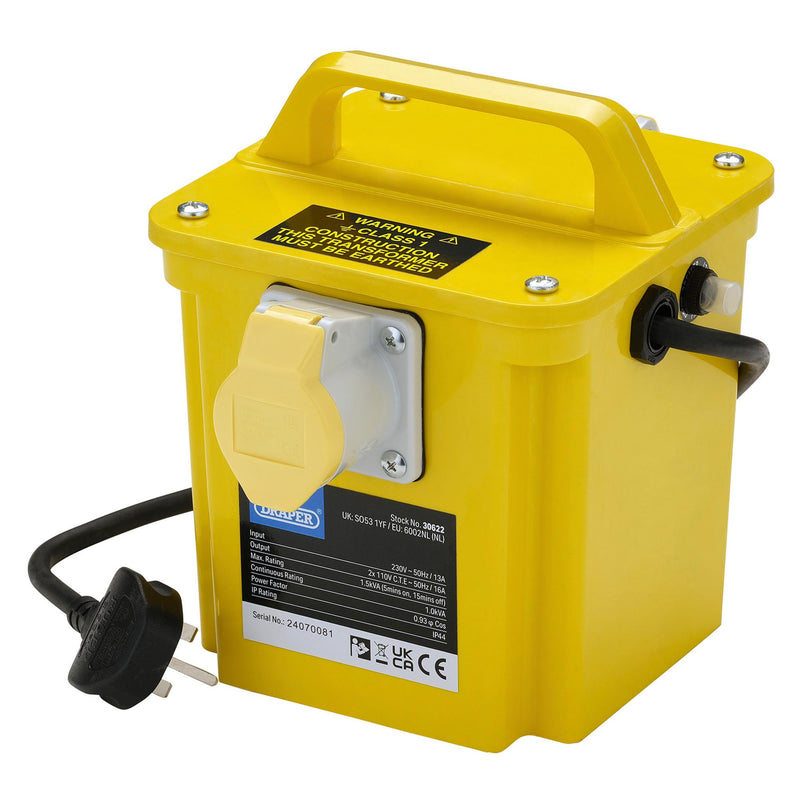

110V Portable Transformer, 1.5kVA — DR-30622
This portable site transformer converts 230V electrical supply to a 110V output, centre tapped earth. Suitable for intermittent running of power tools up to 1,000vA and continuous use with lighting products up to 1,500vA. It features a robust IP44 GRP casing and is insulated to Class I standards. The transformer is equipped with thermostatic overload protection and includes 2 x 16A 110V IP44 socket outlets.
| Stock number | 30622 |
|---|---|
| SKU | DR-30622 |
| Input voltage | 230V AC |
| Input frequency | 50Hz |
| Input amperage | 13A |
| Output voltage | 110V AC |
| Output amperage | 16A |
| Max rated output | 1,000vA (intermittent) 1,500vA (continous) |
| Insulation class | Class I |
| Output sockets | 2 x 16A/110V |
| IP rating | IP44 |
| Power cord length | 1.6m |
| Weight | 12.2kg |
Supplied contents
1 x 110V Portable Transformer, 1.5kVA
12 months
