Draper Segmented Diamond Blade
SKU DR-99782 Barcode 5059482000997
50 available from our warehouse. Despatch times vary.
- Expert UK product support
- Authorised distributor
- 30 day returns
Delivery & returns
Despatch times vary by item. Check the product-specific lead time shown on this page. Supplier-shipped and larger items may take longer.
Delivery options and transit times are shown at checkout. Transit time starts after despatch and excludes weekends and bank holidays unless the selected service states otherwise. Tracking is provided when available.
30 day returns on unused items in original packaging.
Description
Description
Specifications by model
Choose the specification above. Each model has its own stock number and supplied contents.

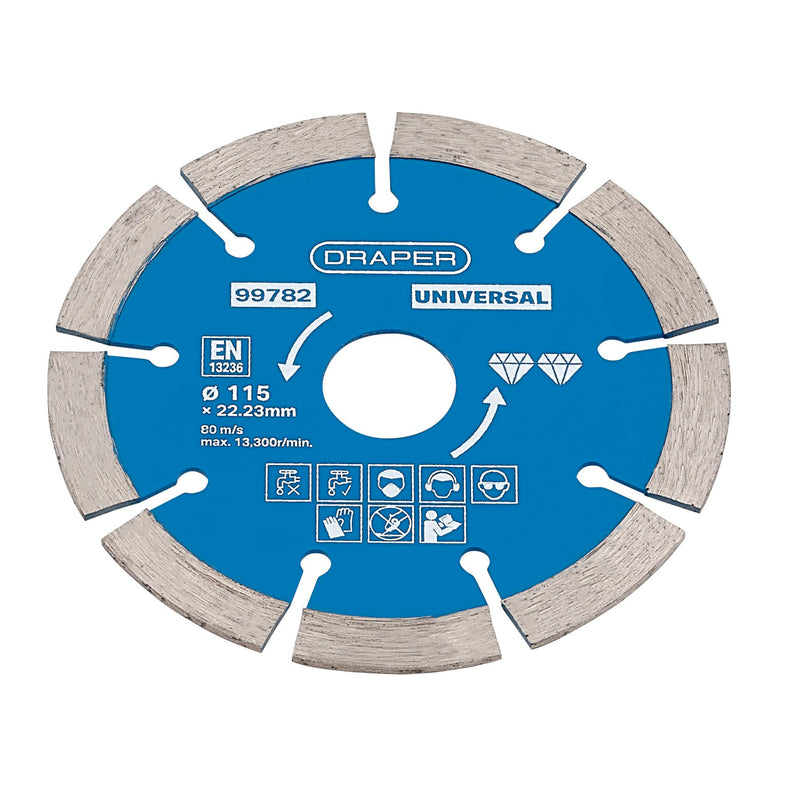

Segmented Diamond Blade, 115mm — DR-99782
Hardened and tempered diamond blade with segmented rim for a faster cut. General purpose blade for use on concrete, bricks, stone, granite and marble. Suitable for dry and wet cutting, with optimum results when used wet. Compatible with most angle grinders with a 22.23mm bore.
| Stock number | 99782 |
|---|---|
| SKU | DR-99782 |
| Diameter x Bore | 115 x 22.23mm |
| Segment height | 10mm |
| Max r/min | 13300 |
| Diameter | 115mm |
| Bore size | 22.23mm |
| Maximum speed | 13,300rpm |
| Kerf | 1.9mm |
| Blade construction | Sintered |
| Weight | 0.93kg |
Supplied contents
1 x Segmented Diamond Blade, 115mm
Consumable Warranty

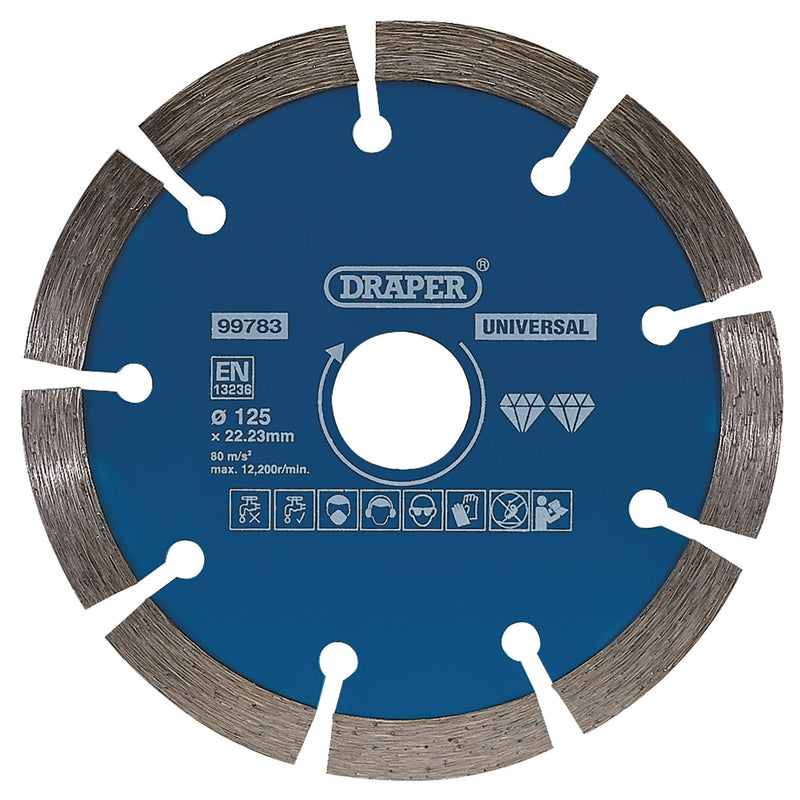

Segmented Diamond Blade, 125mm — DR-99783
Hardened and tempered diamond blade with segmented rim for a faster cut. General purpose blade for use on concrete, bricks, stone, granite and marble. Suitable for dry and wet cutting, with optimum results when used wet. Compatible with most angle grinders with a 22.23mm bore.
| Stock number | 99783 |
|---|---|
| SKU | DR-99783 |
| Diameter x Bore | 125 x 22.23mm |
| Segment height | 10mm |
| Max r/min | 12,200rpm |
| Blade construction | Sintered |
| Blade Type | Segmented |
| For | Concreete, bricks, stone, granite and marble |
| Diameter | 125mm |
| Bore size | 22.23mm |
| Maximum speed | 12,200rpm |
| Kerf | 1.9mm |
| Weight | 0.106kg |
Supplied contents
1 x Segmented Diamond Blade, 125mm
Consumable Warranty

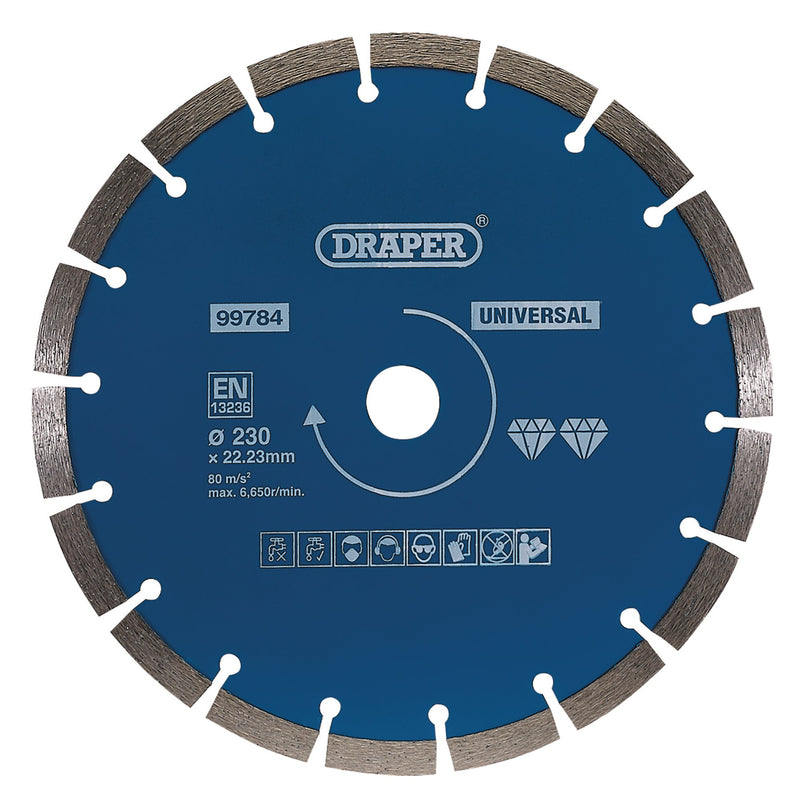

Segmented Diamond Blade, 230mm — DR-99784
Hardened and tempered diamond blade with segmented rim for a faster cut. General purpose blade for use on concrete, bricks, stone, granite and marble. Suitable for dry and wet cutting, with optimum results when used wet. Compatible with most angle grinders with a 22.23mm bore.
| Stock number | 99784 |
|---|---|
| SKU | DR-99784 |
| Diameter x Bore | 230 x 22.23mm |
| Segment height | 10mm |
| Max r/min | 6650 |
| Diameter | 230mm |
| Bore size | 22.23mm |
| Maximum speed | 6,650rpm |
| Kerf | 2.6mm |
| Blade construction | Sintered |
| Weight | 0.557kg |
Supplied contents
1 x Segmented Diamond Blade, 230mm
Consumable Warranty

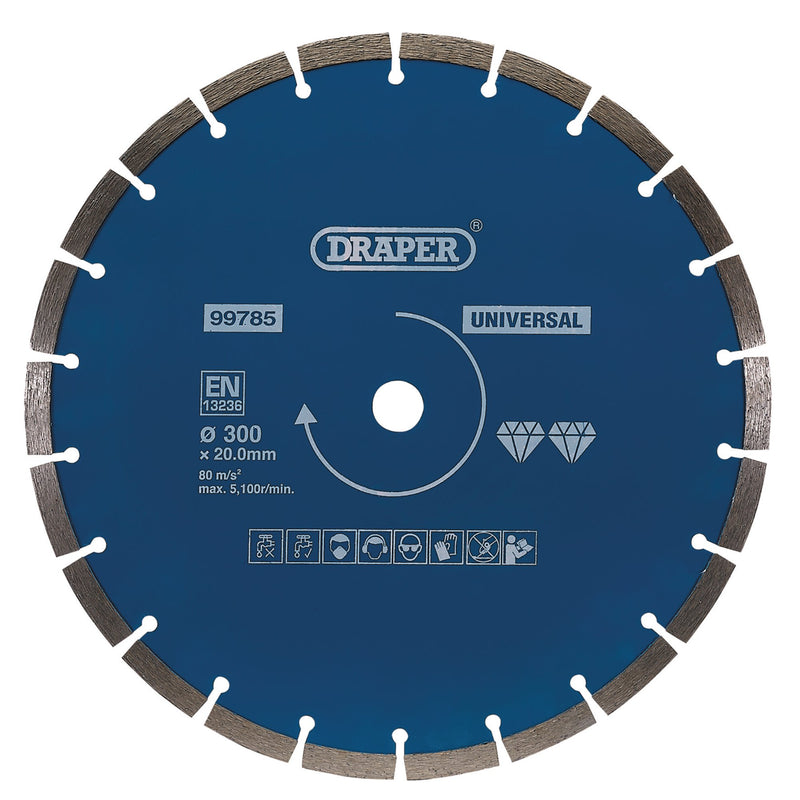

Segmented Diamond Blade, 300mm — DR-99785
Hardened and tempered diamond blade with segmented rim for a faster cut. General purpose blade for use on concrete, bricks, stone, granite and marble. Suitable for dry and wet cutting, with optimum results when used wet. Compatible with petrol saws with a 20mm bore.
| Stock number | 99785 |
|---|---|
| SKU | DR-99785 |
| Diameter x Bore | 300 x 20mm |
| Segment height | 10mm |
| Max r/min | 5,100rpm |
| Blade construction | Sintered |
| Blade Type | Segmented |
| For | Concreete, bricks, stone, granite and marble |
| Diameter | 300mm |
| Bore size | 20mm |
| Maximum speed | 5,100rpm |
| Kerf | 3.2mm |
| Weight | 1.212kg |
Supplied contents
1 x Segmented Diamond Blade, 300mm
Consumable Warranty
