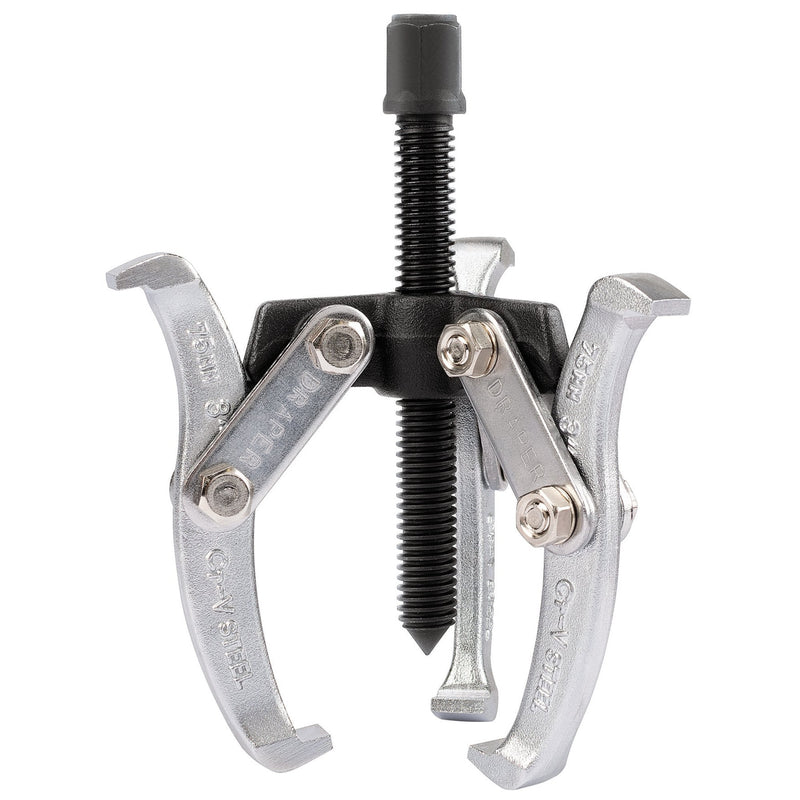

Draper Triple Leg Reversible Puller

SKU DR-13908 Barcode 5010559139088

£21.98 inc VAT
£18.32ex VAT
In Stock

50 available from our warehouse. Despatch times vary.

Delivery options at checkoutDespatch times vary by item.
Weight · 0.52kg
  • Expert UK product support
  • Authorised distributor
  • 30 day returns
Delivery & returns

Despatch times vary by item. Check the product-specific lead time shown on this page. Supplier-shipped and larger items may take longer.

Delivery options and transit times are shown at checkout. Transit time starts after despatch and excludes weekends and bank holidays unless the selected service states otherwise. Tracking is provided when available.

30 day returns on unused items in original packaging.

Description

Description

Puller with three reversible legs for external and internal pulling of gears, bearings, etc. Legs are forged carbon steel and have long and short reach facility. Yoke and thrust bolt are manufactured from carbon steel. Screw has a rolled thread with chemically blacked finish.

Features

  • Legs are forged carbon steel and have long and short reach facility

Specifications by model

Choose the specification above. Each model has its own stock number and supplied contents.

Triple Leg Reversible Puller, 65mm Reach x 75mm Spread — DR-13908
Stock number 13908
SKU DR-13908
Description Reversible Puller
Max. Reach 65mm
Max. Spread 75mm
Max reach 65mm
Max spread 75mm
Central screw size 11.8 x 124mm
Hexagonal head 14mm
Screw hardness 35-27 HRC
Weight 0.52kg

Supplied contents

1 x Triple Leg Reversible Puller, 65mm Reach x 75mm Spread

Lifetime

Instructions · Product data sheet

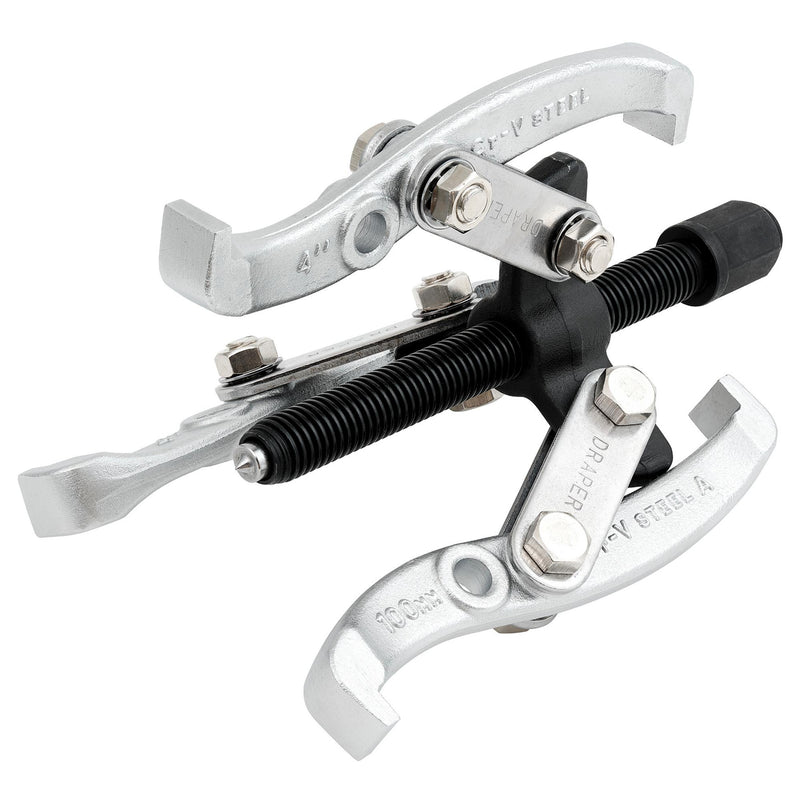

Triple Leg Reversible Puller, 102mm Reach x 110mm Spread — DR-13909
Stock number 13909
SKU DR-13909
Description Reversible Puller
Max. Reach 102mm
Max. Spread 110mm
Max reach 102mm
Max spread 110mm
Central screw size 14.0 x 156mm
Screw hardness 35–37 HRC
Hexagonal head 17mm
Weight 0.95kg

Supplied contents

1 x Triple Leg Reversible Puller, 102mm Reach x 110mm Spread

Lifetime

Instructions · Product data sheet

Additional models

This puller has triple reversible legs for the external and internal pulling of gears, bearings etc. The legs are forged from carbon steel and have a long and short reach facility, while the arms are zinc plated for corrosion resistance and easy cleaning.

Features

  • Triple reversible legs for internal and external use
  • Adjustable pulling frame
  • Zinc plated for corrosion protection
  • Screw has a rolled thread with a chemically blackened finish
Stock number 08442
SKU DR-08442
Description Reversible Puller
Max. Reach 120mm
Max. Spread 150mm
Reach 120mm
Spread 150mm
Central screw size 15.7 x 190mm
Hexagonal head 19mm
Weight 1.56kg

Supplied contents

1 x Triple Leg Reversible Puller, 120mm Reach and 150mm Spread

12 months

Instructions · Product data sheet
