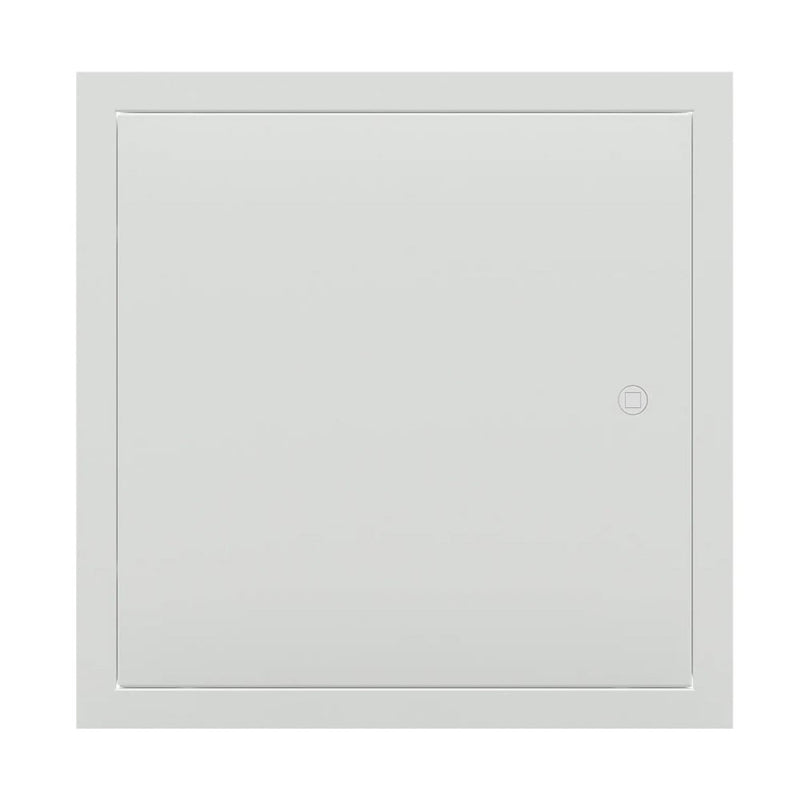

FlipFix Access Panels – 1 Hour Fire Rated Picture Frame – Standard Lock
Trade Counter Direct presents the FlipFix Access Panels, expertly engineered for rapid installation and dependable performance in both wall and ceiling applications. These 1 hour fire rated access panels feature a durable metal-faced door, a 25 mm picture frame and a standard budget lock, making them ideal for secure inspection access in commercial and domestic settings.
The listed panel size refers to the structural opening required. If you need to cut the hole before receiving the panel, cut the aperture to the stated panel size, for example a 300 x 300 mm panel requires a 300 x 300 mm opening. The 25 mm picture frame then sits neatly and discreetly over the face of the wall or ceiling, covering the edge of the opening for a clean, professional finish.

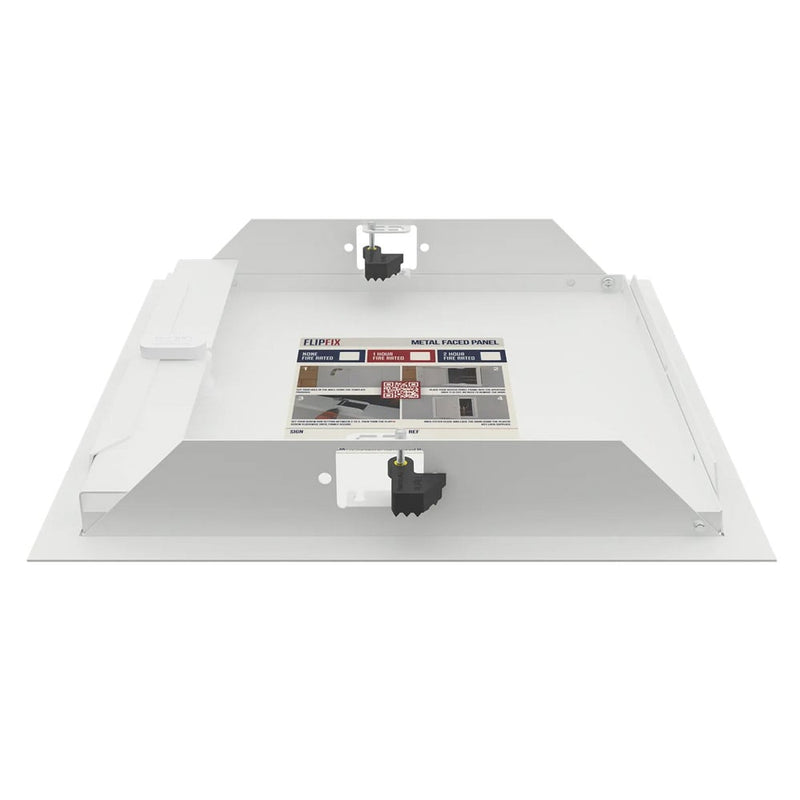

Constructed from high-quality 0.9 mm Zintec steel and finished in RAL 9010 30% gloss powder coating, these FlipFix MD panels provide a robust and attractive access solution. Each panel is supplied with a convenient pop-out cutting template to support faster installation, while the fully demountable door and screw pin hinge allow easy access for inspection and maintenance.
Features
- 1 hour fire resistance rating for enhanced safety and compliance
- Suitable for both wall and ceiling applications
- Constructed from 0.9 mm Zintec steel for excellent durability
- 25 mm picture frame overlaps the opening for a neat, discreet finish
- Panel size matches the structural opening size required for cutting
- Standard budget lock included for secure inspection access

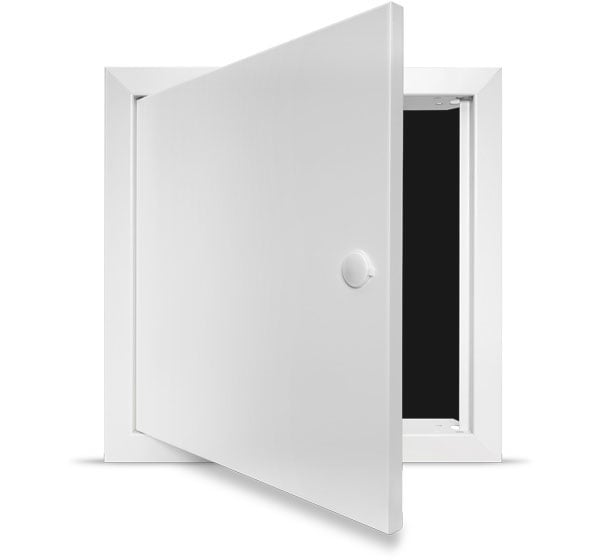

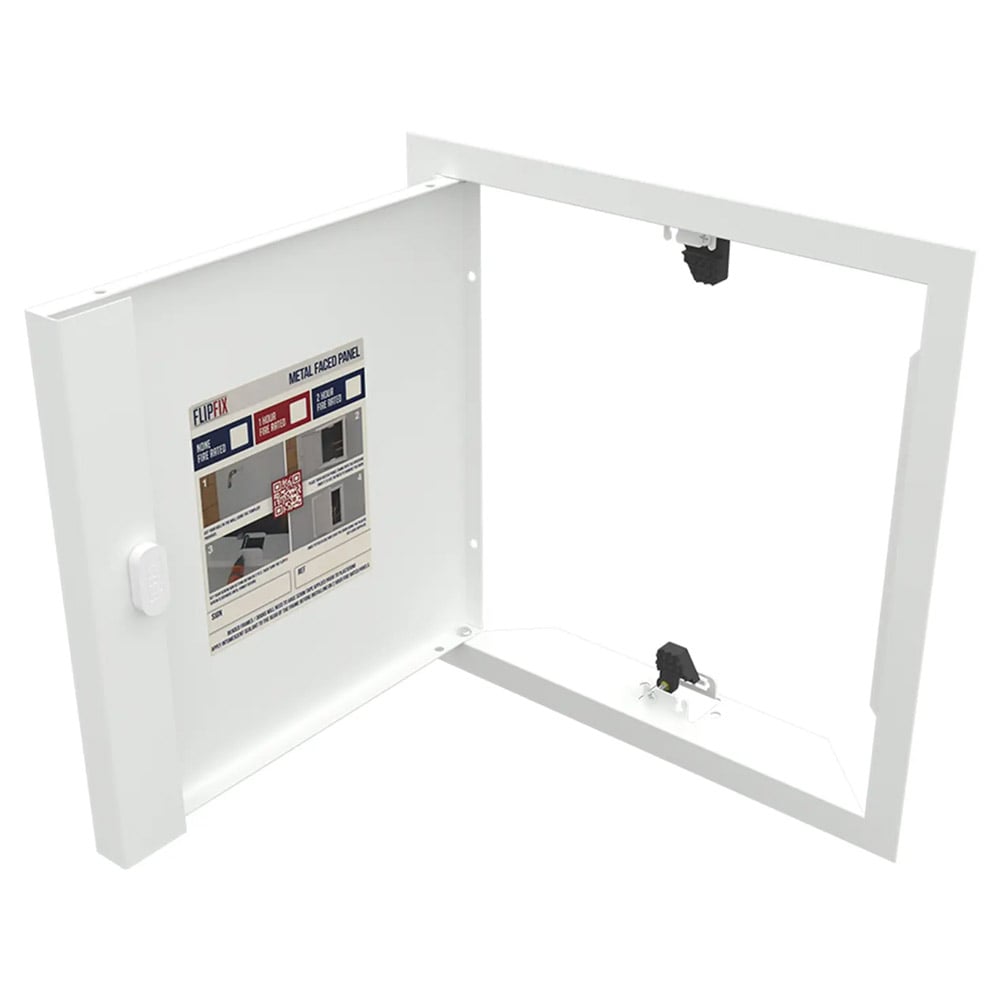

- Fully demountable metal-faced door for convenient maintenance access
- Screw pin hinge for reliable door operation
- Powder coated in RAL 9010 30% gloss for a clean white finish

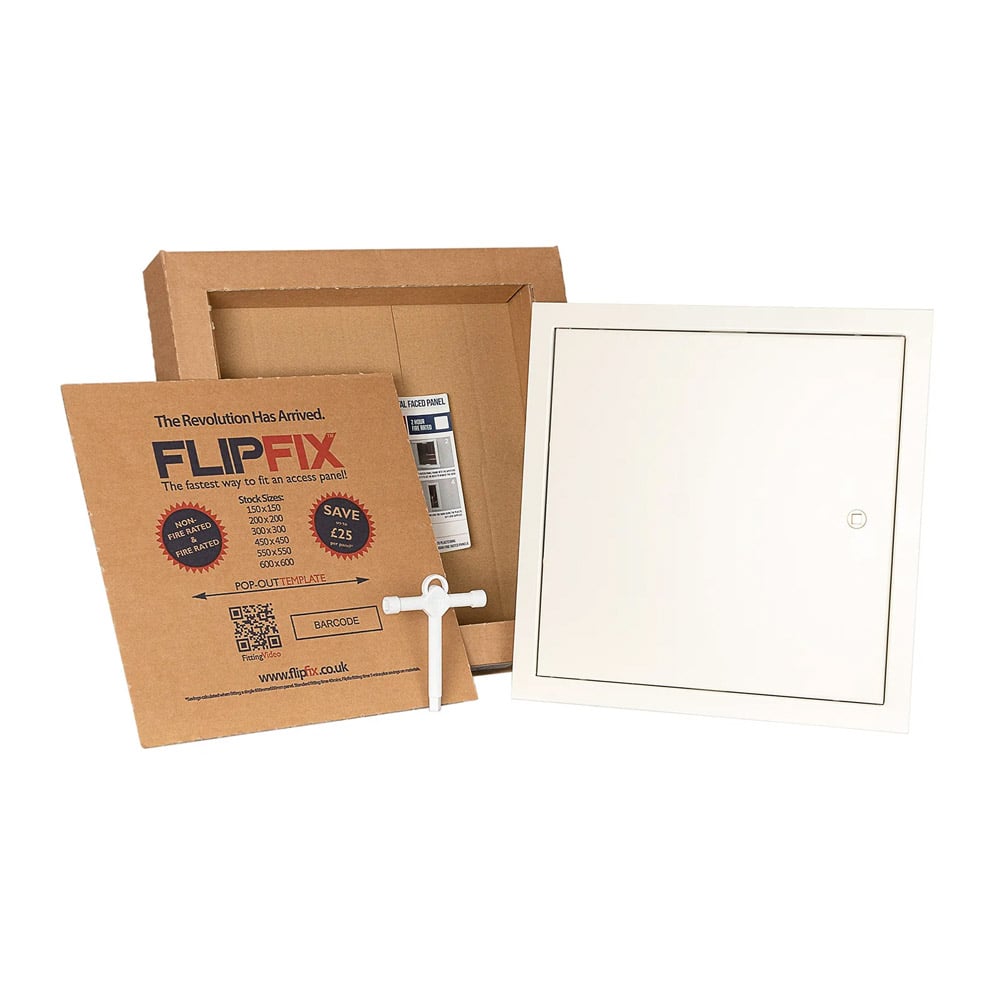

- Supplied with a pop-out cutting template to assist installation
- FlipFix design helps reduce the need for additional fixing materials such as wood, screws or glue
Specifications
| Range/Series | FlipFix MD |
|---|---|
| Fire Rating | 1 Hour |
| Frame Type | 25 mm Picture Frame |
| Lock Type | Standard Budget Lock |
| Material | 0.9 mm Zintec Steel |
| Finish | Powder Coated, RAL 9010 30% Gloss |
| Door Type | Fully Demountable, Metal-Faced |
| Hinge Type | Screw Pin Hinge |
| Suitable Applications | Walls and Ceilings |
| Structural Opening / Cut-Out Size |
150 x 150 mm 200 x 200 mm 300 x 300 mm 350 x 350 mm 450 x 450 mm 550 x 550 mm 600 x 300 mm 600 x 600 mm 900 x 600 mm 1200 x 600 mm |
| Overall Size Including Frame |
199 x 199 mm 248 x 248 mm 348 x 348 mm 398 x 398 mm 498 x 498 mm 598 x 598 mm 648 x 347 mm 648 x 648 mm 948 x 648 mm 1248 x 648 mm |
| Installation Guidance | The structural opening/cut-out should match the selected panel size. The 25 mm picture frame sits over the surrounding surface to cover the edge of the opening. |
| Installation Aid | Pop-Out Cutting Template Included |
