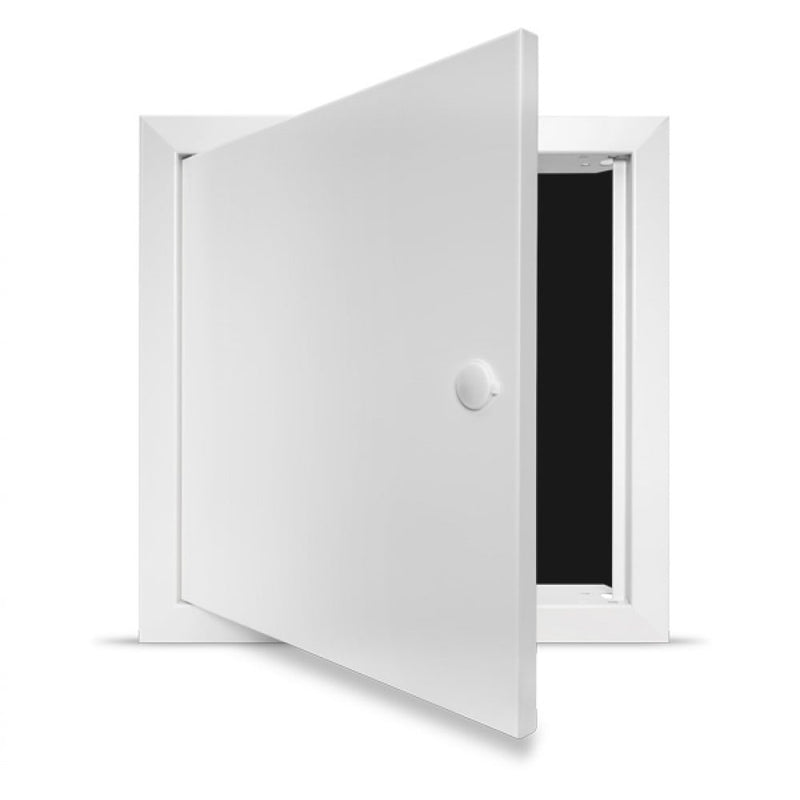

FlipFix Access Panels – Non Fire Rated Picture Frame with Standard Lock
The FlipFix Access Panel, available from Trade Counter Direct, is engineered for rapid installation in walls and ceilings where inspection access is required. Featuring a metal-faced, fully demountable door, this panel is designed to fit seamlessly into a pre-cut opening using the included "pop-out" cutting template, ensuring a precise and efficient fit every time.
Constructed from durable 0.9 mm Zintec steel and finished with a powder-coated RAL 9010 (30% gloss), the FlipFix panel offers a professional appearance and robust performance. The 25 mm picture frame and standard budget lock provide secure, discreet access for inspection purposes, though it is not intended for personal entry.
Features
- Quick and simple installation using the supplied pop-out cutting template
- Manufactured from 0.9 mm Zintec steel for strength and durability
- Powder coated in RAL 9010 (30% gloss) for a clean, professional finish
- 25 mm picture frame for a neat, unobtrusive appearance
- Fully demountable metal-faced door with screw pin hinge
- Fitted with a standard budget lock for secure inspection access
- Suitable for both wall and ceiling applications
- Eliminates the need for additional materials such as wood, screws, or glue
- Reduces installation time by up to 80% compared to standard access panels
Specifications
| Range/Series | FlipFix MD |
|---|---|
| Material | 0.9 mm Zintec Steel |
| Finish | Powder coated RAL 9010 (30% gloss) |
| Frame Type | 25 mm Picture Frame |
| Lock Type | Standard budget lock |
| Door | Fully demountable, metal-faced, screw pin hinge |
| Fire Rating | Non fire rated |
| Applications | Walls and ceilings (inspection access only) |
| Available Sizes (Structural Opening) |
150 x 150 mm 230 x 150 mm 200 x 200 mm 300 x 300 mm 350 x 350 mm 450 x 450 mm 550 x 550 mm 600 x 300 mm 600 x 600 mm 900 x 600 mm 1200 x 600 mm |
| Available Sizes (Including Frame) |
199 x 199 mm 278 x 199 mm 248 x 248 mm 348 x 348 mm 398 x 398 mm 498 x 498 mm 598 x 598 mm 648 x 347 mm 648 x 648 mm 948 x 648 mm 1248 x 648 mm |
