FlipFix Plasterboard Access Panels - Standard Lock Fire Rating

FlipFix Plasterboard Access Panels - Non Fire Rated Beaded Frame - Standard Lock

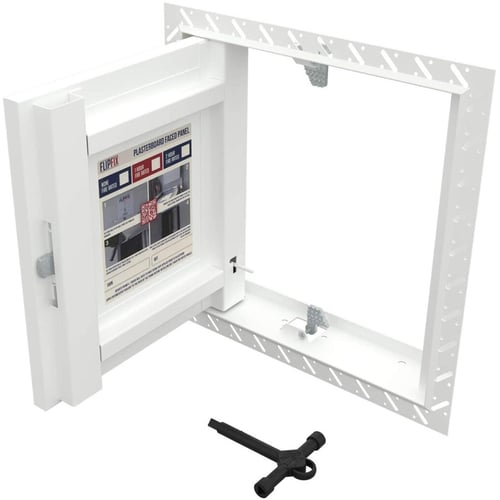

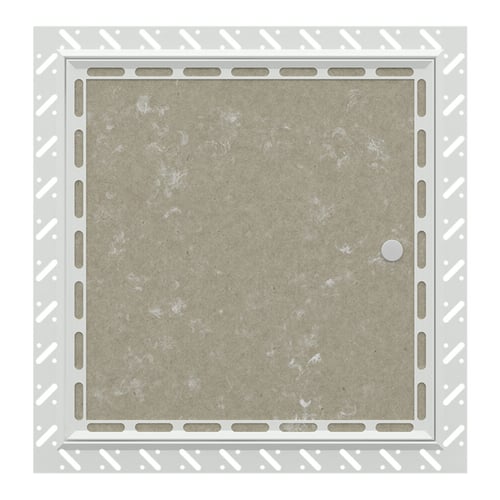

The FlipFix plasterboard access panel is designed to fit into the structural membrane of a joint-less plasterboard ceiling/wall system.

The panels are manufactured with a beaded frame and a flush beaded face plasterboard door with a standard budget lock.

The unique fitting device called FlipFix allows installation without any additional wood, screws or glue. We advise tape and jointing prior to a wet finish being applied.

Constructed from Zintec steel, with a fully demountable plasterboard door and 56mm deep frame with fixing holes. The door is fitted with a screw pin hinge and is lockable witha standard budget lock. These panels are powder coated with RAL9010 30% gloss.

Sizes Available:

• 150 x 150mm Structural opening (199 x 199mm Including Frame)
• 200 x 200mm Structural opening (248 x 248mm Including Frame)
• 300 x 300mm Structural opening (348 x 348mm Including Frame)
• 350 x 350mm Structural opening (399 x 399mm Including Frame)
• 450 x 450mm Structural opening (498 x 498mm Including Frame)
• 550 x 550mm Structural opening (598 x 598mm Including Frame)
• 600 x 300mm Structural opening (648 x 347mm Including Frame)
• 600 x 600mm Structural opening (648 x 648mm Including Frame)

Features and benefits:

• Suitable for Walls and Ceilings
• Removes all additional material Costs E.g. wood, screws and glue
• saves up to 80% of the time taken to fit a standard Access Panel.
