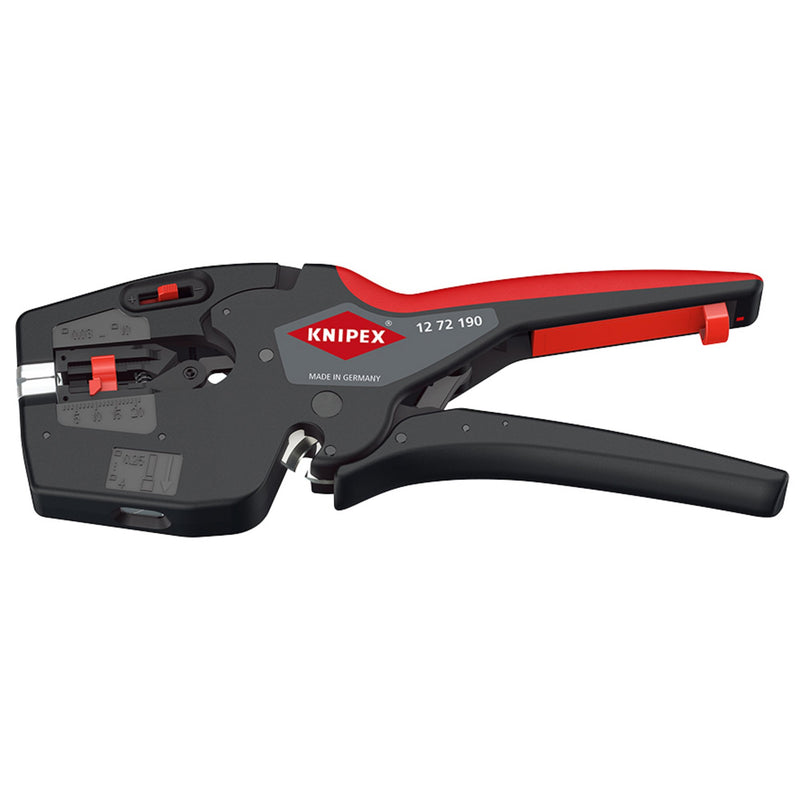

KNIPEX 12 72 190 SB NexStrip® Multi-Tool for Electricians,190mm

Perfect crimping: fast and even square crimping for individual wire ferrules, the ratchet crimping mechanism guarantees the required crimping pressure. Precise stripping: automatically adapts to the respective cable diameter and ensures consistent stripping lengths with the adjustable length stop especially with repetitive work. Multi-component grips ensure non-slip, comfortable handling. Quick, precise square crimp of single wire ferrules according to DIN 46228 parts 1+4, self-adjusts for sizes 0.25 – 4 mm² / 2 x 2.5 mm² – allows for quick crimping between different sizes. Repetitive, high crimping quality due to ratcheting mechanism with a complete crimping cycle. Stripping with fine adjustment – for optimal adjustment to special materials or temperature conditions for flexible and solid conductors between 0.03 and 10 mm² (AWG 32-8). Clean cut of copper and aluminium conductors fine-stranded up to 10 mm² (AWG 8), solid up to 6 mm² (AWG 10). High-quality housing made of glass fibre reinforced plastic. For the electrical trade: for domestic installations and wiring of electronical devices, such as PLC (programmable logic controller).

Features

• Perfect crimping: fast and even square crimping for individual wire ferrules, the ratchet crimping mechanism guarantees the required crimping pressure
• Precise stripping: automatically adapts to the respective cable diameter and ensures consistent stripping lengths with the adjustable length stop especially with repetitive work
• Multi-component grips ensure non-slip, comfortable handling
• Quick, precise square crimp of single wire ferrules according to DIN 46228 parts 1+4, self-adjusts for sizes 0.25 – 4 mm² / 2 x 2.5 mm² – allows for quick crimping between different sizes
• Repetitive, high crimping quality due to ratcheting mechanism with a complete crimping cycle
• Stripping with fine adjustment – for optimal adjustment to special materials or temperature conditions for flexible and solid conductors between 0.03 and 10 mm² (AWG 32-8)
• Clean cut of copper and aluminum conductors fine-stranded up to 10 mm² (AWG 8), solid up to 6 mm² (AWG 10)
• High-quality housing made of glass fibre reinforced plastic
• For the electrical trade: for domestic installations and wiring of electronical devices, such as PLC (programmable logic controller)

Supplied contents

1 x KNIPEX 12 72 190 SB NexStrip® Multi-Tool for Electricians,190mm

Lifetime

Product data sheet
