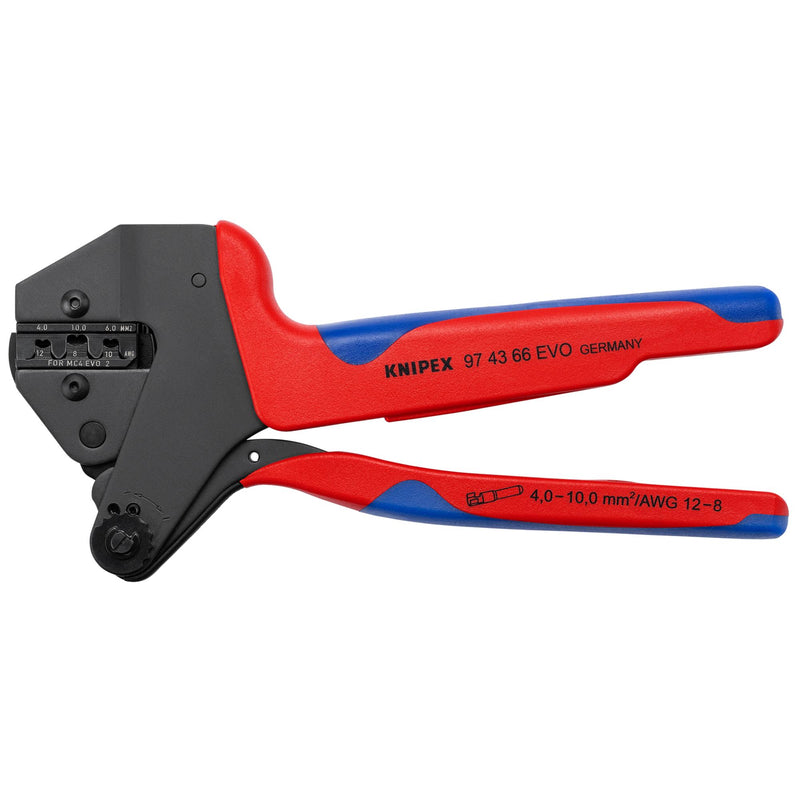

KNIPEX 97 43 66 EVO Crimp System Pliers, 200mm
SKU DR-26137 Barcode 5059482103629
50 available from our warehouse. Despatch times vary.
Pay in 3 interest-free with shopPay or PayPal
- Expert UK product support
- Authorised distributor
- 30 day returns
Delivery & returns
Despatch times vary by item. Check the product-specific lead time shown on this page. Supplier-shipped and larger items may take longer.
Delivery options and transit times are shown at checkout. Transit time starts after despatch and excludes weekends and bank holidays unless the selected service states otherwise. Tracking is provided when available.
30 day returns on unused items in original packaging.
Description
Description
Only one tool for almost 1000 crimping applications: usable with all crimping dies and locators 97 49 XX. Specially modified system pliers: optimised for MC4EVO 2 connectors up to 10 mm². Professional standard for large photovoltaic installations. Almost parallel crimping motion. Consistently high crimping quality due to precision dies and ratchet mechanism (unlockable). Crimping pressure has been set precisely (calibrated) in the factory and can be adjusted. Optimum transmission of force due to lever action for fatigue-reduced operation. For one- and two-handed operation. The 97 43 66 EVO includes a locator for precise positioning of MC4 EVO 2. An additional locator is available for all MC4 series solar connectors (97 49 71 1). Crimping dies for applications that go beyond the range offered are available on request. Special quality chrome vanadium electric steel, oil-hardened. - Application: MC4 EVO2- Capacity in square millimetres: 4.0 — 10.0mm²- AWG: 12 / 10 / 8
Features
- Only one tool for almost 1000 crimping applications: usable with all crimping dies and locators 97 49 XX
- Specially modified system pliers: optimised for MC4EVO 2 connectors up to 10 mm²
- Professional standard for large photovoltaic installations
- Almost parallel crimping motion
- Consistently high crimping quality due to precision dies and ratchet mechanism (unlockable)
- Crimping pressure has been set precisely (calibrated) in the factory and can be adjusted
- Optimum transmission of force due to lever action for fatigue-reduced operation
- For one- and two-handed operation
- The 97 43 66 EVO includes a locator for precise positioning of MC4 EVO 2. An additional locator is available for all MC4 series solar connectors (97 49 71 1)
- Crimping dies for applications that go beyond the range offered are available on request
| Stock number | 26137 |
|---|---|
| SKU | DR-26137 |
| Length | 200mm |
Supplied contents
1 x KNIPEX 97 43 66 EVO Crimp System Pliers, 200mm
