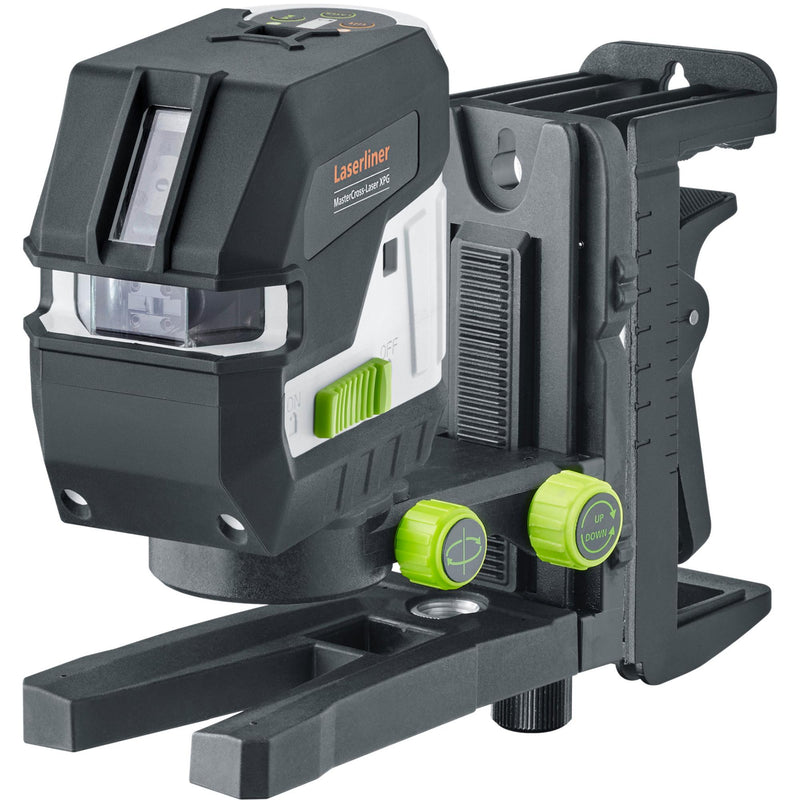

Laserliner 031.430L MasterCross-Laser XPG Pro Cross-Line Laser
SKU DR-32163 Barcode 4021563736478
50 available from our warehouse. Despatch times vary.
Pay in 3 interest-free with shopPay or PayPal
- Expert UK product support
- Authorised distributor
- 30 day returns
Delivery & returns
Despatch times vary by item. Check the product-specific lead time shown on this page. Supplier-shipped and larger items may take longer.
Delivery options and transit times are shown at checkout. Transit time starts after despatch and excludes weekends and bank holidays unless the selected service states otherwise. Tracking is provided when available.
30 day returns on unused items in original packaging.
Description
Description
Its bright laser cross makes this cross-line laser with green laser technology the laser of choice for precise alignment of horizontals, verticals and slopes. It also projects two side points and two plumb points that are characterised by an especially high degree of visibility and that are at a 90° angle to each other. This enables efficient plumb lining, even in very high rooms. Markings can be easily transferred from wall to wall with the side laser points, for example, when painting, aligning wooden panels or installing electrics. The clamping and wall bracket allows the laser to be hung up or attached to metallic surfaces or ceiling profiles. The vernier adjustment mechanism enables precise vertical adjustment of the laser lines to edges. Supplied with battery pack.
Features
- Accurate horizontal and vertical alignment of objects
- Good visibility through green laser technology
- 4 Point Projection: Laser points top, bottom and at the side in 90° configuration for exact marking transfer from wall to wall
- Plumb function for synchronous working on floor and ceiling
- Especially bright plumb points for use in buildings with high rooms
- Magnetic clamp and wall bracket for hanging, horizontal and vertical clamping to profiles, and attaching to metallic surfaces
- MicroControl: Vernier adjustment mechanism for precise vertical adjustment of the laser lines to edges and adjusting screw to adapt the bracket to different profile thicknesses
- Easy alignment of slopes with manual tilt function
- Reliable measurement through automatic power off with ADS tilt
- Supplied with battery pack
| Stock number | 32163 |
|---|---|
| SKU | DR-32163 |
| Horizontal/vertical levelling | Yes |
| Self-Levelling Range | ± 2.5° |
| Manual slope function | Yes |
| Plumb laser (up/down) | Yes |
| Laser points (left/right) | Yes |
| Replaceable battery system | Yes |
| Hand receiver mode | Yes |
| Tilt warning function | Yes |
| Accuracy | ±0.2 mm/m |
| Levelling | Automatic |
| Visibility (Typical)* | 55 m |
| Laser Wavelength | 515 nm |
| Laser Class | 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021) |
| Power Supply | Li-ion battery pack 7.4V / 2.6Ah / 19.24Wh |
| Operating Time | approx. 8 hours |
| Operating Conditions | 0°C … 50°C |
| Dimensions (W x H x D) | 128 mm x 110 mm x 67 mm |
| Weight | 588g (incl. Battery Pack) |
Supplied contents
1 x Laserliner 031.430L MasterCross-Laser XPG Pro Cross-Line Laser 1 x CrossGrip Plus 2 x HighCapacityPack (Li-Ion) 1 x Network/charging device incl. international adapter 1 x USB-C-cable 1 x Carrying case
