Laserliner 036.703A PocketPlane-Laser 3G Set Three-Dimensional Laser, 150cm
SKU DR-32165 Barcode 4021563725496
50 available from our warehouse. Despatch times vary.
Pay in 3 interest-free with shopPay or PayPal
- Expert UK product support
- Authorised distributor
- 30 day returns
Delivery & returns
Despatch times vary by item. Check the product-specific lead time shown on this page. Supplier-shipped and larger items may take longer.
Delivery options and transit times are shown at checkout. Transit time starts after despatch and excludes weekends and bank holidays unless the selected service states otherwise. Tracking is provided when available.
30 day returns on unused items in original packaging.
Description
Description
This three-dimensional, compact and highly visible green laser projects one horizontal and two vertical laser circles for precise alignment of objects. The laser crosses form a plumb function for working simultaneously on floors and ceilings. A manual slope mode is available for creating gradients. This laser is all you need for demanding projects thanks to the comprehensive range of accessories. Multi-section telescopic tripod legs and a 30 cm crank on this compact tripod provide an extensive adjustment range. The PocketWallHolder is a multi-functional, height-adjustable, magnetic bracket for attaching to walls, metal items and tripods with a 1/4” or 5/8” thread. Supplied with battery.
Features
- Three-dimensional laser with a horizontal and two vertical 360° laser circles
- Accurate horizontal and vertical alignment of objects
- Good visibility through green laser technology
- Easy alignment of slopes with manual tilt function
- Plumb function for synchronous working on floor and ceiling
- Light and robust compact tripod 150cm
- Crank height adjustment and telescopic tripod legs
- Height-adjustable, magnetic, multi-function bracket with 1/4” and 5/8” thread for attaching to walls, metal items and tripods
- Magnetic target plate with stand, nail hole and dual scale – perfect for working close to ceilings
- Supplied with battery
| Stock number | 32165 |
|---|---|
| SKU | DR-32165 |
| Horizontal/vertical levelling | Yes |
| Battery and mains operation | Yes |
| Manual slope function | Yes |
| Hand receiver mode | Yes |
| Self-Levelling Range | ± 3.5° (horizontal) |
| Accuracy | ±0.3 mm/m |
| Levelling | Automatic |
| Visibility (Typical)* | 30 m |
| Laser Wavelength | 515 nm |
| Laser Class | 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021) |
| Power Supply | Li-ion battery pack 3.7V / 3.6Ah / 13.32Wh Power adaptor 5V / DC / 2A |
| Operating Time | with 3 laser levels: approx. 9 hours |
| Operating Conditions | 0°C … 50°C |
| Storage Conditions | -10°C … 70°C |
| Dimensions (W x H x D) | 104 mm x 97 mm x 76 mm |
| Weight | 388g (incl. Battery Pack) |

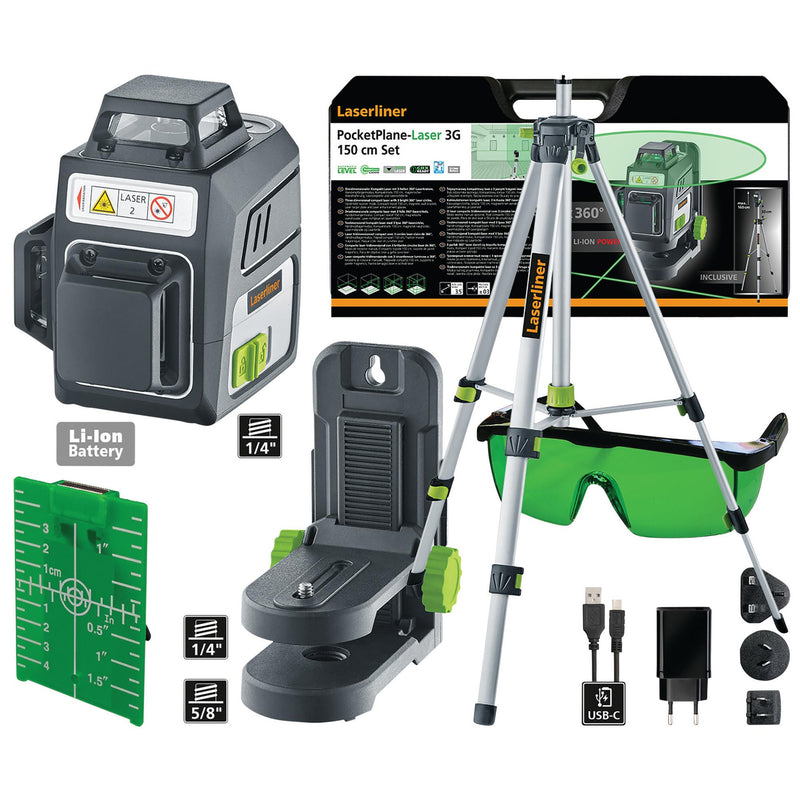

Supplied contents
1 x Laserliner 036.703A PocketPlane-Laser 3G Set Three-Dimensional Laser, 150cm 1 x Compact tripod 150 cm 1 x PocketWallHolder 1 x Magnetic target plate green 1 x Laser enhancement glasses 1 x Li-ion battery pack 1 x Network/charging device incl. international adapter 1 x USB-C-cable 1 x Carrying case
