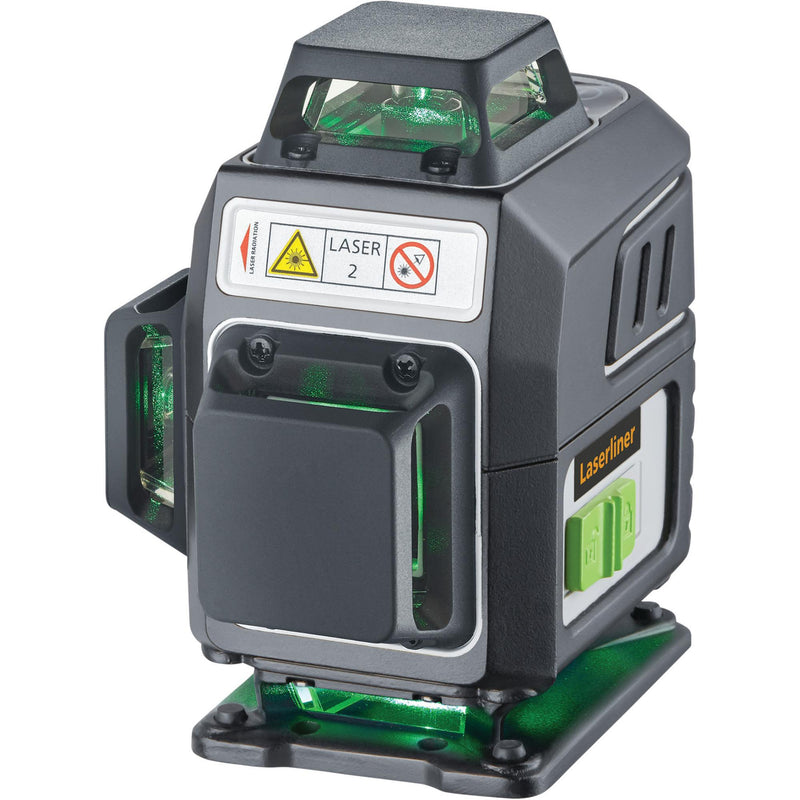

Laserliner 036.705A PocketPlane-Laser 4G Three-Dimensional Laser
SKU DR-32166 Barcode 4021563740284
50 available from our warehouse. Despatch times vary.
Pay in 3 interest-free with shopPay or PayPal
- Expert UK product support
- Authorised distributor
- 30 day returns
Delivery & returns
Despatch times vary by item. Check the product-specific lead time shown on this page. Supplier-shipped and larger items may take longer.
Delivery options and transit times are shown at checkout. Transit time starts after despatch and excludes weekends and bank holidays unless the selected service states otherwise. Tracking is provided when available.
30 day returns on unused items in original packaging.
Description
Description
This three-dimensional, practical and highly visible green laser projects two horizontal and two vertical laser circles for precise alignment of objects. Thanks to the horizontal laser circle at the very bottom, the device is particularly suited to applications close to the floor, such as determining floor heights and aligning skirting boards. The laser crosses form a plumb function for working simultaneously on floors and ceilings. A manual slope mode is available for creating gradients. This laser is an extremely useful tool for demanding projects due its the comprehensive range of accessories. The PocketWallHolder is a multi-functional, height-adjustable, magnetic bracket for attaching the laser to walls, metal items and tripods with a 1/4” or 5/8” thread. Battery not supplied.
Features
- Three-dimensional laser with two horizontal and two vertical 360° laser circles
- Accurate horizontal and vertical alignment of objects
- Optimum solution for applications very close to the floor (determining floor heights, aligning skirting boards)
- Good visibility through green laser technology
- Height-adjustable, magnetic, multi-function bracket with 1/4” and 5/8” thread for attaching to walls, metal items and tripods
- Magnetic target plate with stand, nail hole and dual scale – perfect for working close to ceilings
- Laser enhancement glasses for optimum visibility of laser lines with the human eye
- Time-saving automatic alignment
- Integrated hand-held receiver mode for outdoor applications
- Battery not supplied
| Stock number | 32166 |
|---|---|
| SKU | DR-32166 |
| Horizontal/vertical levelling | Yes |
| Manual slope function | Yes |
| Battery and mains operation | Yes |
| Hand receiver mode | Yes |
| Self-Levelling Range | ± 3.5° (horizontal) |
| Accuracy | ±0.3 mm/m |
| Levelling | Automatic |
| Visibility (Typical)* | 30 m |
| Laser Wavelength | 515 nm |
| Laser Class | 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021) |
| Power Supply | Li-ion battery pack 3.7V / 4.0Ah / 14.8Wh |
| Operating Time | with 3 laser levels: approx. 7 hours |
| Operating Conditions | 0°C … 50°C |
| Storage Conditions | -10°C … 70°C |
| Dimensions (W x H x D) | 103 mm x 106 mm x 76 mm |
| Weight | 464g |
Supplied contents
1 x Laserliner 036.705A PocketPlane-Laser 4G Three-Dimensional Laser 1 x PocketWallHolder 1 x TopHolder 1 x Magnetic target plate green 1 x Laser enhancement glasses 1 x Network/charging device incl. international adapter 1 x USB-C-cable 1 x Carrying case
4 years
