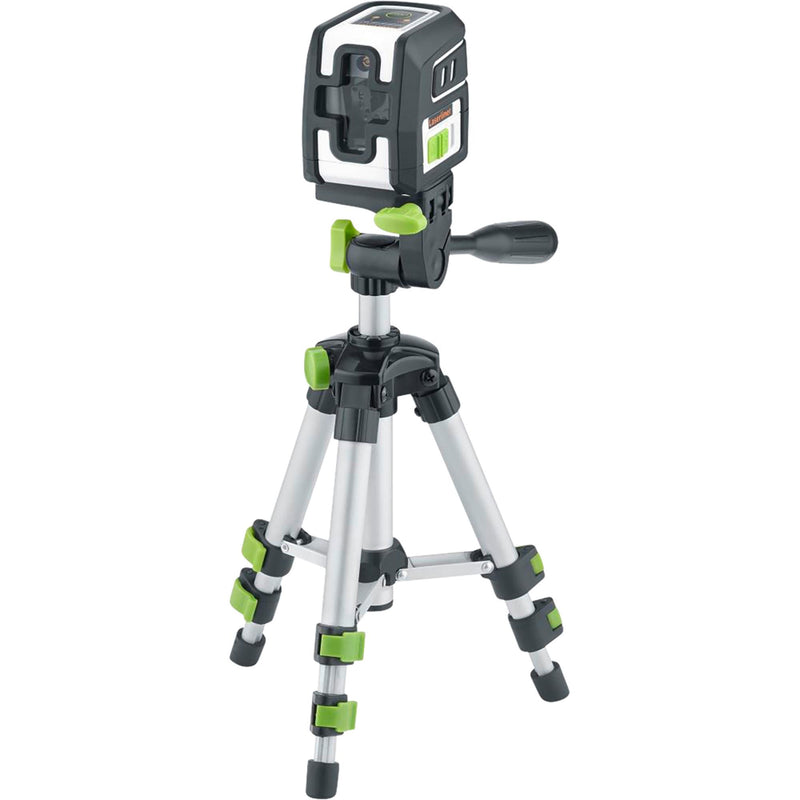

Laserliner 036.733E SmartCross-Laser GX Work Set
SKU DR-38164 Barcode 4021563731817
50 available from our warehouse. Despatch times vary.
Pay in 3 interest-free with shopPay or PayPal
- Expert UK product support
- Authorised distributor
- 30 day returns
Delivery & returns
Despatch times vary by item. Check the product-specific lead time shown on this page. Supplier-shipped and larger items may take longer.
Delivery options and transit times are shown at checkout. Transit time starts after despatch and excludes weekends and bank holidays unless the selected service states otherwise. Tracking is provided when available.
30 day returns on unused items in original packaging.
Description
Description
This cross-line laser projects a highly visible green laser cross for precise horizontal and vertical alignment of objects. It also has a manual slope function for easy creation of gradients and a ¼” thread for mounting on the 45 cm compact tripod supplied, making it ideal for low-to-the-ground use. It has multi-section telescopic legs and a three-way tripod head for inclining, lowering, and tilting. The laser can also be used for outdoor applications and alignment work at long distances with the integrated hand-held receiver mode.
Features
- Accurate horizontal and vertical alignment of objects
- Good visibility through green laser technology
- Easy alignment of slopes with manual tilt function
- Light and robust compact 45 cm tripod, ideal for ground level applications
- 3-way tripod head for inclining, lowering and rotating the measuring tool
- Integrated hand-held receiver mode for outdoor applications
- Visual signals indicate when the device is outside its self-levelling range
- Pendulum restraint for safe transport
- Time-saving automatic alignment
- Housing with recycled content
| Stock number | 38164 |
|---|---|
| SKU | DR-38164 |
| Horizontal/vertical levelling | Yes |
| Manual slope function | Yes |
| Battery operation | Yes |
| Self-Levelling Range | ± 4° |
| Accuracy | ±0.3 mm/m |
| Levelling | Automatic |
| Visibility (Typical) | 40m |
| Laser Wavelength | 515nm |
| Laser Class | 2 / < 1 mW |
| Power Supply | 2 x 1.5V LR6 (AA) |
| Operating Time | approx. 6 hours |
| Operating Conditions | -10°C … 50°C, max. humidity 80% rH, no condensation, max. working altitude 4000 m above sea level |
| Storage Conditions | -20°C … 70°C, max. humidity 85% rH |
| Dimensions (W x H x D) | 84mm x 76mm x 62mm |
| Weight | 276g (incl. battery) |
Supplied contents
1 x SmartCross-Laser GX 1 x Compact tripod 45 cm 1 x Batteries
