Laserliner 052.205A Cubus 210 S Set Rotary Laser Kit, 1500mm
SKU DR-32170 Barcode 4021563715015
50 available from our warehouse. Despatch times vary.
Pay in 3 interest-free with shopPay or PayPal
- Expert UK product support
- Authorised distributor
- 30 day returns
Delivery & returns
Despatch times vary by item. Check the product-specific lead time shown on this page. Supplier-shipped and larger items may take longer.
Delivery options and transit times are shown at checkout. Transit time starts after despatch and excludes weekends and bank holidays unless the selected service states otherwise. Tracking is provided when available.
30 day returns on unused items in original packaging.
Description
Description
This long range, fully automatic rotary laser is ideal for excavation work. The robust device provides precise levelling of horizontals, verticals and slopes. A 90° reference beam provides plumb-lining and aligning for partitions. Available modes include spot, scan, rotary and hand-held receiver. The combination of light-weight tripod, laser receiver and measuring staff is ideal for determining and working with reference dimensions. All functions can be easily controlled with the remote control up to a maximum distance of 30 metres. In the event of external influences, the device shuts down automatically to prevent measurement errors. The battery pack can be used and charged at the same time which means users can work without interruption.
Features
- Exact horizontal and vertical alignment of objects
- Long range, ideal for excavation work
- The 90° reference beam is provided to plumb and align partition walls
- Reliable measurement through automatic power off with ADS tilt
- Time-saving fully automatic alignment by means of automatic sensor
- Long operating life due to powerful HighCapacityPack with lithium-ion technology
- Extremely simple operation for practical use
- Manual alignment of slopes
- Laser modes: spot, scan, rotary and hand receiver mode
| Stock number | 32170 |
|---|---|
| SKU | DR-32170 |
| Horizontal/vertical levelling | Yes |
| Hand receiver mode | Yes |
| Scan mode | Yes |
| Spot mode | Yes |
| Precision sensor levelling | Yes |
| Manual slope function | Yes |
| Battery and mains operation | Yes |
| Anti-Drift-System (ADS) | Yes |
| Tilt warning function | Yes |
| Self-Levelling Range | ± 4° |
| Accuracy | ±0.15 mm/m |
| Levelling | Automatic horizontal / vertical levelling with electronic levels and motors |
| Laser Wavelength | 635 nm |
| Laser Class | 2 / < 1 mW (EN 60825-1:2014/A11:2021 / EN 50689:2021) |
| Protection Class | IP 66 |
| Power Supply | Li-ion battery pack 7.4V / 2.6Ah / 19.24Wh |
| Operating Time | approx. 20 hours |
| Battery Recharging Time | approx. 4 hours |
| Operating Conditions | -10°C … 50°C |
| Storage Conditions | -10°C … 70°C |
| Dimensions (W x H x D) | 130 mm x 160 mm x 145 mm |
| Weight | 1300g |

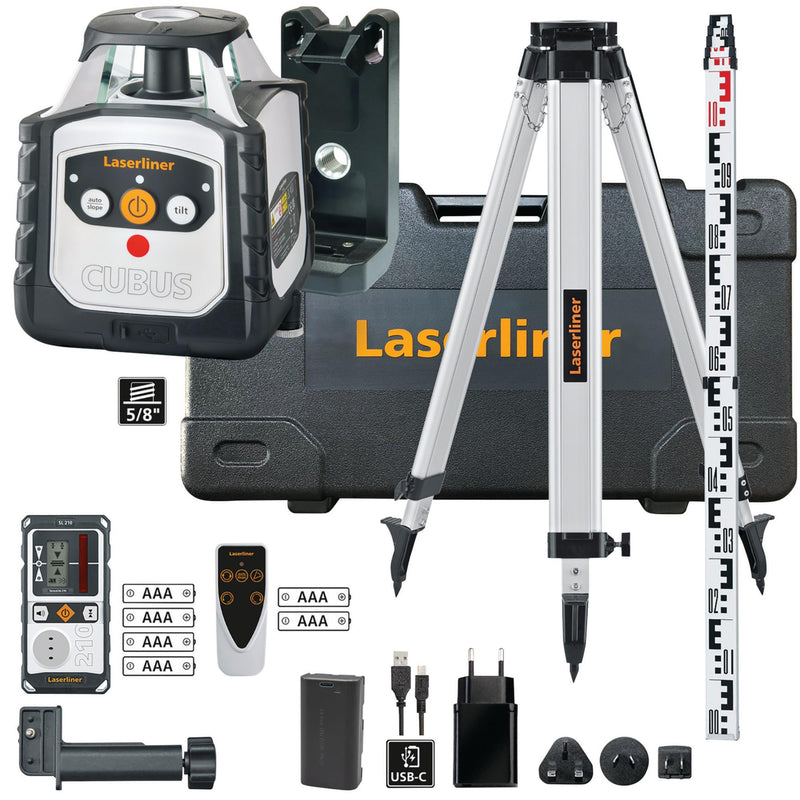

Supplied contents
1 x Laserliner 052.205A Cubus 210 S Set Rotary Laser Kit, 1500mm 1 x SensoLite 210 1 x Light-weight tripod 150 cm 1 x Tripod/wall bracket 1 x Universal mount 1 x Telescopic levelling staff LT 4 m 1 x Remote control 1 x HighCapacityPack (Li-Ion) 1 x Batteries 1 x Network/charging device incl. international adapter 1 x Carrying strap 1 x Carrying case
