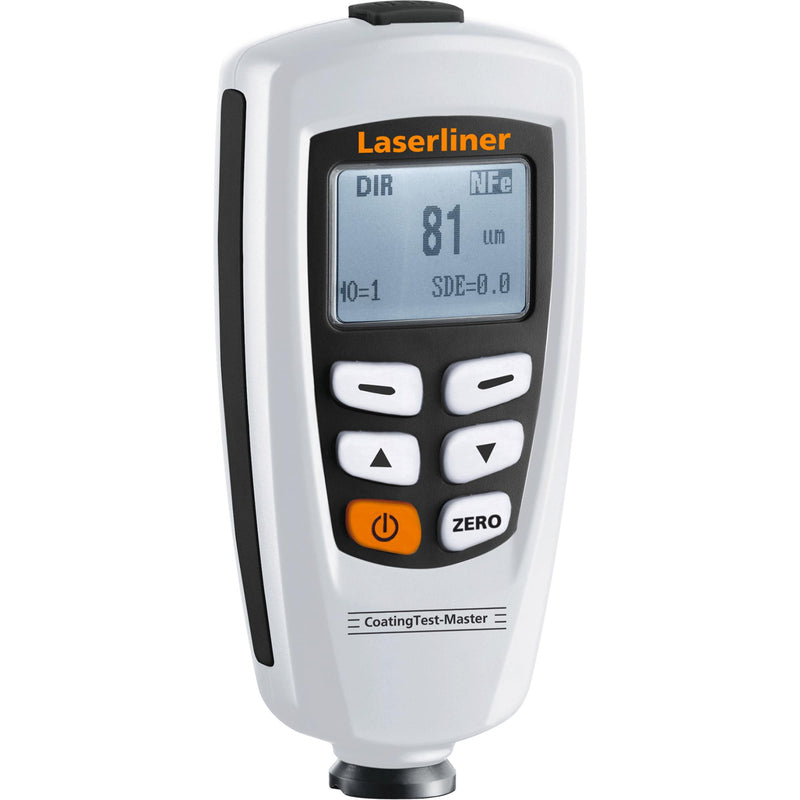

Laserliner 082.150A CoatingTest-Master Coating Thickness Measuring Device
SKU DR-32005 Barcode 4021563680597
50 available from our warehouse. Despatch times vary.
Pay in 3 interest-free with shopPay or PayPal
- Expert UK product support
- Authorised distributor
- 30 day returns
Delivery & returns
Despatch times vary by item. Check the product-specific lead time shown on this page. Supplier-shipped and larger items may take longer.
Delivery options and transit times are shown at checkout. Transit time starts after despatch and excludes weekends and bank holidays unless the selected service states otherwise. Tracking is provided when available.
30 day returns on unused items in original packaging.
Description
Description
This point precise coating thickness measuring instrument is suitable for insulating and non-magnetic coatings on non-ferrous metals. The base material is identified automatically (ferrous/ferromagnetic, non-ferrous/non-ferromagnetic). The device features one-point or two-point calibration to increase the measuring accuracy. 400 measured values can be saved to the internal memory and transferred to a PC via the USB interface for further analysis. Supplied with USB cable, batteries and carrying case.
Features
- Point precise coating thickness measurement based on induction and eddy current principle
- Measurable coatings: non-magnetic (paint, zinc on steel) and insulating (paint, anodised coatings)
- Automatic identification of base material (ferrous/ferromagnetic, non-ferrous/non-ferromagnetic)
- Comprehensive data backup due to internal memory for 400 measured values
- Increased measuring accuracy due to one-point and two-point calibration
- USB interface for analysis on PC
- Min/Max/AVG display
- Easy-to-read display
- Supplied with USB cable, batteries and carrying case
| Stock number | 32005 |
|---|---|
| SKU | DR-32005 |
| Coating thickness | Yes |
| Data transfer | Yes |
| Ferrous and non-ferrous | Yes |
| Single and continuous measurement | Yes |
| Mean value | Yes |
| Standard deviation | Yes |
| Zero adjustment | Yes |
| User calibration | Yes |
| Measured Variable | Coating thickness |
| Coating Thickness Measuring Range | 0 … 1250 µm |
| Sensor Type | Magnetic-inductive (Fe), eddy current (NFe) |
| Port | USB |
| Memory | 80 measurements / mode |
| Power Supply | 2 x 1.5V LR03 (AAA) |
| Dimensions (W x H x D) | 23 mm x 110 mm x 50 mm |
| Weight | 116 g |
Supplied contents
1 x Laserliner 082.150A CoatingTest-Master Coating Thickness Measuring Device 1 x Calibration references 1 x Software 1 x USB cable 1 x Batteries 1 x Carrying case
4 years
