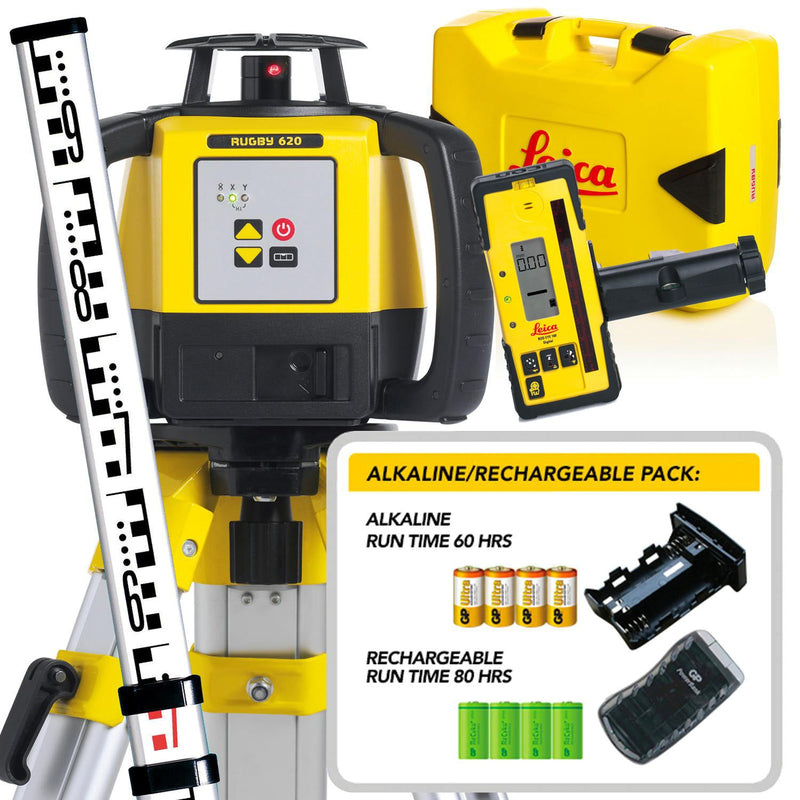

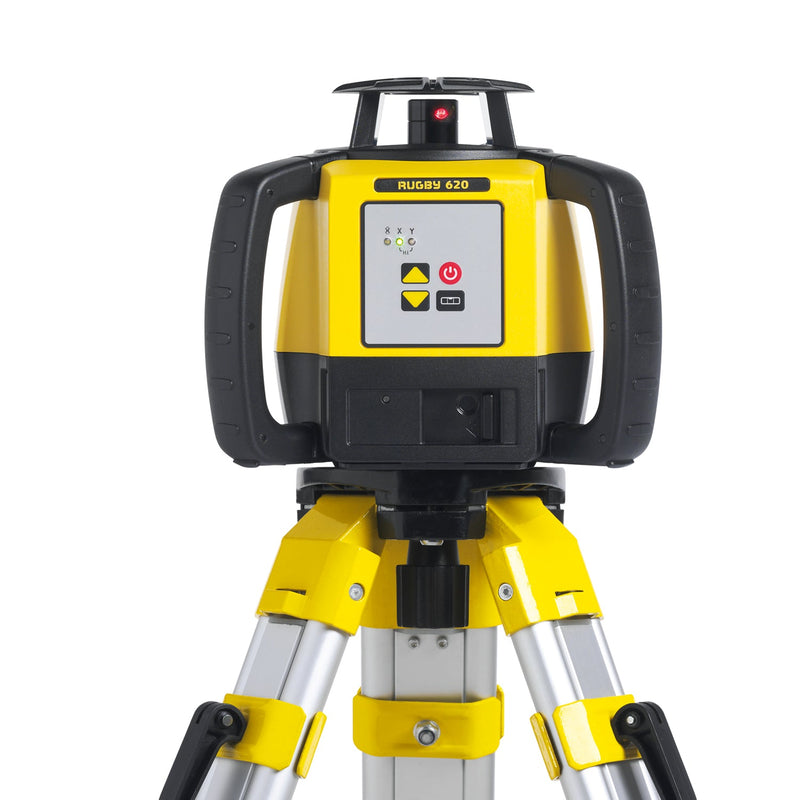

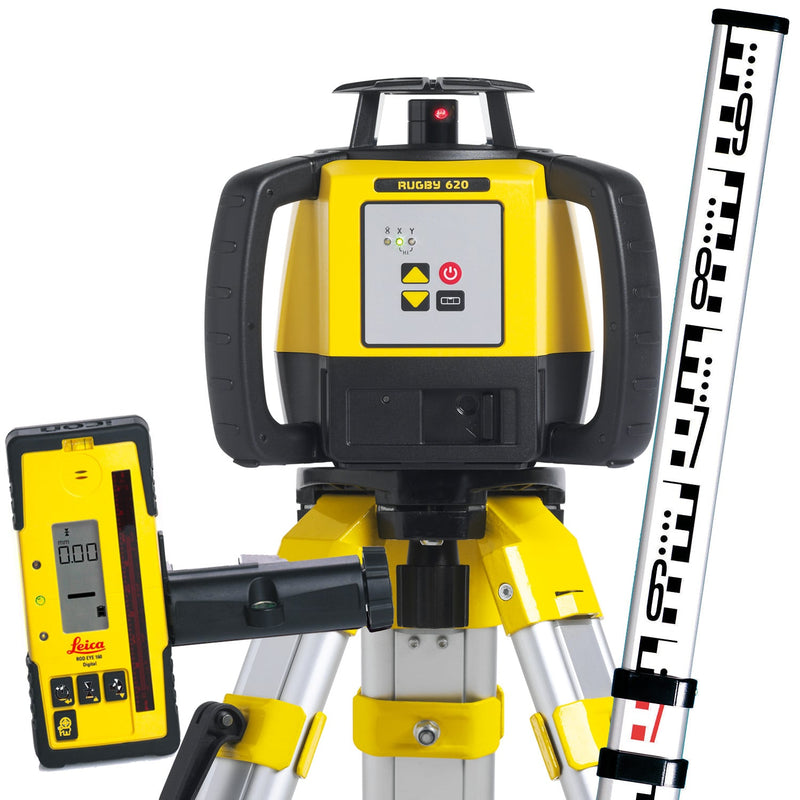

Leica Rugby 620 Li-ion Rotary Laser Kit with Rod Eye 160 Digital Receiver
The Leica Rugby 620 Li-ion Rotary Laser Kit with Rod Eye 160 Digital Receiver, available at Trade Counter Direct, is engineered for professionals demanding accuracy and efficiency in concrete construction, formwork, and site layout. This comprehensive kit combines the robust Rugby 620 rotary laser with the advanced Rod Eye 160 digital receiver, delivering precise levelling and grade control even in challenging site conditions.
Designed for ease of use and durability, the Rugby 620 features horizontal self-levelling and manual single-axis slope capability, making it suitable for applications such as driveways, drainage, and footings. The IP67-rated housing ensures reliable performance in harsh environments, while the long-life Li-ion battery minimises downtime. The kit is completed with a stable aluminium tripod and a 4-metre, 6-section levelling staff, providing all the essential tools for accurate site work.
Features
- Self-levelling horizontal operation with servo motors for precise setup
- Manual single-axis slope functionality for basic grade applications

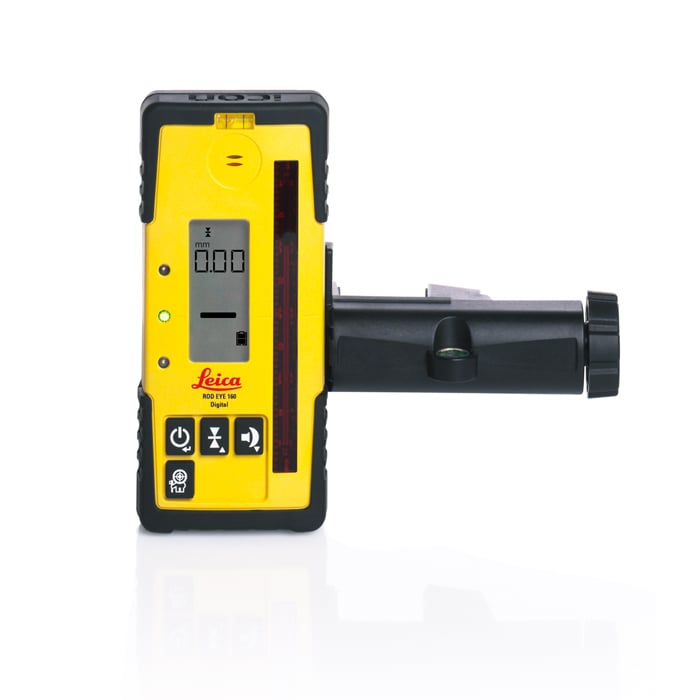

- Leica Rod Eye 160 Digital Receiver with 120 mm detection window and digital readout
- Strobe rejection technology eliminates false readings from flashing lights
- LCD displays on both front and rear of the receiver for convenient viewing
- Integrated level vial on receiver ensures accurate rod mounting
- Rugged IP67-rated housing protects against dust and water ingress
- Long-lasting Li-ion battery provides over 40 hours of runtime per charge
- Quick-charge capability: 30 minutes charge delivers 5 hours of use

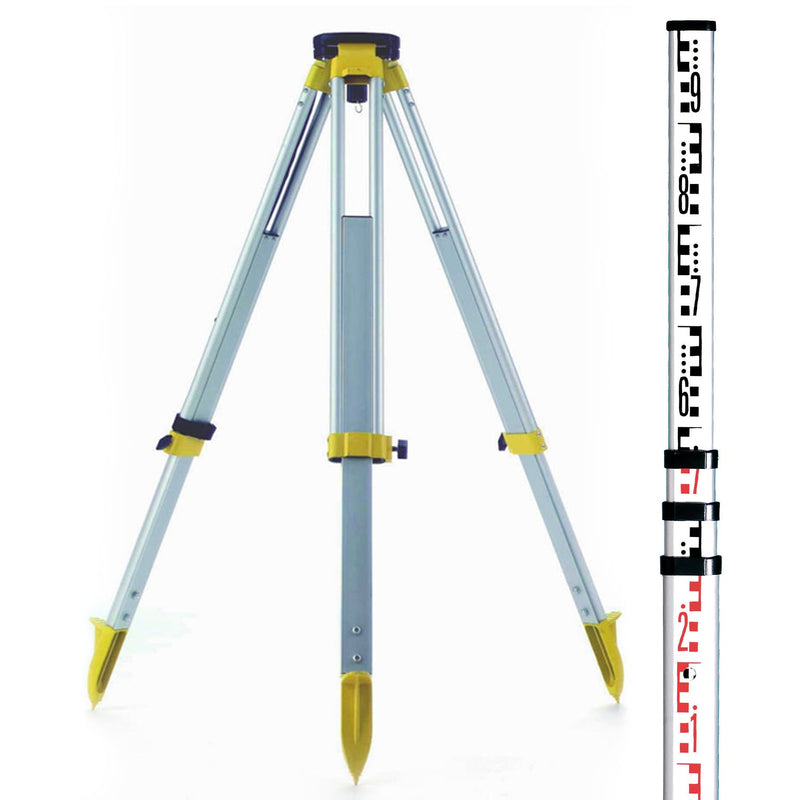

- Supplied with heavy-duty aluminium tripod and 4 m, 6-section levelling staff
- 3-year no-cost Leica Protect warranty, extendable to lifetime coverage
Specifications
| SKU | 6005986KIT |
|---|---|
| Barcode / EAN | 7640110694732 |
| Laser Type | 635 nm (Red), Class 2 |
| Self-Levelling Accuracy | ±1.5 mm at 30 m |
| Operating Range (Diameter) | 600 m (with RE160 receiver) |
| Slope Functionality | Manual, Single-Axis |
| Rotation Speed | 600 rpm |
| Power Source | Rechargeable Li-ion Battery |
| Battery Life | 40+ hours |
| Quick Charge | 30 minutes charge = 5 hours use |
| Ingress Protection | IP67 |
| Operating Temperature | –20°C to +50°C |
| Dimensions (Laser Unit) | 212 x 239 x 192 mm |
| Weight (Laser Unit) | 2.4 kg |
| Tripod | Aluminium, 5/8" mount |
| Levelling Staff | 4 m, 6-section aluminium, E/mm grad, with carry bag |
| Receiver | Leica Rod Eye 160 Digital, 120 mm window, digital readout, strobe rejection |
| Warranty | 3-Year No Cost, Lifetime Manufacturer’s Warranty |
| Kit Contents |
|
