Metabo MFE40+ASR35MACP-240V 240v 40mm Wall Chaser and Dust Extractor Vacuum Set - UK604040596
SKU MFE40+ASR35MACP-240V Barcode 4007430331304
Out of stock. Contact us for availability.
Notify me when back in stock
- Expert UK product support
- Authorised distributor
- 30 day returns
Delivery & returns
Despatch times vary by item. Check the product-specific lead time shown on this page. Supplier-shipped and larger items may take longer.
Delivery options and transit times are shown at checkout. Transit time starts after despatch and excludes weekends and bank holidays unless the selected service states otherwise. Tracking is provided when available.
30 day returns on unused items in original packaging.
Description
Description

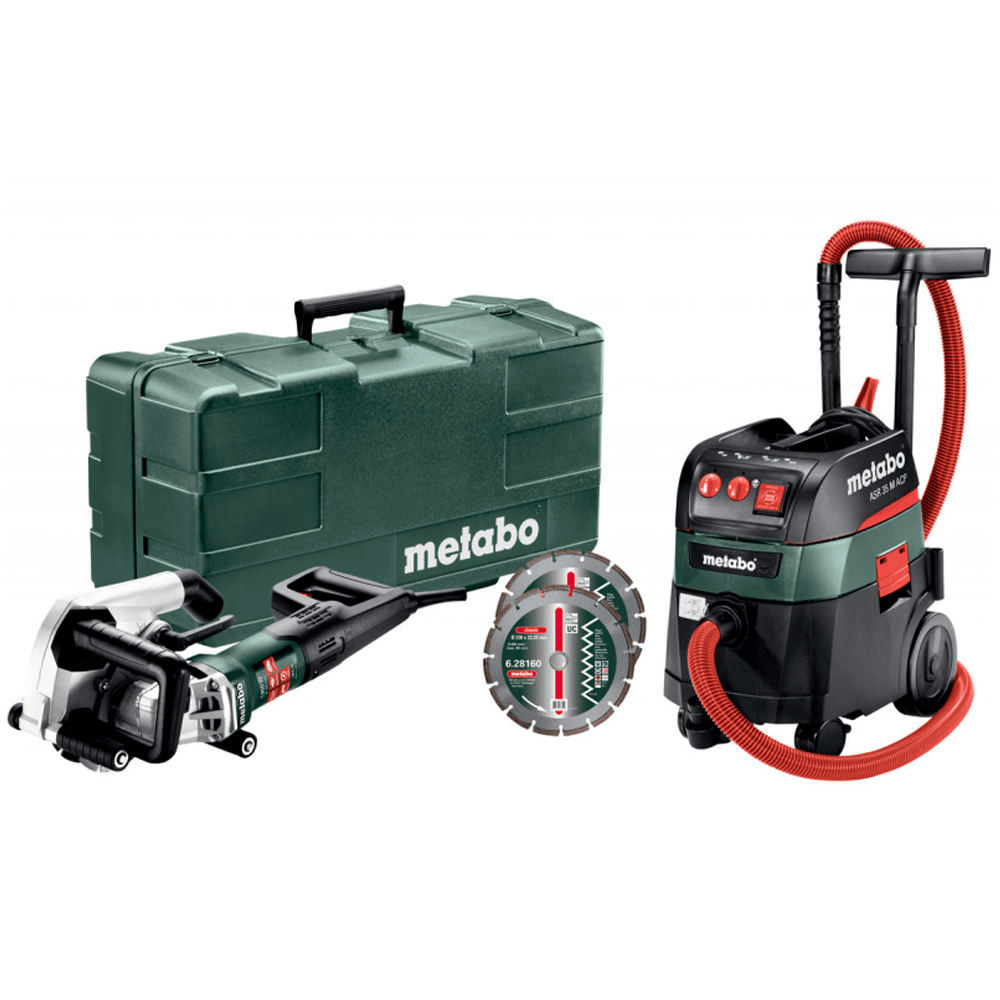

Metabo UK604040616 240V 1900W 40mm Wall Chaser & ASR 35 M ACP Vacuum Kit
The Metabo UK604040616 240V 1900W 40mm Wall Chaser & ASR 35 M ACP Vacuum Kit, available at Trade Counter Direct, is an advanced solution for professional electricians, tradesmen, and dedicated DIYers. This comprehensive kit is designed for efficient cutting of channels in walls for cable and pipe installations, while ensuring clean, low-dust operation through integrated dust extraction. The robust wall chaser delivers precise, adjustable cutting and groove widths, while the included ASR 35 M ACP vacuum cleaner provides powerful extraction for both liquids and dry solids, making it ideal for demanding site and workshop environments.
Engineered for durability and ease of use, the Metabo MFE 40 wall chaser features a high-performance motor, ergonomic design, and advanced safety features. The ASR 35 M ACP vacuum cleaner complements the system with automatic filter cleaning, commercial registration, and M-class dust certification for optimal user protection and performance.
Features
- Powerful 1900 W Metabo Marathon motor with patented dust protection for extended service life
- Adjustable cutting depth from 10 mm to 40 mm and groove widths up to 30 mm (with special accessories)
- Robust aluminium die-cast hood with rubber rolls for stable, comfortable guidance
- Two-speed high-performance gear and Tacho-Constamatic (TC) electronics for constant speed under load
- Electronic soft start and restart protection for enhanced safety
- Metabo S-automatic safety clutch for mechanical decoupling in case of disc stoppage
- Pushing cut design for optimal visibility of the marking line
- Clean, low-dust working when connected to the included ASR 35 M ACP vacuum cleaner
- ASR 35 M ACP features automatic MPulse filter cleaning and M-class dust certification
Specifications
| SKU | UK604040616 |
|---|---|
| Range/Series | MFE 40 Wall Chaser & ASR 35 M ACP Vacuum |
| Power (Wall Chaser) | 1900 W (input), 1120 W (output) |
| Power (Vacuum Cleaner) | 1400 W (max input) |
| Cutting Depth (Wall Chaser) | 10 – 40 mm |
| Possible Groove Widths | Up to 30 mm (with special accessories), standard 9 mm |
| Cutting Disc Diameter | 125 mm |
| No-load Speed | 5000 rpm |
| Revolutions at Rated Load | 4200 rpm |
| Torque | 6 Nm |
| Weight (Wall Chaser) | 4.6 kg (without power cable) |
| Cable Length (Wall Chaser) | 4 m |
| Noise Emission (Sound Pressure Level) | 93 dB(A) |
| Noise Emission (Sound Power Level) | 104 dB(A) |
| Uncertainty of Measurement (K) | 3 dB(A) |
| Air Output Max (Vacuum Cleaner) | 3660 l/min |
| Vacuum (Vacuum Cleaner) | 248 hPa (mbar) |
| Filter Surface | 8600 cm² |
| Container Volume | 35 l |
| Suction Hose Diameter | 35 mm |
| Hose Length | 4 m |
| Weight (Vacuum Cleaner) | 16 kg |
| Cable Length (Vacuum Cleaner) | 8 m |
| Kit Contents |
Wall Chaser MFE 40: Spacer rings, flange nut, pin-type face wrench, break-out tool, 20 mm diamond cutting disc, Classic UC, plastic carry case Vacuum Cleaner ASR 35 M ACP: Antistatic suction hose (Ø 35 mm, 4 m), connecting sleeve (Ø 41/48 mm), handle adapter, 2 plastic suction tubes, 2 polyester filter cassettes (class M), PE filter bag, crevice nozzle, floor nozzle (300 mm wide) |
