Metal Access Panels - Standard Lock - Fire Rated - Picture Frame - Size 900x550mm
SKU SEL7149-900PF Barcode 0683325001503
Available to order from our supplier. Contact us to confirm quantities and lead times.
Pay in 3 interest-free with shopPay or PayPal
- Expert UK product support
- Authorised distributor
- 30 day returns
Delivery & returns
Despatch times vary by item. Check the product-specific lead time shown on this page. Supplier-shipped and larger items may take longer.
Delivery options and transit times are shown at checkout. Transit time starts after despatch and excludes weekends and bank holidays unless the selected service states otherwise. Tracking is provided when available.
30 day returns on unused items in original packaging.
Description
Description

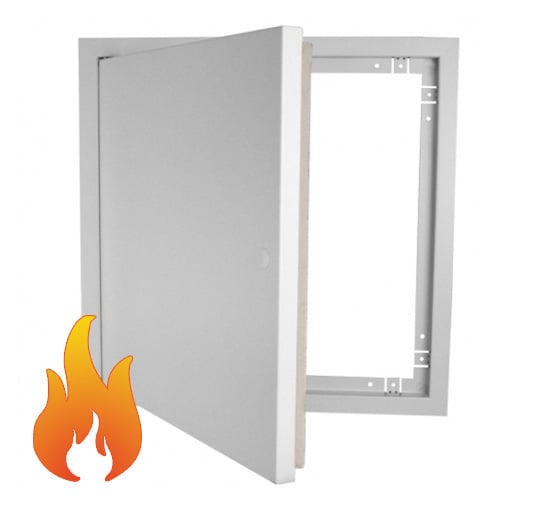

Fire Rated Metal Access Panel with Picture Frame
The Fire Rated Metal Access Panel with Picture Frame from Trade Counter Direct is engineered for installation in dry lined ceilings or wall structures where fire protection or separation is required. This robust access solution is ideal for both new and existing walls or ceilings, providing secure, fire-resistant access to building services, concealed flues, ducts, and chimney systems.
Compliant with Part J Building Regulations, this panel ensures safe and convenient inspection of concealed flue and chimney systems without compromising fire, thermal, or acoustic integrity. Available in a range of standard sizes, it is suitable for a variety of applications in both residential and commercial settings.
Features
- Fire rated for 60 minutes; tested to BS 476 part 22
- Designed for dry lined walls and ceilings
- Complies with Part J Building Regulations for access to flues and chimneys
- Precision manufactured from Zintec steel
- Powder coated finish: RAL 9010, 20% gloss
- Fully concealed, heavy duty piano hinge
- Budget lock fitted as standard
- Door is easily removable for maintenance
- 30 dB measured acoustic rating
- Available in 7 standard door sizes; custom sizes available on request
- Guaranteed for 12 months
Specifications
| Range | Fire Rated Metal Access Panel with Picture Frame |
|---|---|
| Fire Rating | 60 minutes (BS 476 part 22) |
| Suitable For | Walls and ceilings (dry lined structures) |
| Standard Door Sizes | 200 x 200 mm, 300 x 300 mm, 450 x 450 mm, 550 x 550 mm, 600 x 600 mm, 900 x 550 mm, 1200 x 550 mm |
| Overall Frame Depth | 50 mm |
| Frame Width | 25 mm (all around) |
| Material | Zintec steel |
| Finish | Powder coated, RAL 9010, 20% gloss |
| Acoustic Rating | 30 dB |
| Lock Type | Budget lock (standard) |
| Hinge Type | Fully concealed, heavy duty piano hinge |
| Warranty | 12 months |
| Custom Sizes | Available on request |
