PanelCraft Hinged Tile Access Panel 300x300mm - Non Fire-Rated Metal - 300x300mm

Tile-on Metal Access Panel 300x300mm – Non Fire-Rated (SEL7158-300)

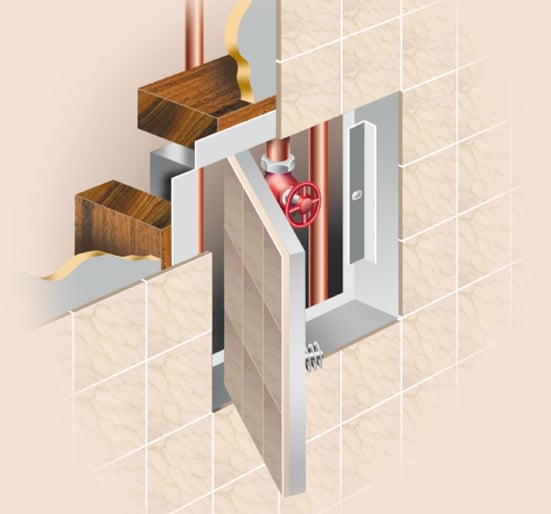

The Tile-on Metal Access Panel 300x300mm, available from Trade Counter Direct, is specifically engineered to provide discreet and secure access to building engineering services hidden behind tiled walls. Suitable for ceramic, marble, or slate tiles, this panel is ideal for installations where a flush, seamless finish is required. Manufactured from Zintec (electro-zinc coated steel), it is designed to accommodate tiles up to 10 mm thick, ensuring the panel blends perfectly with the surrounding surface.

This non fire-rated access panel must be installed prior to tiling, allowing for an invisible and easily accessible entry point. Its robust construction and thoughtful design make it a reliable choice for both residential and commercial applications.

Features

• Designed for ceramic, marble, or slate tiled walls
• Concealed frame fixed into the wall before tiling for a flush finish
• Accommodates tiles up to 10 mm thick
• Removable door allows tool-free access
• Touch catch (push lock) mechanism as standard
• Easy installation process
• Overall depth of 55 mm (excluding tiles)
• Fire-rated version available on request
• Approximately 23 mm should be added to the panel size for the structural opening
