Tile-on Metal Access Panel 450 x 450 mm – Non Fire-Rated (SEL7158-450)

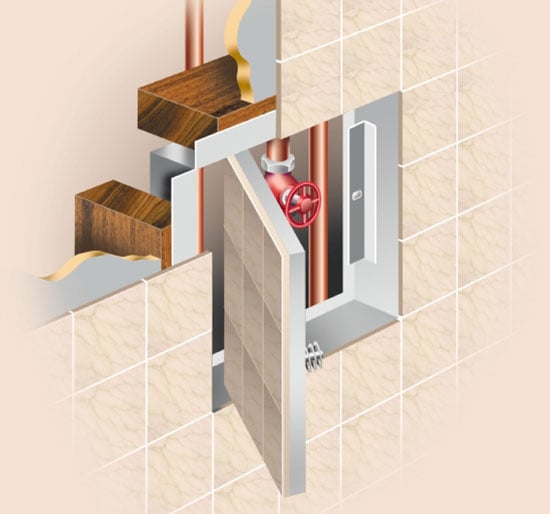

The Tile-on Metal Access Panel 450 x 450 mm, available at Trade Counter Direct, is engineered for seamless integration into tiled wall surfaces. Designed specifically for use with ceramic, marble, or slate tiles, this non fire-rated access panel provides secure and discreet access to building engineering services. Its robust Zintec (electro-zinc coated steel) construction ensures durability, while the panel accommodates tiles up to 10 mm thick for a flush, professional finish.
Ideal for both residential and commercial applications, the panel features a concealed frame that is installed prior to tiling, ensuring an invisible and easily accessible solution. The removable door and touch catch mechanism allow for tool-free operation, making maintenance straightforward and efficient.
Features
- Designed for use in ceramic, marble, or slate tiled walls
- Manufactured from Zintec (electro-zinc coated steel) for enhanced durability
- Accommodates tiles up to 10 mm thick for a flush finish
- Concealed frame fixed into the wall before tiling for a seamless appearance
- Touch catch (push lock) mechanism as standard
- Removable door allows access without the need for tools
- Overall depth of 55 mm (excluding tiles)
- Easy installation process
- Fire-rated versions available on request
Specifications
| SKU | SEL7158-450 |
|---|---|
| Range/Series | Tile-on Metal Access Panel |
| Size (Door Opening) | 450 x 450 mm |
| Material | Zintec (Electro-Zinc Coated Steel) |
| Maximum Tile Thickness | 10 mm |
| Overall Depth (Excluding Tiles) | 55 mm |
| Structural Opening Requirement | Add approximately 23 mm to the panel size |
| Locking Mechanism | Touch catch (push lock) |
| Fire Rating | Non fire-rated (fire-rated version available on request) |
