Pegler 38114 XPress Copper S3 Male Coupling (M-Press) Size Options - 15 - 22mm

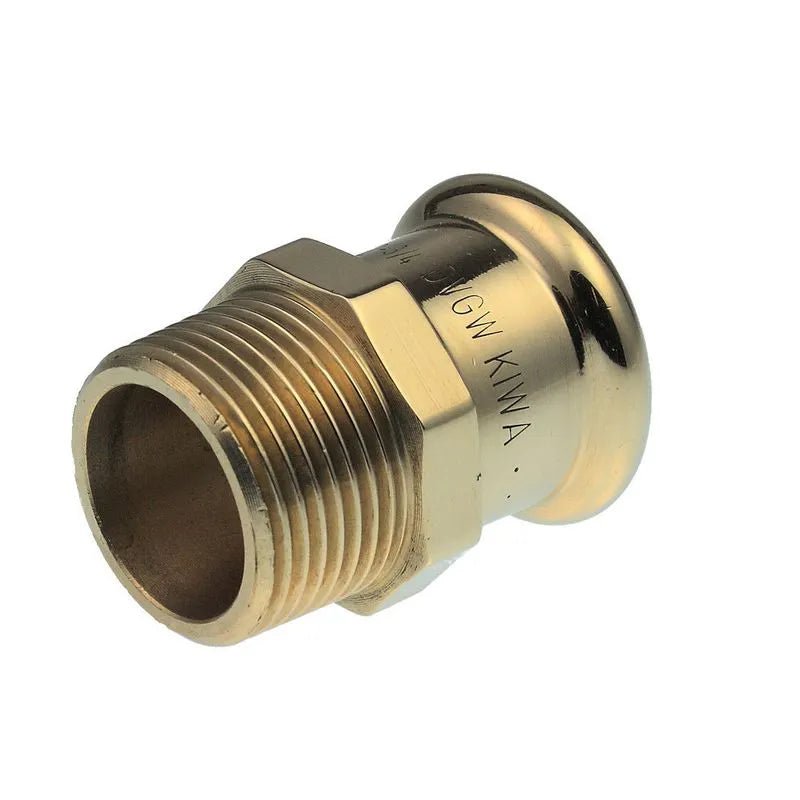

Pegler XPress Copper S3 Male Coupling (M-Press) – 15mm & 22mm Options

The Pegler Yorkshire VSH XPress S3 male coupling is part of the industry-leading XPress press-fit copper system, designed to deliver fast, reliable, and heat-free jointing across a wide range of building services applications.

Manufactured from high-quality copper, this male coupling enables secure transitions from press-fit copper pipe to male threaded connections. The M-Press design eliminates the need for hot works, significantly reducing installation time, labour costs, and site risk. Its clean, flame-free installation makes it ideal for use in occupied buildings and locations where hot works permits are restricted or prohibited.

The XPress system features the unique Leak Before Press function, ensuring any unpressed joints are immediately identified during pressure testing. Suitable for domestic, multi-occupancy, commercial, and public utility installations, the system delivers exceptional performance and long-term reliability.

Key Features

• Copper male coupling for Pegler VSH XPress press-fit systems

• Size options: 15mm and 22mm

• Heat-free, flame-free press installation

• Fast, clean, and cost-effective jointing

• Leak Before Press feature for installation safety

• Suitable for domestic, commercial, and public utility applications

• Compatible with gas and building services installations

• Chrome-plated versions available for exposed pipework

Performance & Approvals

• BSI Kitemark approved to BS 8537:2010 (12mm–108mm range)

• Temperature rating: -20°C to +110°C

• Pressure rating: 16 bar across the full temperature range

• Wide range of British and international approvals

A professional-grade copper press-fit coupling delivering speed, safety, and long-term performance for modern plumbing and building services installations.
