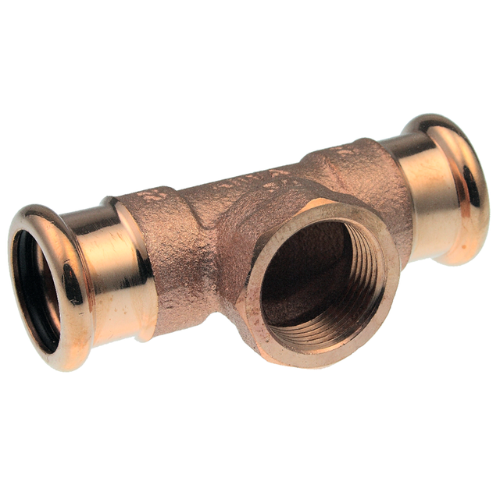

Pegler XPress Copper S30 Female Branch Tee (M-Press) - Size Options 15 - 22mm

Pegler XPress Copper S30 Female Branch Tee (M-Press) – 15mm & 22mm Options

The Pegler Yorkshire VSH XPress S30 female branch tee is a high-quality press-fit copper fitting designed to create a secure branch connection from press-fit copper pipe to a female threaded outlet. Part of the trusted XPress press-fit system, it offers a fast, reliable, and heat-free jointing solution for modern building services.

Manufactured from premium copper, the S30 female branch tee enables efficient pipework layouts while eliminating the need for soldering, brazing, or welding. The M-Press design significantly reduces installation time and labour costs, while also removing the need for hot works permits—making it ideal for occupied buildings and sensitive environments.

Featuring the unique Leak Before Press function, any unpressed joints are clearly identified during pressure testing, improving installation safety and reducing the risk of call-backs. Suitable for a wide range of applications, including domestic, multi-occupancy, commercial, and public utility installations, the XPress system delivers outstanding performance and long-term reliability.

Key Features

• Copper female branch tee for Pegler VSH XPress press-fit systems

• Size options: 15mm and 22mm

• Female threaded branch outlet

• Heat-free, flame-free press-fit installation

• Fast, clean, and cost-effective jointing

• Leak Before Press feature for added installation security

• Suitable for domestic, commercial, and public utility applications

• Chrome-plated versions available for exposed pipework

Performance & Approvals

• BSI Kitemark approved to BS 8537:2010 (12mm–108mm range)

• Temperature rating: -20°C to +110°C

• Pressure rating: 16 bar across the full temperature range

• Wide range of British and international approvals

A professional-grade copper press-fit tee providing speed, safety, and dependable performance for modern plumbing and building services installations.
