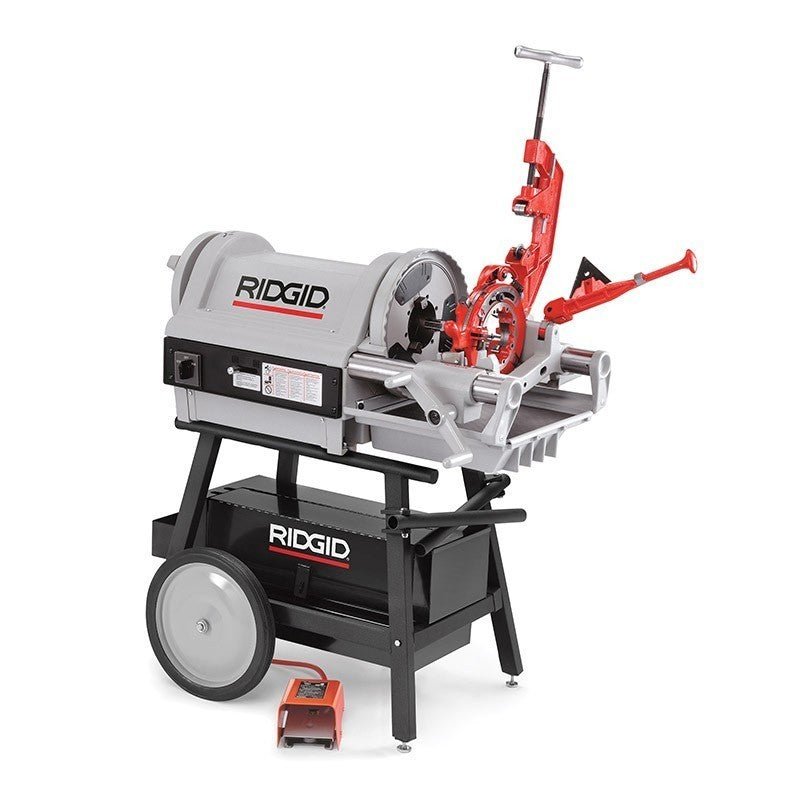

RIDGID Model 1224 Pipe Threading Machine 115V BSPT (26112)

The RIDGID Model 1224 Threading Machine (26112) is a heavy-duty pipe threading system designed for professional workshops, fabrication facilities and plumbing contractors. Built for durability and precision, it can thread pipes from ¼″ to 4″ (8–100 mm) and up to 6″ (150 mm) when used with the optional RIDGID 161 Geared Threader.

Powered by a 1.1 kW single-phase induction motor, the Model 1224 provides smooth, quiet operation while maintaining the torque required to thread demanding materials. It handles a wide range of pipe types including black pipe, galvanised pipe, plastic-coated pipe, stainless steel, IMC and heavy-wall conduit, as well as threaded rod up to 30 Rockwell C hardness.

A two-speed gearbox delivers 36 RPM for pipes up to 2″ and 12 RPM for larger pipes from 2½″ to 4″, ensuring optimal cutting performance and thread accuracy. The through-die-head oiling system, combined with a self-priming gerotor pump, delivers constant lubrication directly to the dies and workpiece, improving thread finish and extending die life.

For safe and precise operation, the machine includes a hammer-type chuck with replaceable rocker-action jaw inserts, a cam-action rear centering device, and a heavy-duty rotary forward/off/reverse switch with integral footswitch control.

Please note: Machine stand not included. Compatible with RIDGID Model 100A, 150A and 200A stands.

Key Features

• Large Pipe Capacity – Threads pipes from ¼″ to 4″ (8–100 mm)

• Extended Capacity – Up to 6″ (150 mm) with the RIDGID 161 Geared Threader

• Two-Speed Gearbox – 36 RPM for smaller pipes and 12 RPM for larger diameters

• Powerful Induction Motor – 1.1 kW motor for quiet, reliable operation

• Handles Multiple Materials – Suitable for steel, galvanised, stainless and plastic-coated pipe

• Universal & Receding Die Heads – Supports tapered or straight NPT/NPSM or BSPT/BSPP threads

• Through-Head Oiling System – Continuous lubrication improves thread finish and die life

• Heavy-Duty Chuck – Hammer-type chuck with replaceable rocker-action jaw inserts

• Footswitch Control – Hands-free operation for safer threading

Technical Specifications

• Model: 1224

• Power Supply: 115V, 50 Hz

• Motor: 1.1 kW single-phase induction motor

• Spindle Speed: 36 / 12 RPM

• Gearbox: Two-speed, 3:1 ratio

• Pipe Capacity (BSPT): ¼″ – 4″

• Extended Pipe Capacity: 4″ – 6″ with 161 Geared Threader

• Bolt Capacity: ¼″ – 2″ (6 – 52 mm)

• Die Head Compatibility: Self-Opening 911 and 914 Die Heads

• Chuck Type: Hammer-type with replaceable rocker-action jaw inserts

• Rear Centre: Cam-action

• Pipe Cutter: Model 764 self-centering cutter with F-229 cutter wheel

• Reamer: Model 744 blade-type reamer (¼″ – 4″)

• Oiling System: Through die head with self-priming gerotor pump

Additional Information

• Capacity (BSPT): 0.25 – 4

• Die Head Self Opening 911: Yes

• Die Head Self Opening 914: Yes

• Speed: 36 / 12 RPM

• Weight: 210 kg (463 lb)
