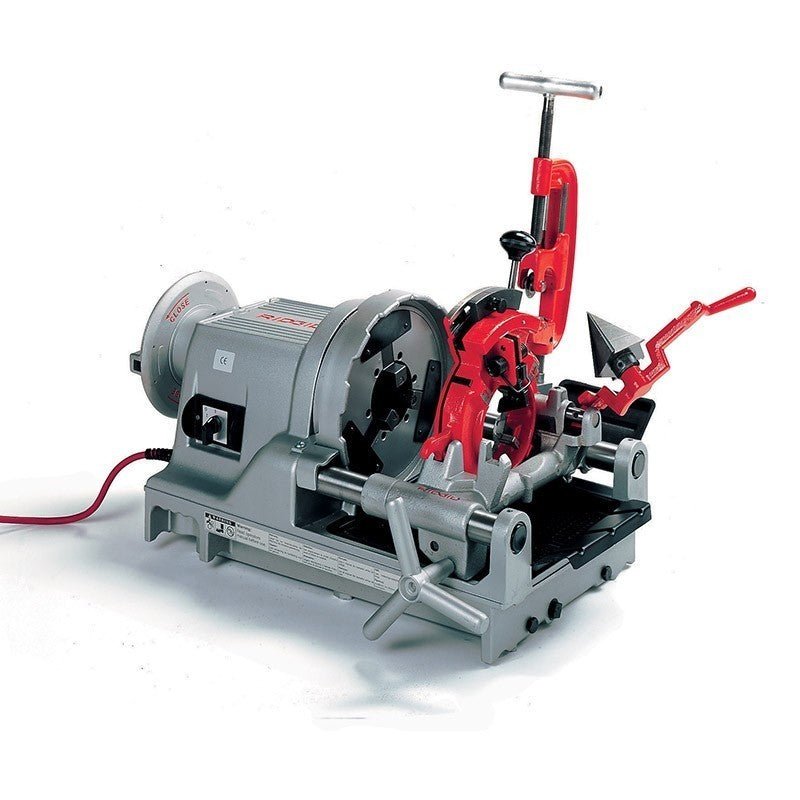

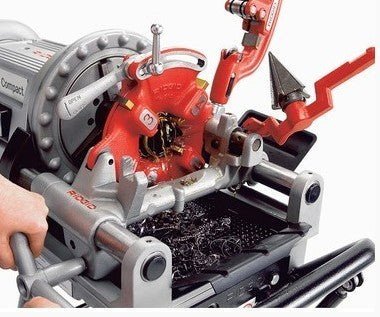

RIDGID Model 1233 Universal Pipe Threading Machine 115V (20220)

The RIDGID Model 1233 Universal Threading Machine is a high-performance pipe threading solution designed for professional pipefitters, plumbers and mechanical contractors. Built for reliability and precision, it delivers consistent threading on pipes from ¼″ to 3″ (8–80mm) with a powerful 1.7 kW universal motor operating at 36 RPM for smooth and controlled threading.

Engineered for demanding workshop and site use, the Model 1233 features through-head oiling with an integrated reservoir, ensuring constant lubrication of the dies and workpiece. This improves thread quality, extends die life and reduces heat during operation.

The machine is equipped with a heavy-duty rotary switch and integral footswitch, providing safe and convenient forward, reverse and stop operation. A hammer-type chuck with replaceable rocker-action jaw inserts ensures secure pipe grip, while the cam-action rear centring device maintains pipe alignment for precise threading results.

Supplied with RIDGID die heads, cutter, reamer and cutting fluid, the Model 1233 is a complete threading workstation capable of handling pipe preparation, cutting, reaming and threading with professional efficiency.

Key Features

• Professional Pipe Threading – Threads pipes from ¼″ to 3″ (8–80mm) with precision

• High-Power Motor – 1.7 kW universal motor designed for continuous heavy-duty operation

• 36 RPM Spindle Speed – Provides controlled threading for consistent results

• Through-Head Oiling System – Adjustable oil flow with self-priming constant-flow pump

• Hammer-Type Chuck – Secure pipe grip with replaceable rocker-action jaw inserts

• Cam-Action Rear Centre – Maintains pipe alignment during threading

• Integrated Controls – Heavy-duty rotary switch with forward/off/reverse and footswitch operation

• Complete Pipe Preparation – Includes cutter, reamer and die heads for full pipe processing

Technical Specifications

• Motor: 1.7 kW Universal Motor

• Power Supply: 115V, 50–60 Hz

• Spindle Speed: 36 RPM

• Pipe Capacity: ¼″ – 3″ (8 – 80 mm)

• Extended Pipe Capacity: 2½″ – 4″ (65 – 100 mm) with 141 Geared Threader

• Bolt Capacity: 10 – 52 mm up to 30 RC

• Chuck Type: Hammer-type with replaceable rocker-action jaw inserts

• Rear Centring Device: Cam action

• Oiling System: Through-head lubrication with adjustable flow and self-priming gerotor pump

Standard Equipment

• Die Heads:

  • Model 815A (⅛″ – 2″ BSPT)

  • Model 928A (2½″ – 3″ BSPT)

• Dies:

  • ½″ – ¾″ BSPT Alloy

  • 1″ – 2″ BSPT Alloy

  • 2½″ – 3″ BSPT High Speed

• Pipe Cutter: Model 763 (¼″ – 3″) with E-1032 cutter wheel

• Reamer: Model 743 (¼″ – 3″), 5-fluted

• Thread Cutting Fluid: 5 litres
