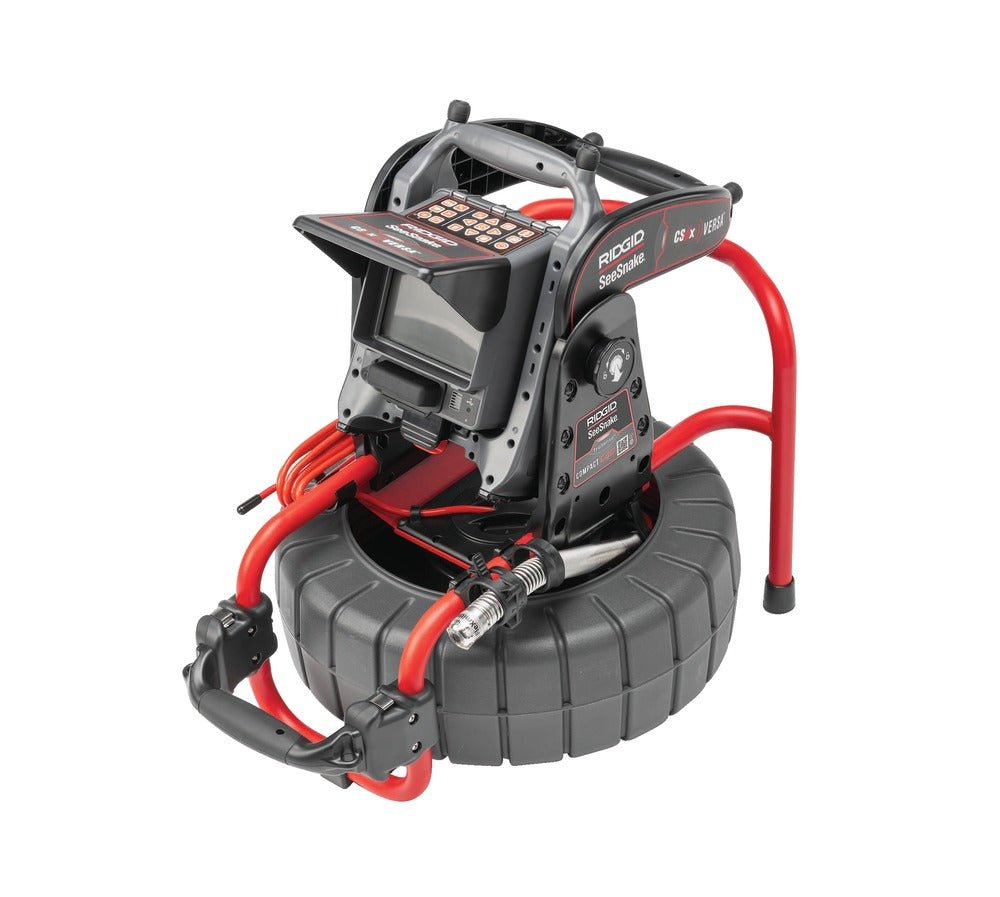

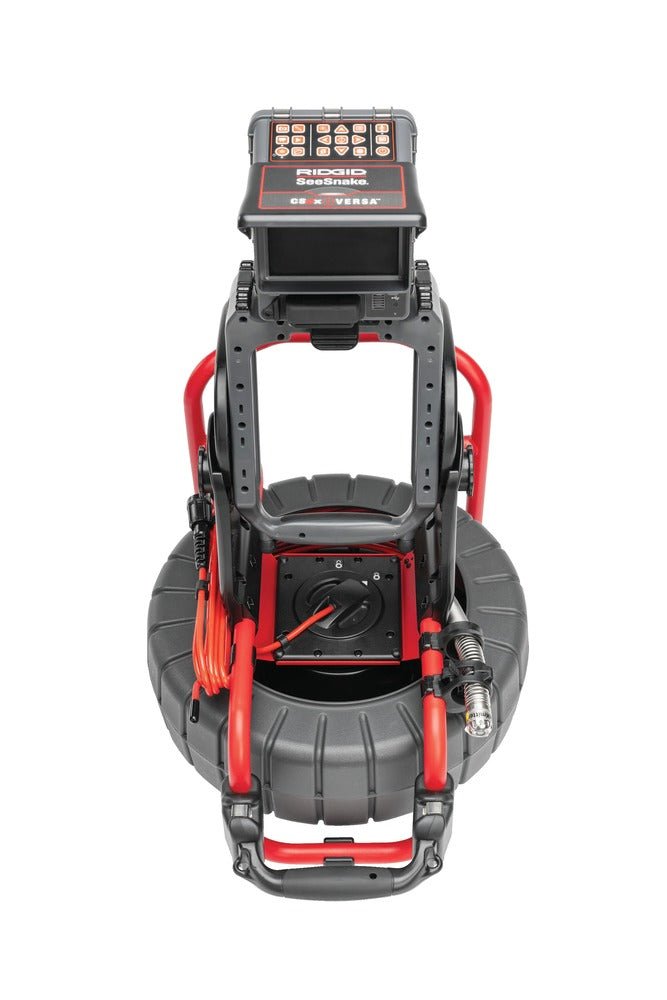

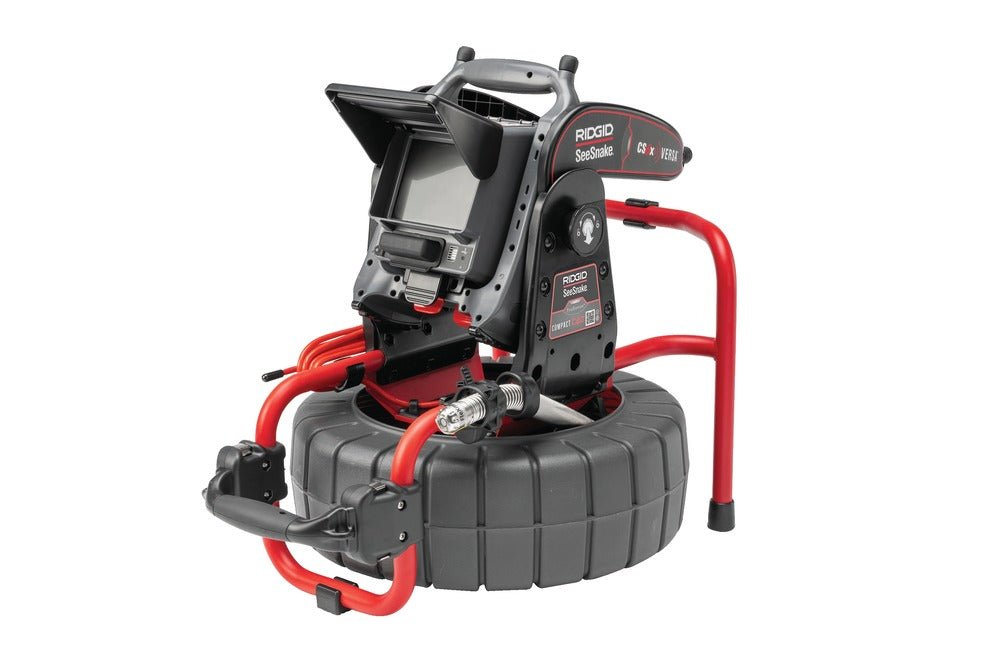

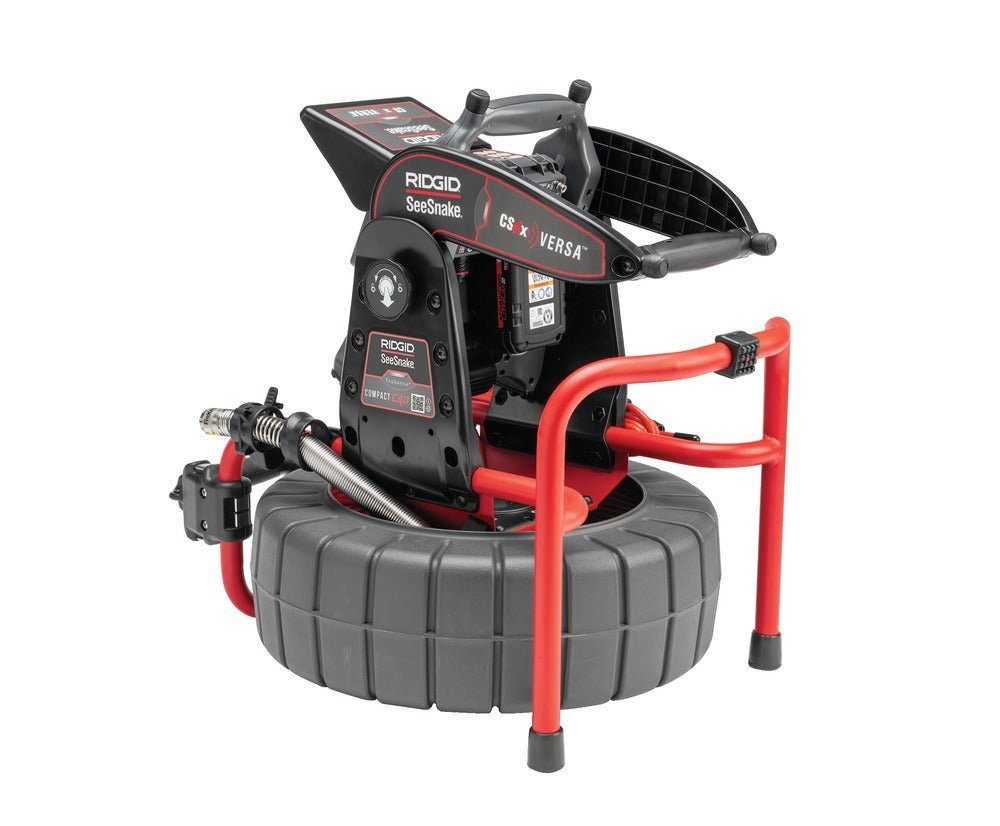

RIDGID SeeSnake Compact C40 Camera System with TruSense

RIDGID SeeSnake Compact C40 Camera System with TruSense

The RIDGID SeeSnake Compact C40 Camera System with TruSense is a professional drain and pipe inspection system designed for fast setup, clear imaging, and reliable diagnostics. Built for plumbers, drainage engineers, and inspection professionals, the Compact C40 allows you to inspect pipes quickly while capturing high-quality images and video for reporting and documentation.

With a 40m push cable, self-levelling camera head, and TruSense technology, this inspection system delivers exceptional visibility inside pipes ranging from 38mm to 152mm. When paired with RIDGID CSx series Wi-Fi monitors, it enables digital recording, remote viewing, and fast report generation for customers.

---

Ideal Applications

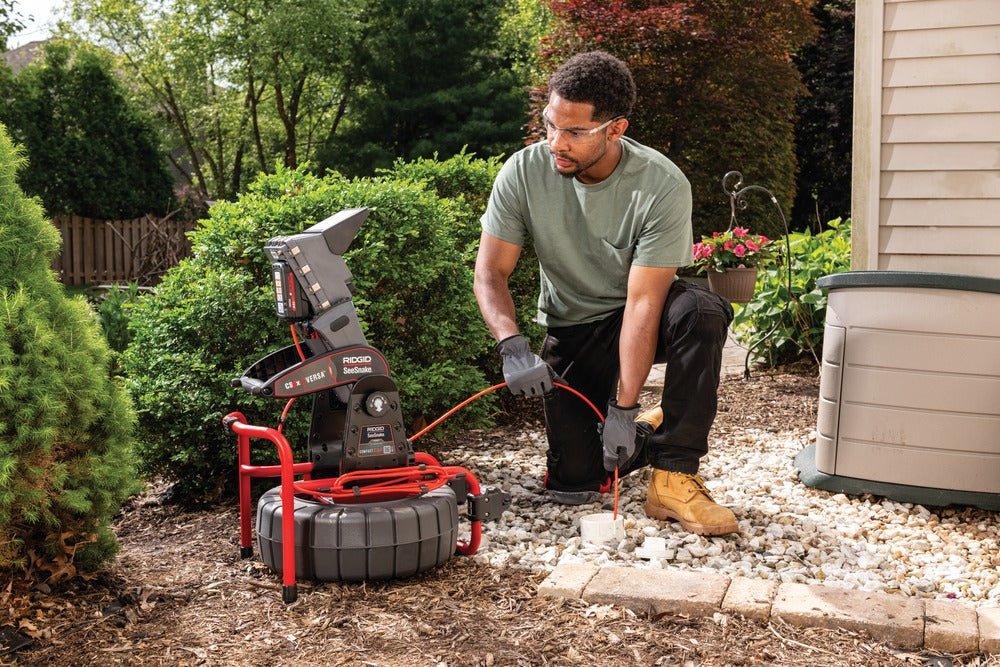

• Drain and sewer inspections
• Domestic and commercial pipe diagnostics
• Blockage identification and pipe condition surveys
• Drainage maintenance and repair planning
• Underground pipe location using a RIDGID receiver

---

Key Features & Benefits

TruSense Technology
Provides two-way communication between the camera and compatible RIDGID CSx series monitors, delivering valuable data from inside the pipe during inspections.

HDR Image Sensor
High dynamic range imaging preserves colour and detail in both dark and bright areas of the pipe, making faults and obstructions easier to identify.

Self-Levelling Camera Head
The integrated self-levelling camera keeps the image upright during inspection, providing a clear and consistent viewing experience.

TiltSense Inclinometer
Displays the camera’s angle inside the pipe on compatible monitors, helping users better understand pipe orientation during inspections.

Flexible 40m Push Cable
A durable polypropylene-jacketed cable with a fibreglass core offers the strength needed to push through long runs while remaining flexible enough for tight bends.

FleXmitter 512Hz Sonde
Allows the camera location to be traced from above ground using a RIDGID locator, making it easier to pinpoint problem areas.

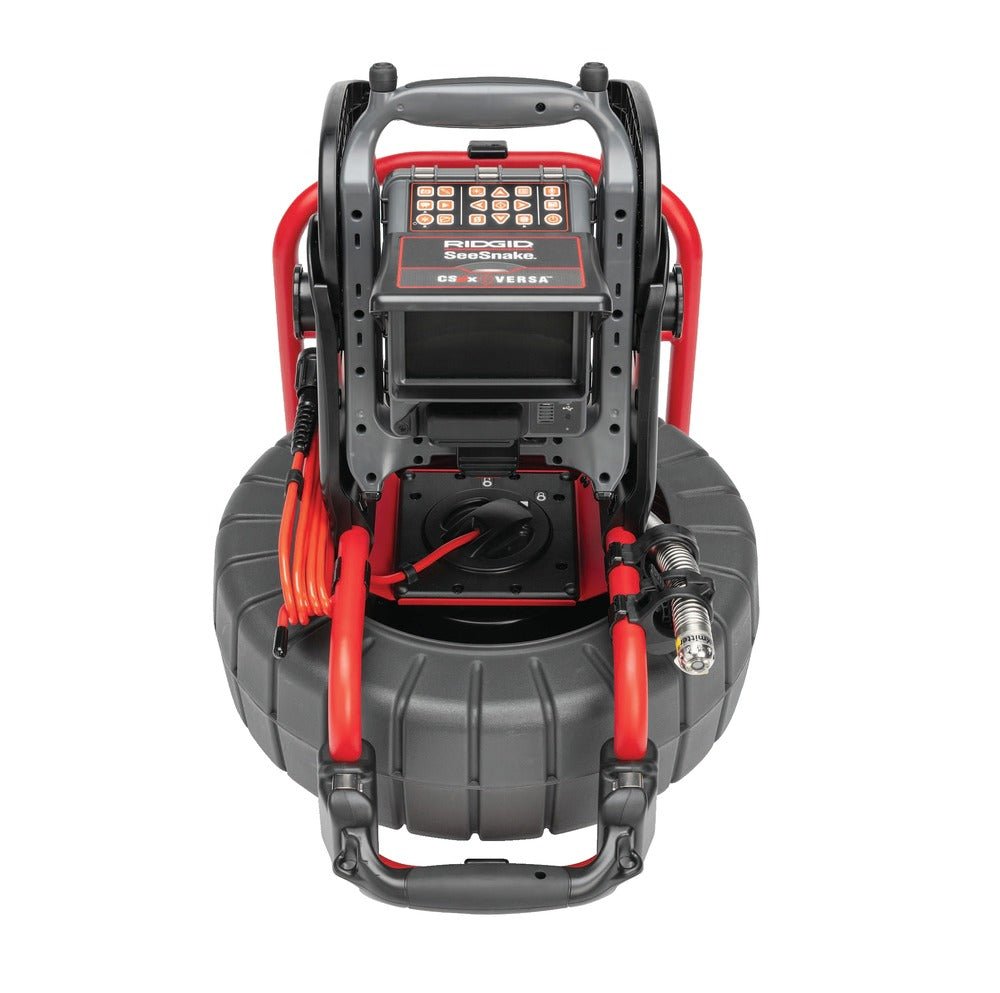

Quick-Release Monitor Docking

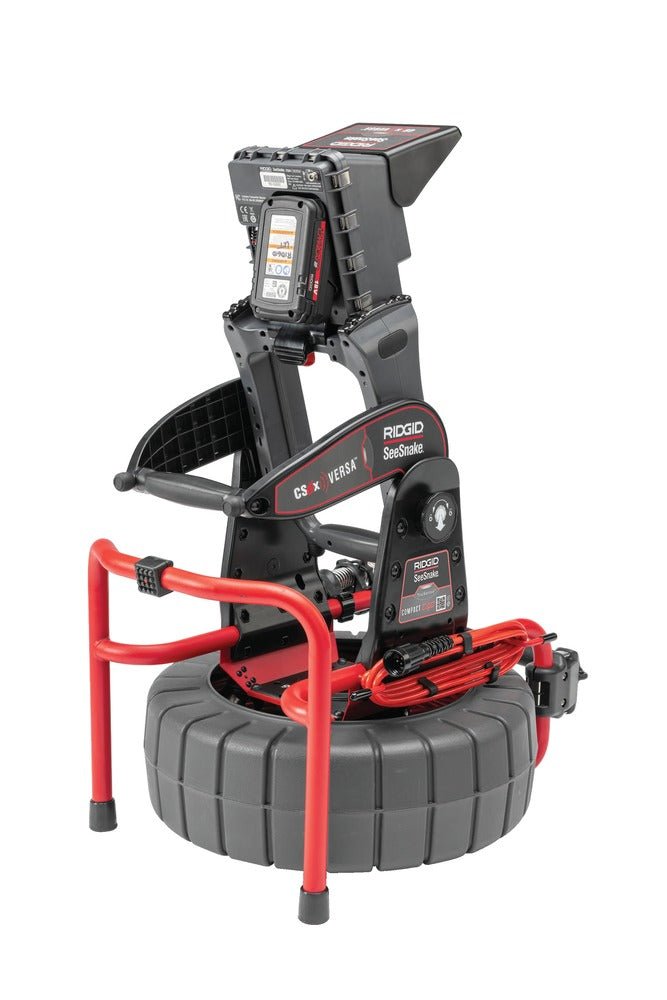

Designed for use with the RIDGID CS6x Versa monitor, allowing fast mounting, removal, and flexible positioning on the job site.

Wireless Inspection Capability
When paired with a compatible monitor, users can view and record inspections via the HQx Live app on smartphones or tablets.

---

Compatibility

The Compact C40 works with all RIDGID SeeSnake monitors and is optimised for use with the CSx series Wi-Fi enabled monitors, including the CS6x Versa.

---

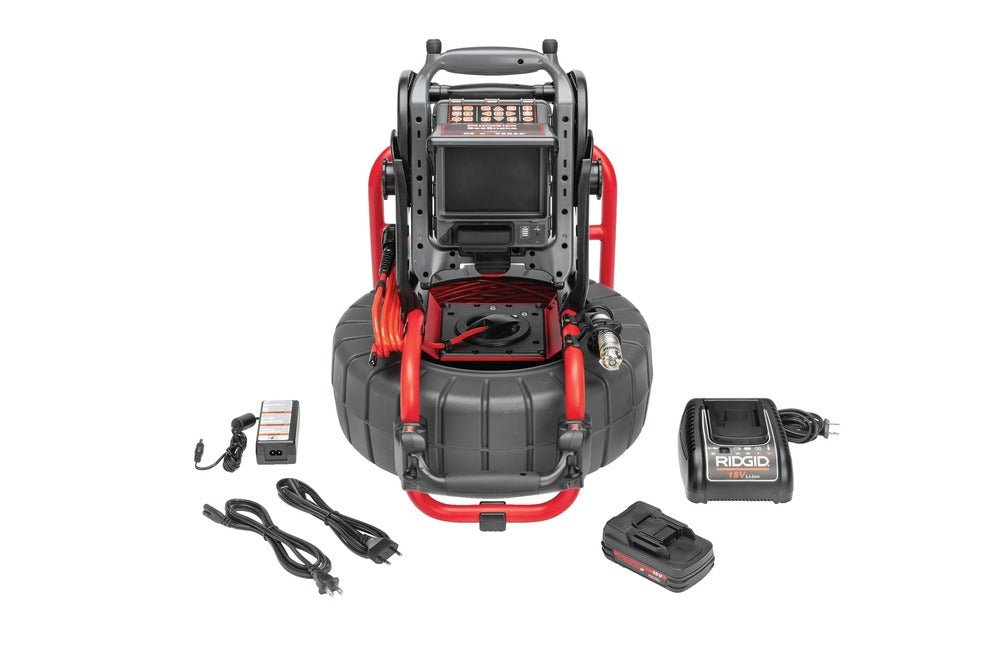

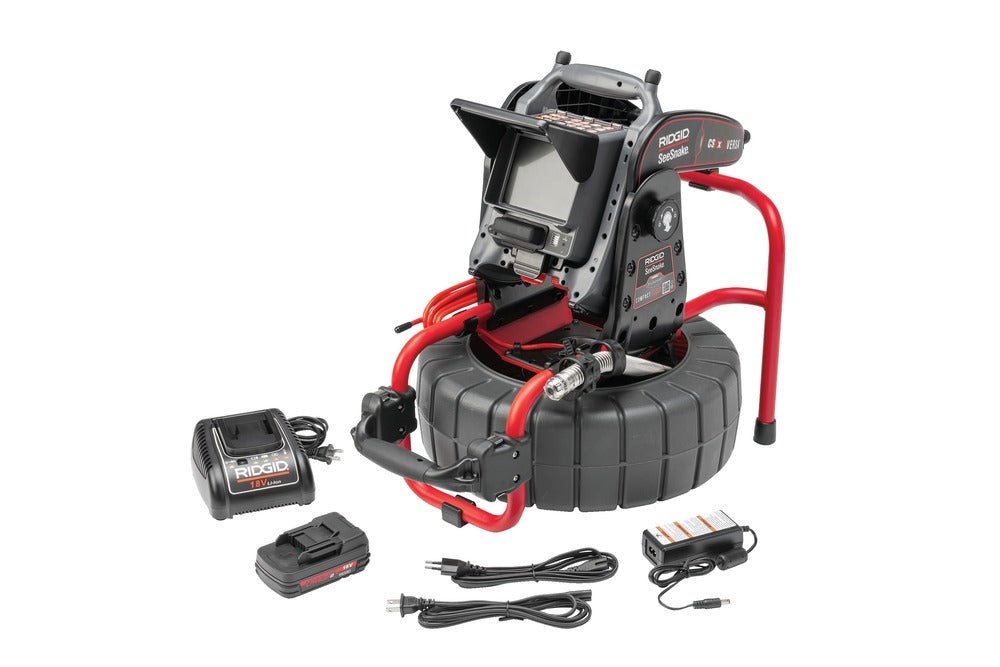

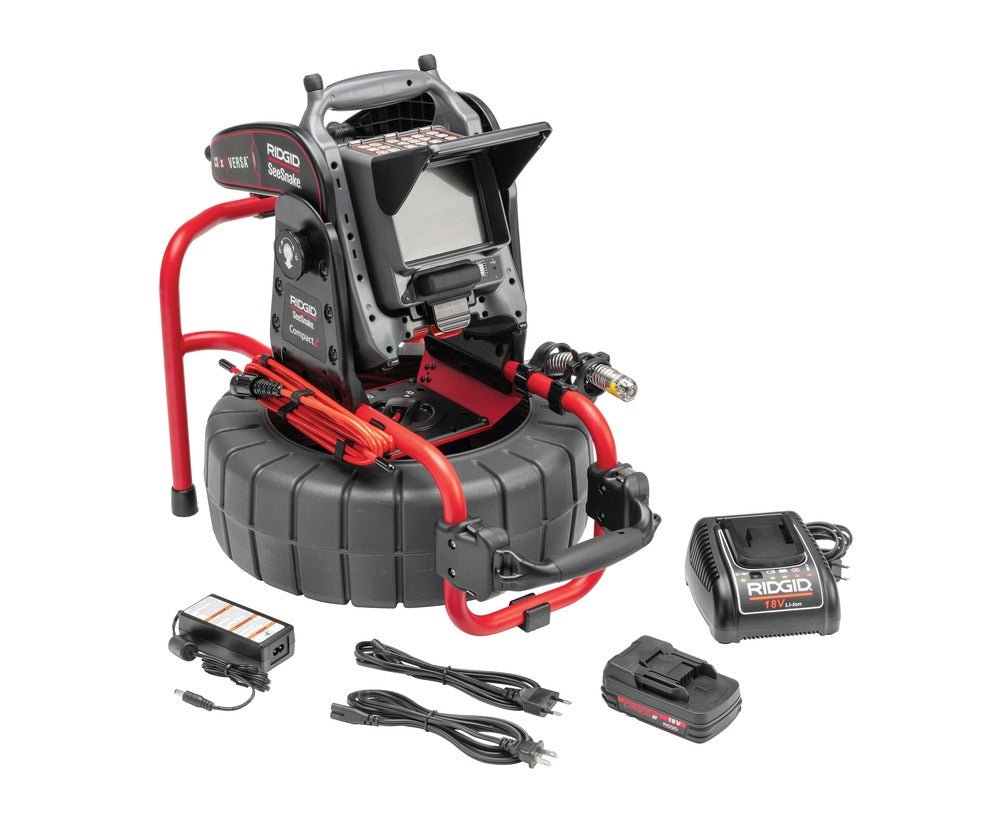

Supplied With

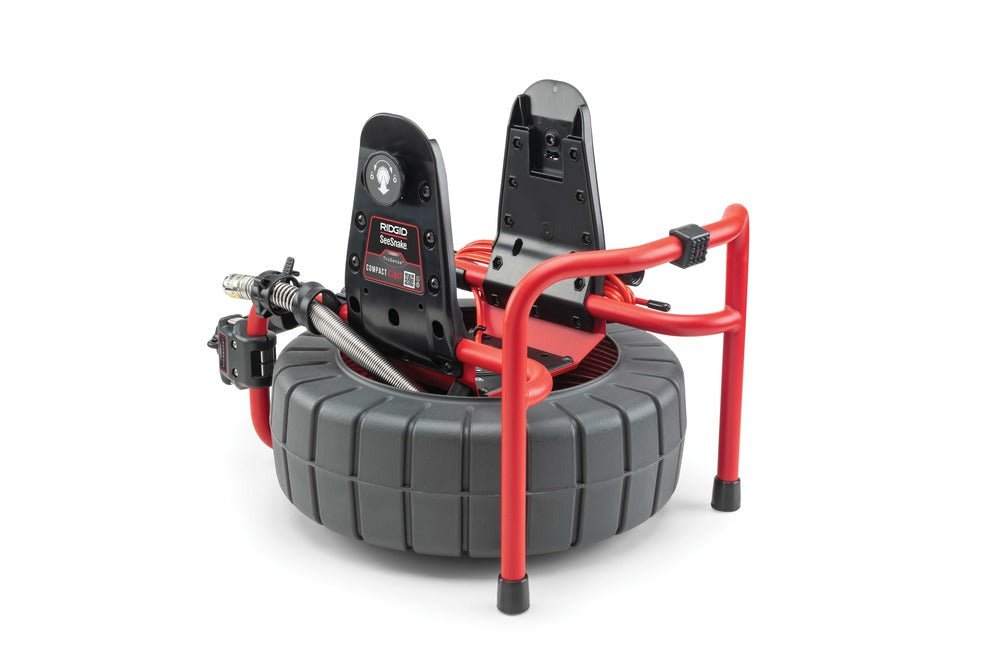

• RIDGID SeeSnake Compact C40 camera reel
• Docking system for compatible monitors
• Pipe guide kit
• Operator’s manual

---

Technical Specifications

• Pipe Capacity: 38mm – 152mm (1.5" – 6")
• Push Cable Length: 40m (131 ft)
• Push Cable Diameter: 6.7mm
• Fibreglass Core Diameter: 3mm
• Minimum Bend Radius: 63.5mm
• Camera Diameter: 25mm (1")
• Camera Type: Self-Levelling
• Resolution: 640 × 480
• Light Source: High-intensity LED
• Sonde Frequency: 512 Hz
• Ingress Protection (without monitor): IPx5
• Operating Temperature: −10°C to 50°C
• Storage Temperature: −10°C to 70°C
• Weight: 8.0 kg
• Dimensions: 635mm (L) × 356mm (W) × 432mm (H)

---

Why Choose the RIDGID Compact C40?

The SeeSnake Compact C40 combines portability, durability, and advanced imaging technology to deliver a powerful inspection solution for professional drainage work. With TruSense sensors, wireless reporting capability, and RIDGID’s renowned reliability, it provides accurate diagnostics and professional inspection reports directly from the job site.
