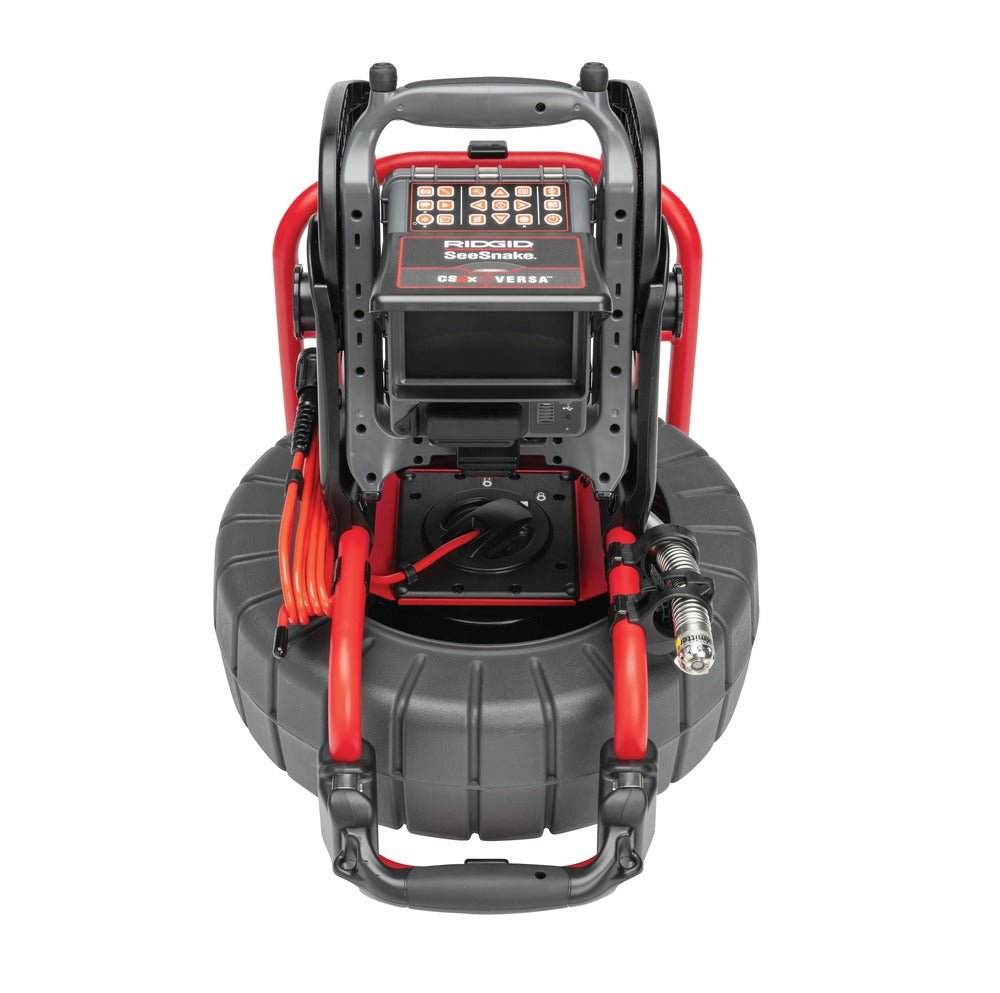

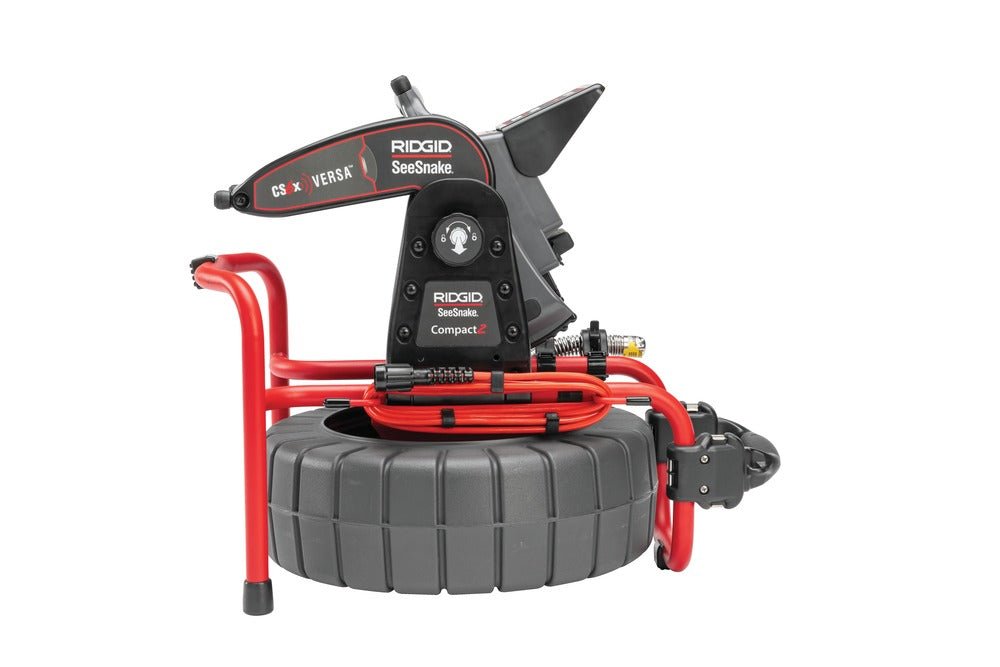

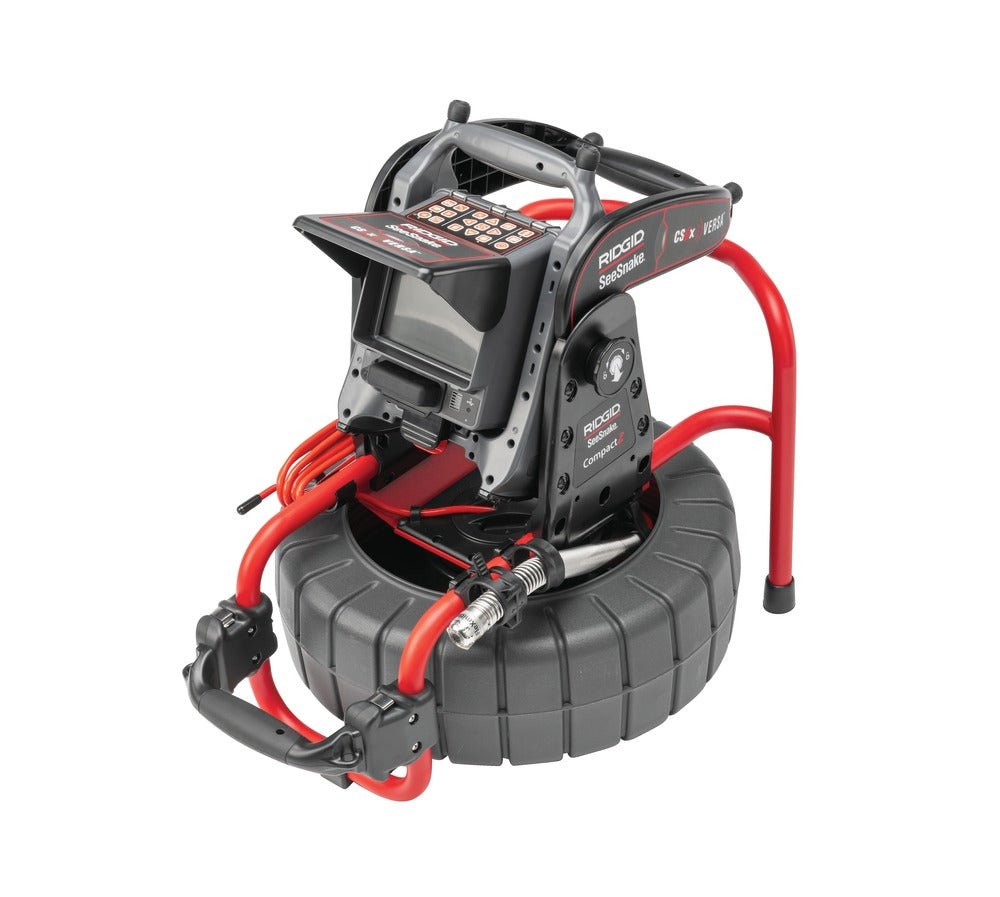

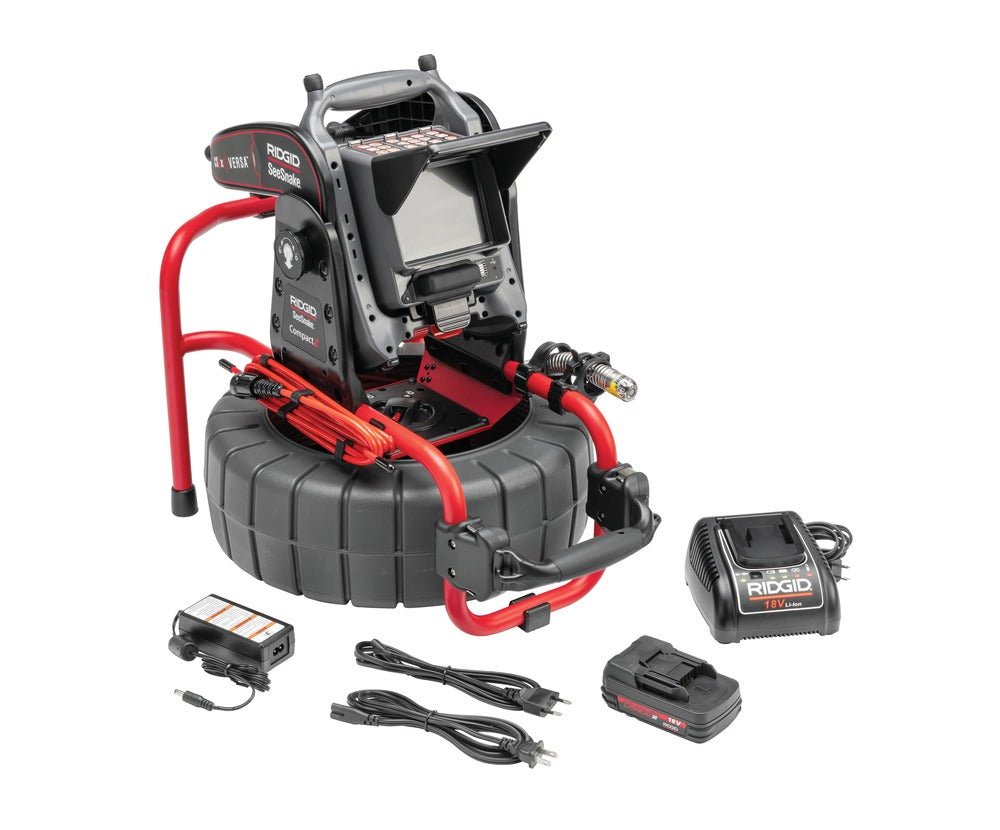

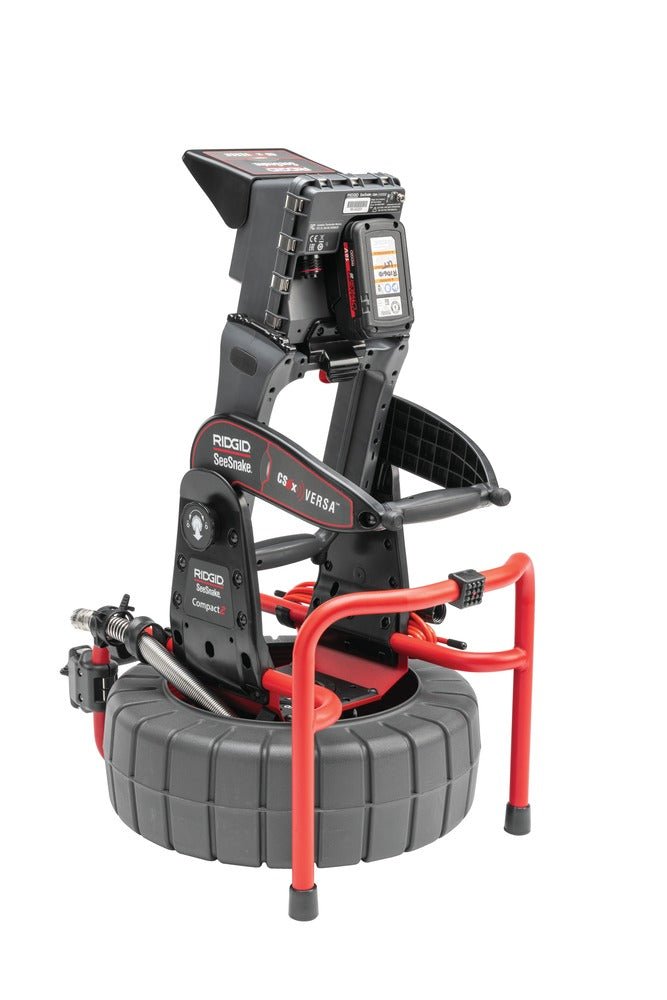

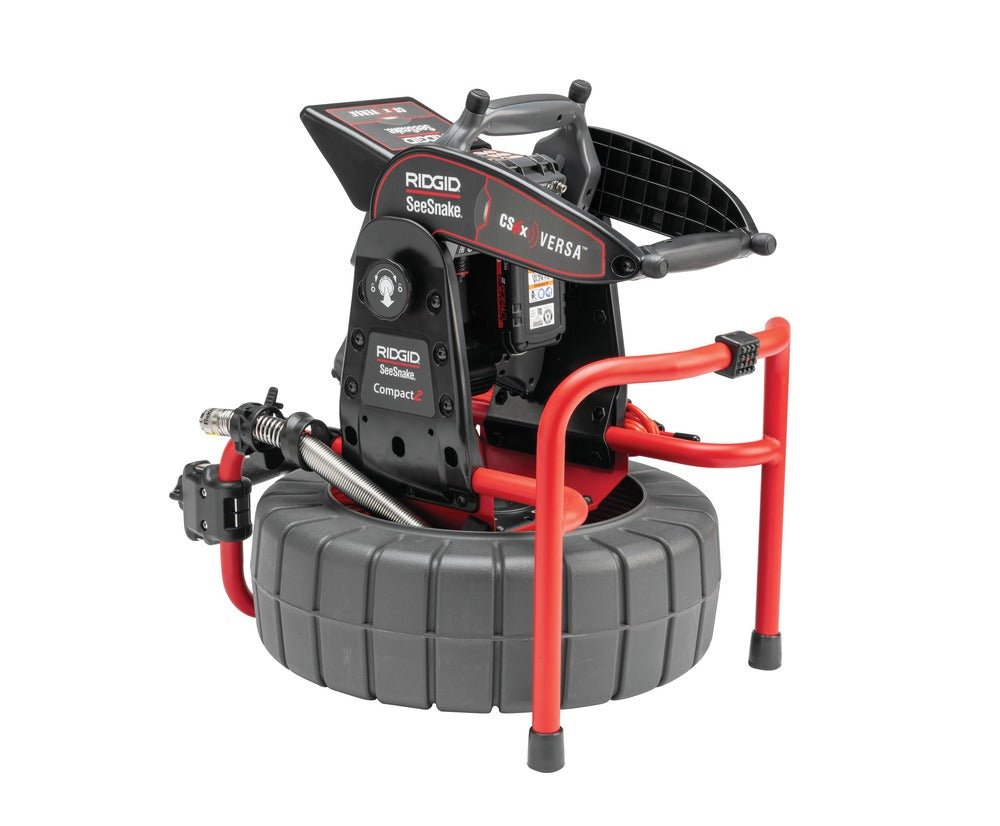

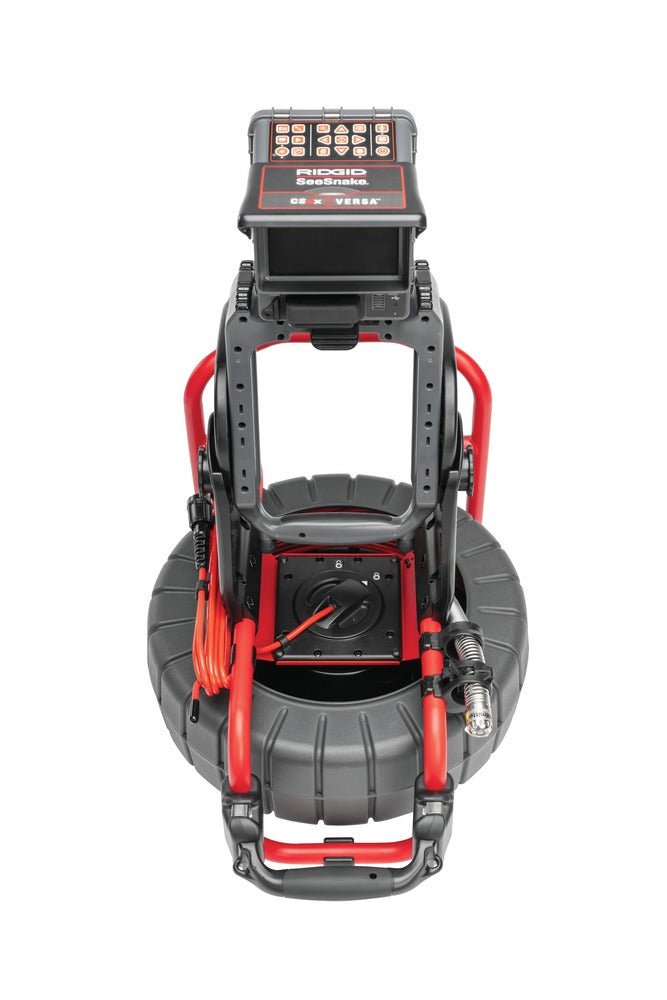

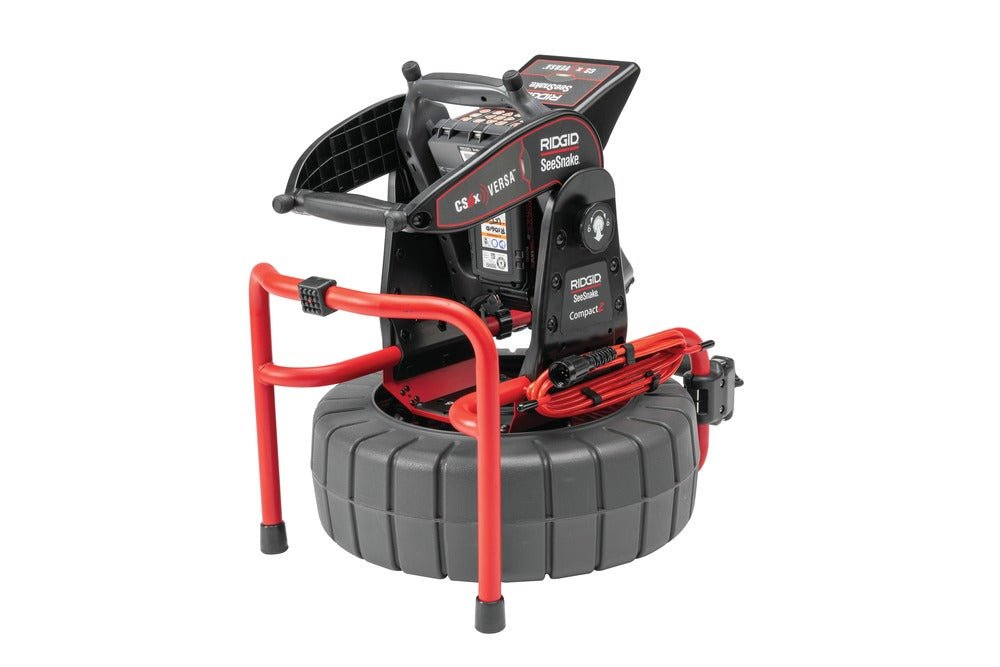

RIDGID SeeSnake® Compact2 with CS6x Versa Camera System

RIDGID SeeSnake® Compact2 with CS6x Versa Camera System

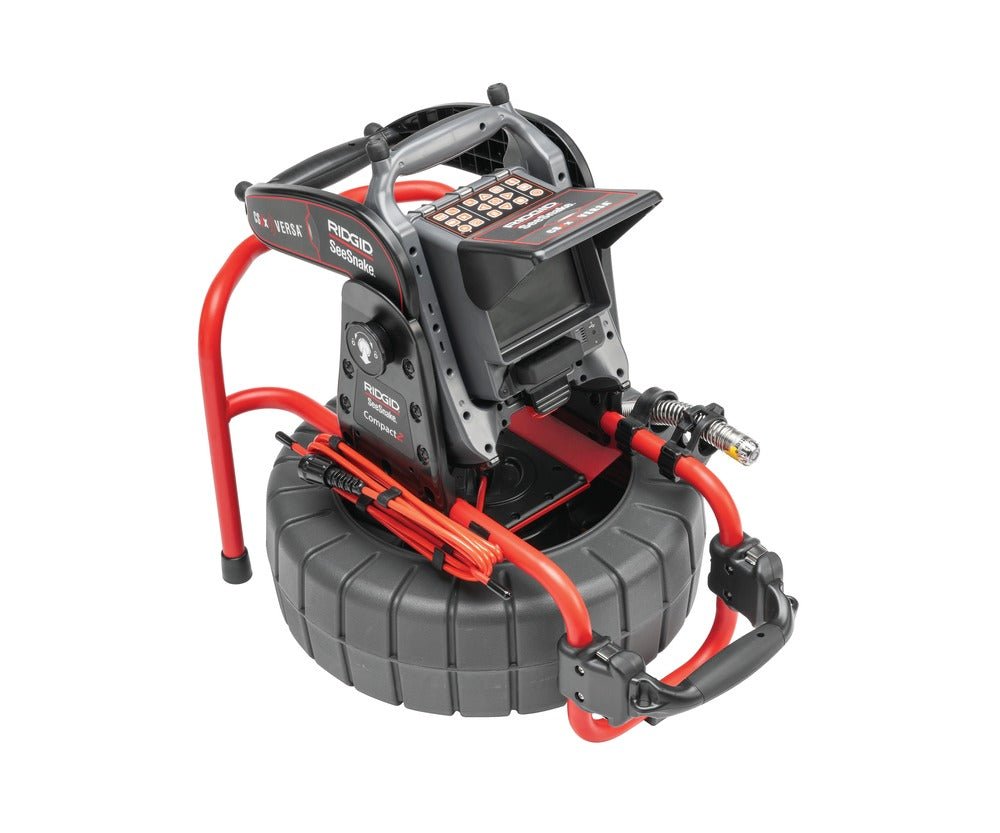

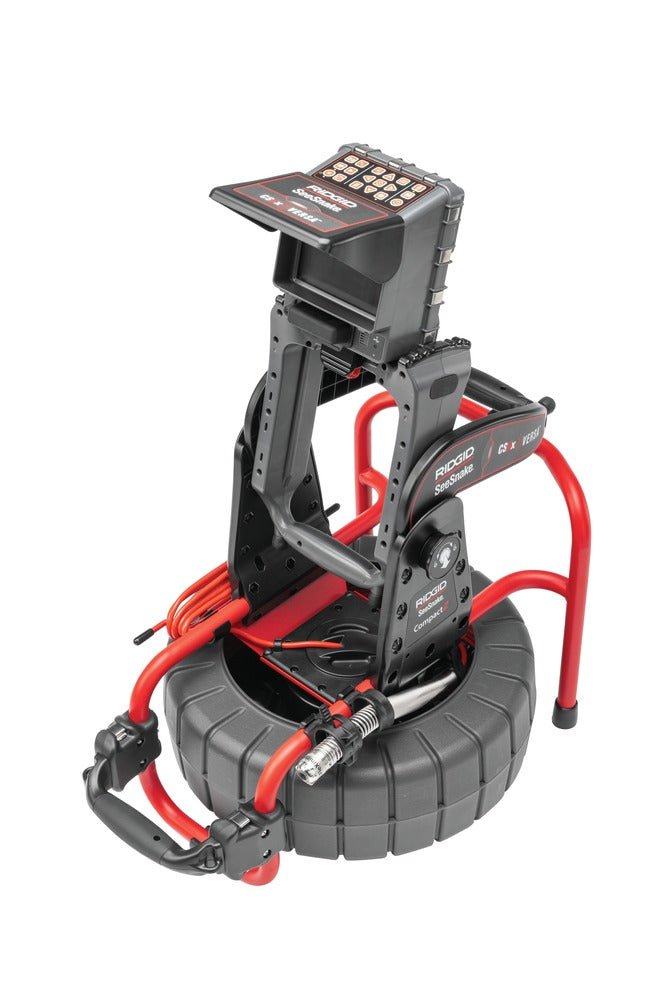

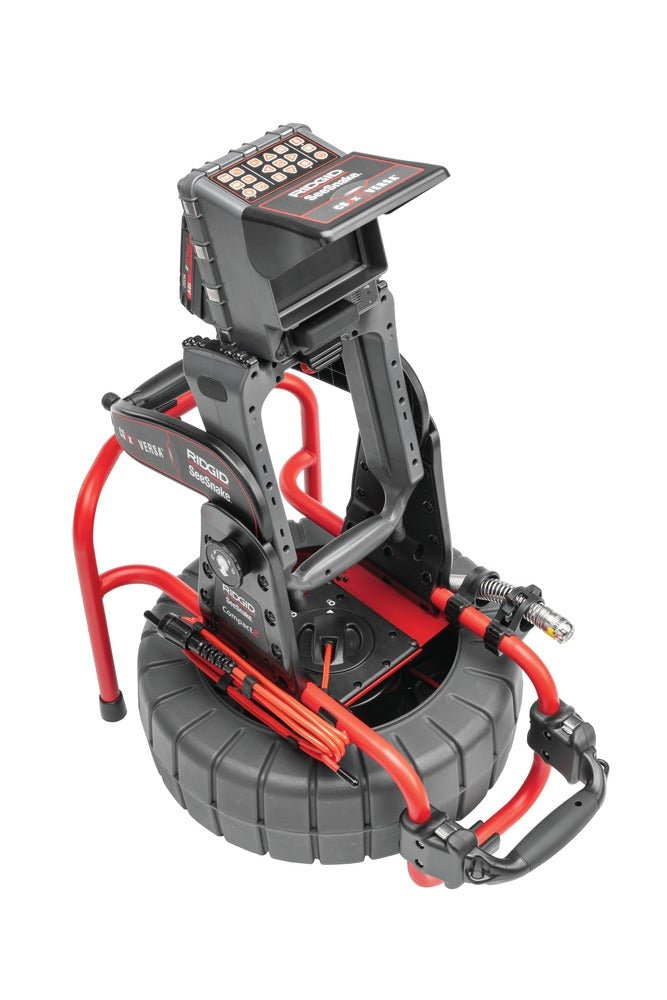

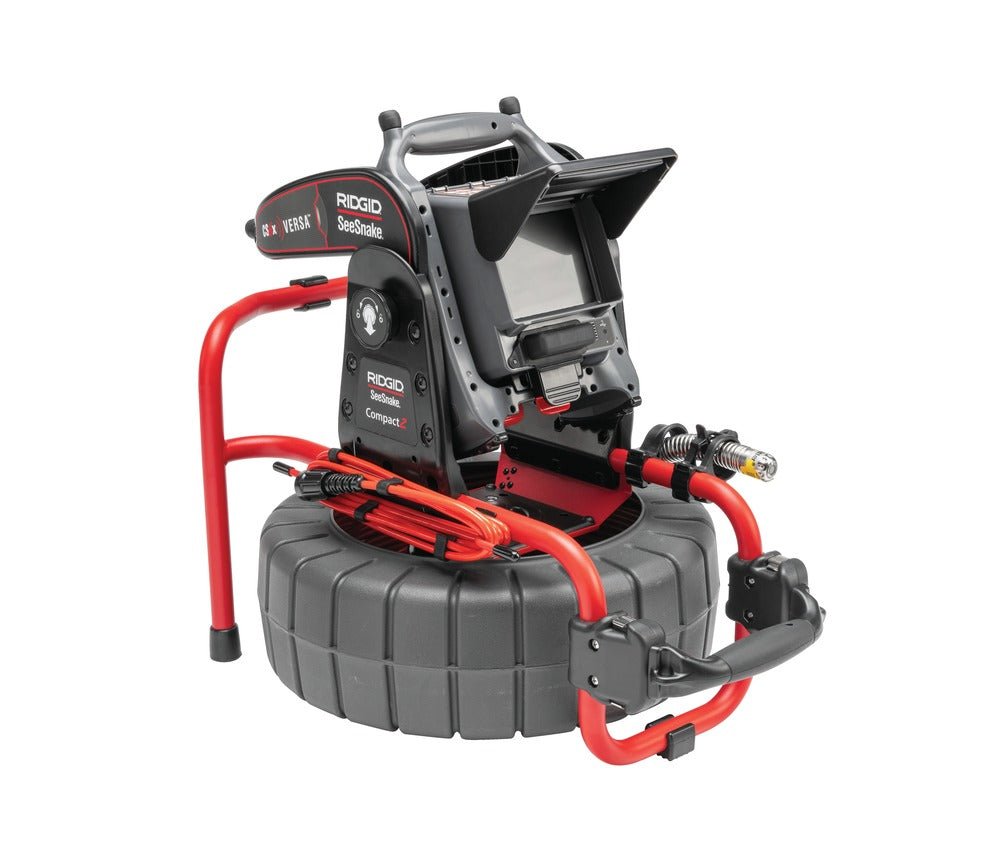

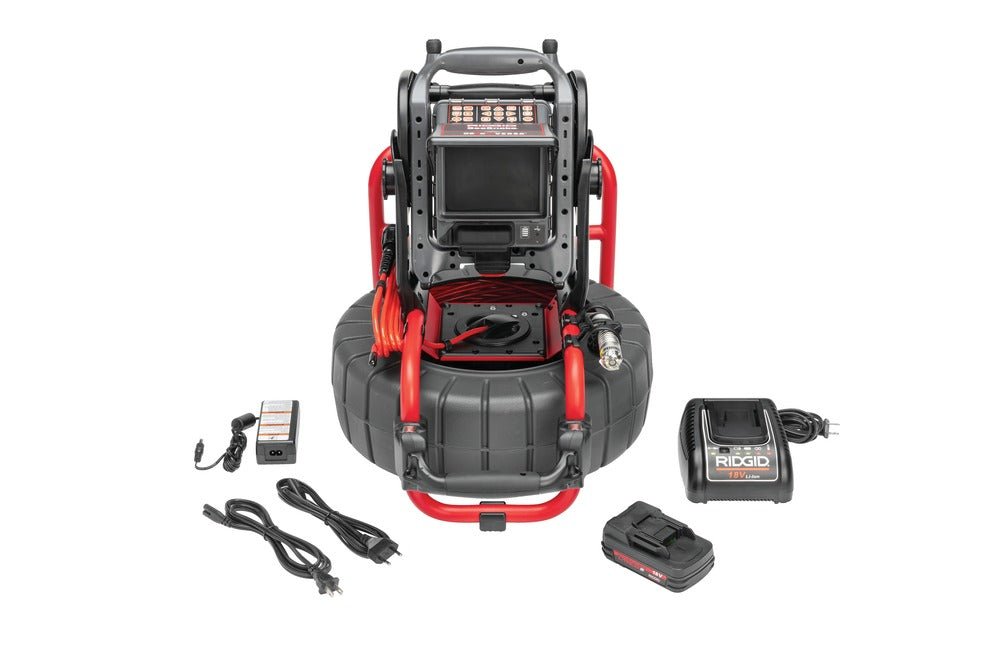

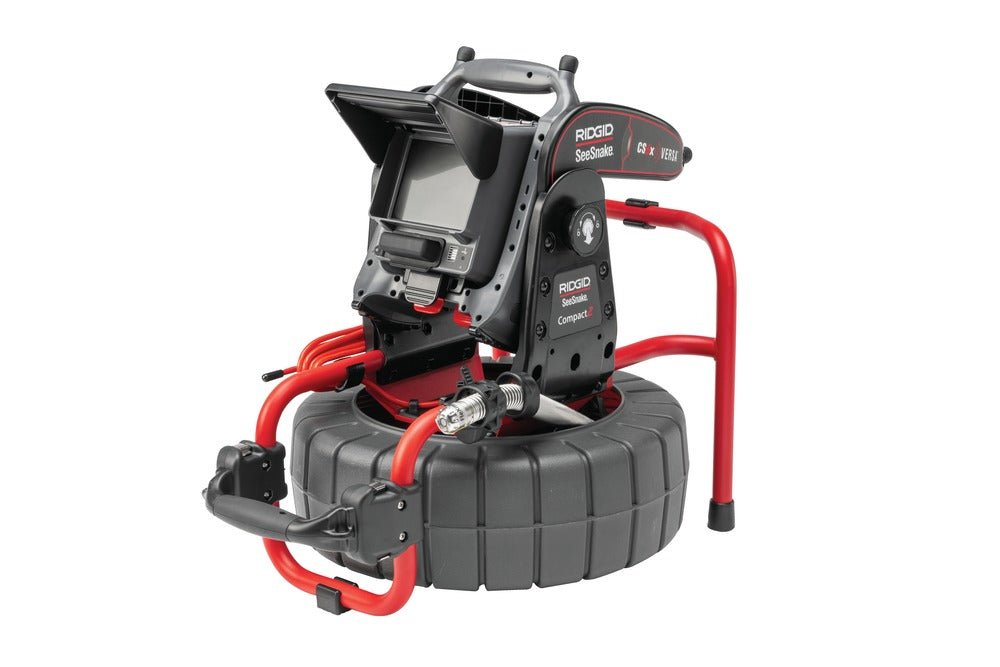

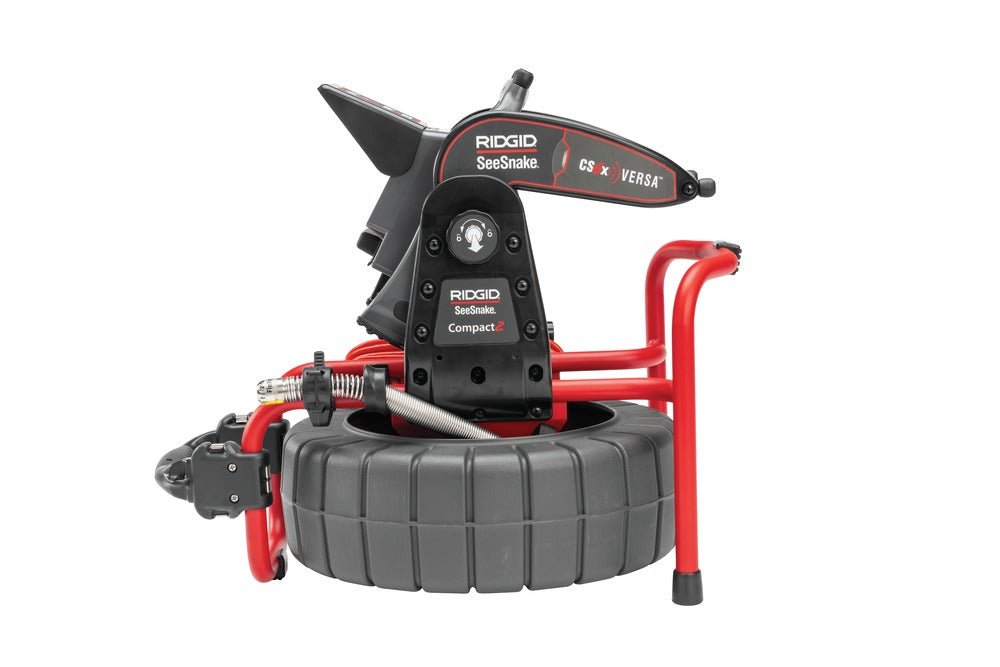

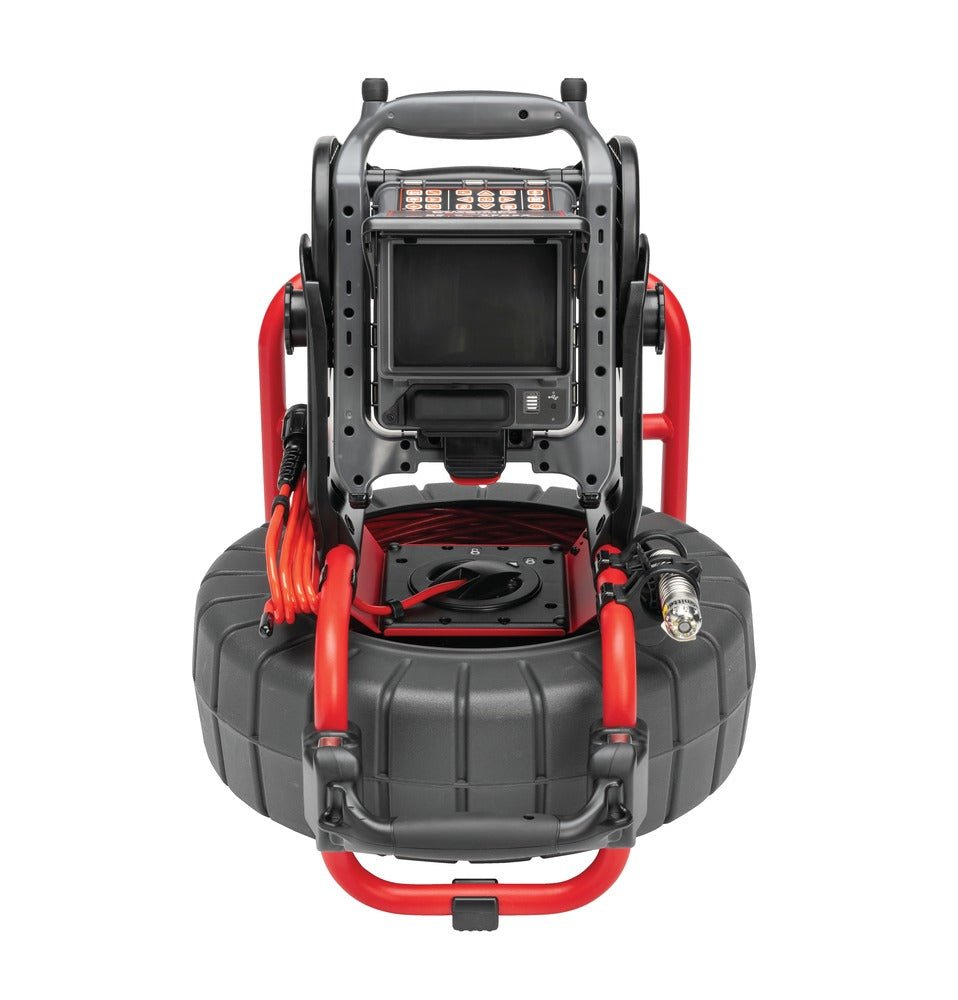

The RIDGID SeeSnake® Compact2 with CS6x Versa Monitor is a professional drain inspection system engineered to deliver high-performance diagnostics in a compact, highly portable format. Designed for plumbers, drainage contractors and service engineers, it combines a 100' (30m) push cable with a self-levelling camera head to provide clear, upright imaging in pipelines from 1.5″ to 6″ diameter.

The system features a quick-release docking platform for the CS6x Versa digital recording monitor with integrated Wi-Fi, enabling fast jobsite setup and flexible positioning. The monitor can be tilted while docked or removed entirely for optimal viewing and recording convenience.

A robust metal frame ensures stability during cable deployment and retrieval, while the powerful 512 Hz FlexMitter® sonde provides long-range location capability without compromising manoeuvrability through tight bends. With a minimum bend radius of just 2.5″ (63mm), the Compact2 excels in navigating smaller diameter pipework and complex runs.

Key Features

• 100' (30m) push cable for extended drain inspections

• 1″ (25mm) self-levelling camera head for upright, consistent imaging

• Quick-release CS6x Versa monitor dock for rapid setup

• Integrated Wi-Fi recording capability (via CS6x Versa monitor)

• FlexMitter® 512 Hz sonde for precise line locating

• 2.5″ (63mm) minimum bend radius for tight pipe navigation

• Sturdy metal frame for improved stability and durability

• IPx5 rated (without monitor) for jobsite protection

Technical Specifications

• Line Capacity: 1.5″ – 6″ (40mm – 150mm)

• Push Cable Length: 100' (30m)

• Push Cable Diameter: 0.27″ (6.7mm) with 3mm fibreglass core

• Minimum Bend Radius: 2.5″ (63.5mm)

• Camera Type: 1″ (25mm) Self-Levelling

• Resolution: 656 × 492 (NTSC) / 768 × 576 (PAL)

• Light Source: 6 LEDs

• Sonde Frequency: 512 Hz

• Weight (without batteries): 7.5 kg (16.6 lbs)

• Dimensions:

  • Length: 25″ (63.5 cm)

  • Width: 14″ (35.6 cm)

  • Height: 17″ (43.2 cm)

• Operating Temperature: 0°C to 40°C

• Storage Temperature: -10°C to 70°C

• Ingress Protection (without monitor): IPx5

The SeeSnake® Compact2 with CS6x Versa is an all-in-one inspection solution that combines portability, durability and advanced digital recording capability — ideal for professional drainage diagnostics and reporting.
