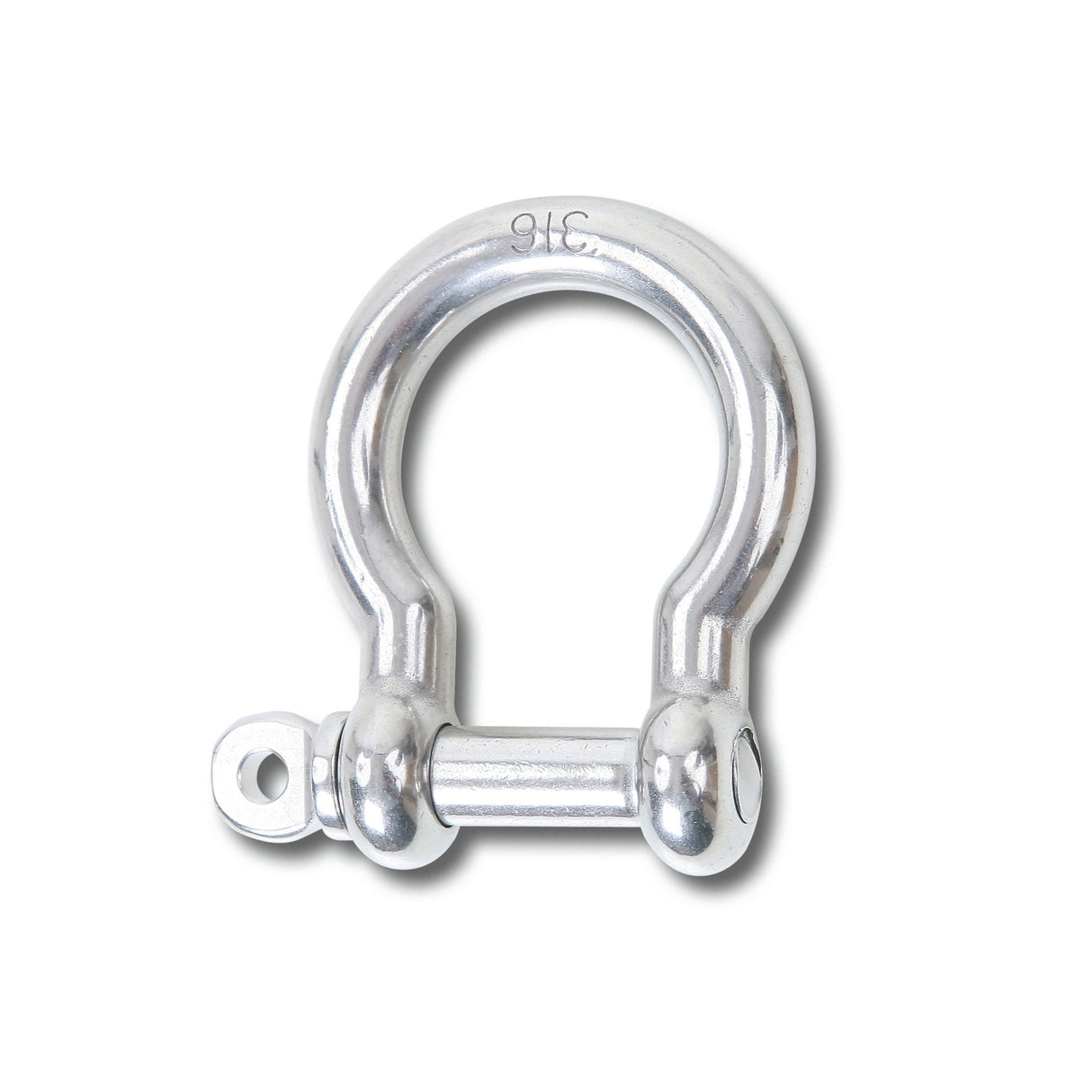

Robur Aisi 316 Bow Shackle - 8228 4
SKU WEB-082280204 Barcode 8014230636153
Available to order from our supplier. Contact us to confirm quantities and lead times.
- Expert UK product support
- Authorised distributor
- 30 day returns
Delivery & returns
Despatch times vary by item. Check the product-specific lead time shown on this page. Supplier-shipped and larger items may take longer.
Delivery options and transit times are shown at checkout. Transit time starts after despatch and excludes weekends and bank holidays unless the selected service states otherwise. Tracking is provided when available.
30 day returns on unused items in original packaging.
Description
Description
Overview
Beta Tools AISI 316 bow shackle is a compact wire rope accessory designed for professional fastening, connection and light rigging duties where dependable corrosion resistance is required. Made from stainless steel, this 4 mm bow shackle is suited to trade environments such as maintenance work, installation tasks and marine-adjacent applications where exposure conditions can be more demanding than standard indoor use. The bow shape allows more flexible connection across wider attachment points, helping improve versatility in practical setups. With a 60 kg working load limit and 540 kg breaking force, it offers clear load data for specification-led purchasing. Laboratory testing includes chemical analysis and tensile testing, while supporting documentation includes technical product specifications and a UNI EN10204 type 2.2 test report.
Features
- Provides a 4 mm AISI 316 stainless steel bow shackle for wire rope accessory applications.
- Delivers a 60 kg working load limit for controlled light-duty fastening and rigging tasks.
- Ensures a 540 kg breaking force rating for clear technical reference during selection.
- Supports use in corrosion-sensitive environments thanks to stainless steel construction.
- Enables flexible connection across wider attachment points with the bow shackle design.
- Offers laboratory-tested quality including chemical analysis and tensile testing.
- Improves traceability with available technical product specifications and UNI EN10204 type 2.2 test report.
Specifications
| SKU | 082280204 |
|---|---|
| Range/Series | 8228 |
| Product Type | Bow shackle |
| Size/Capacity | 4 mm |
| Weight | 9 g |
| Material | AISI 316 stainless steel |
| Pieces | 10 |
| Standard(s) | UNI EN10204 type 2.2 |
| Application | Wire rope accessories, light-duty rigging, fastening and connection tasks |
| Torque | |
| Length | 120 mm package length |
| Width | 50 mm package width |
| Height | 15 mm package height |
| Compatibility | Wire rope accessory setups |
| Field | D: 4 mm; A: 13 mm; B: 20 mm; E: 8 mm; WFL: 60 kg; BF: 540 kg |
