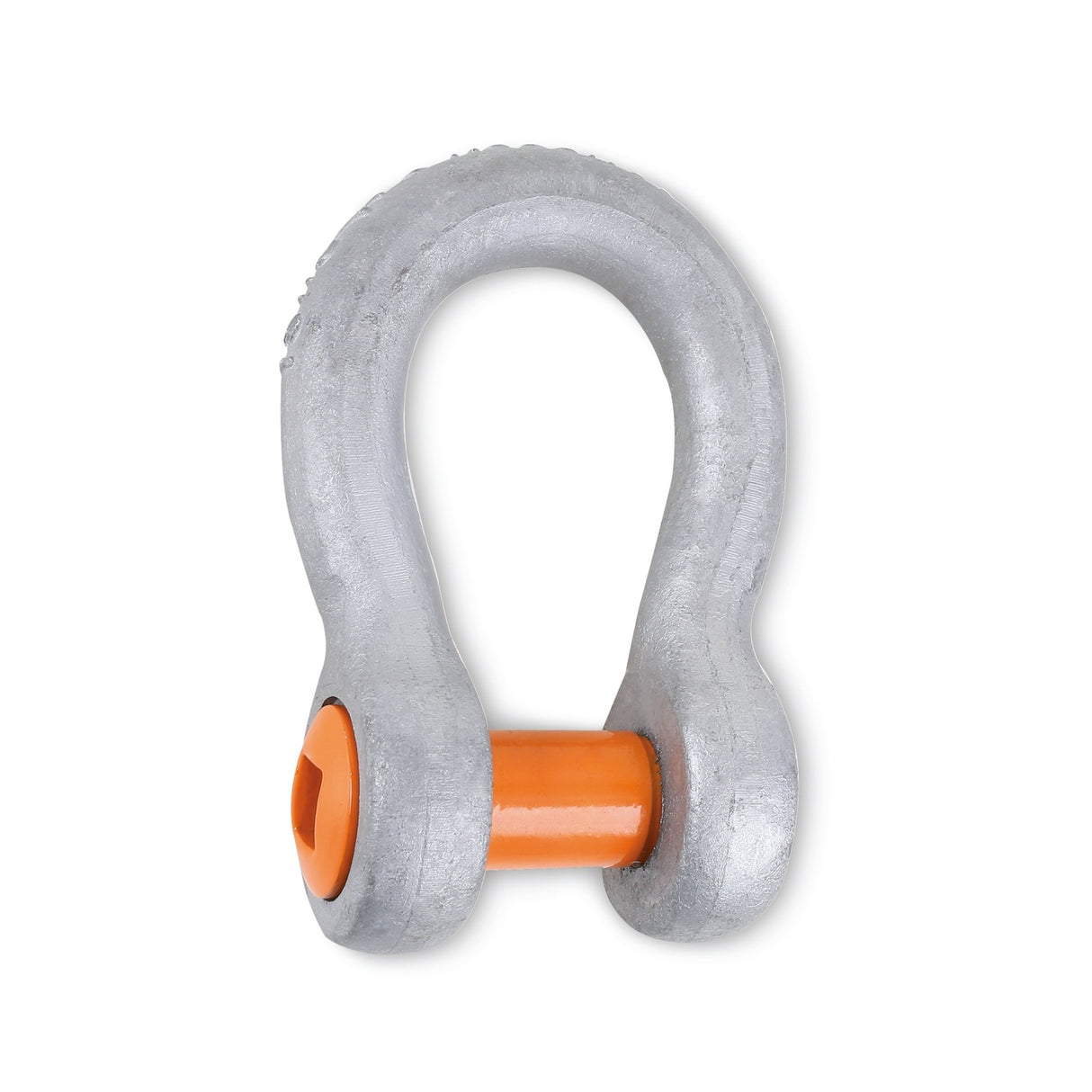

Robur Bow Shackle With Square Sunken Hole Screw Pin - 8032 T2
SKU WEB-080320012 Barcode 8014230717616
Available to order from our supplier. Contact us to confirm quantities and lead times.
- Expert UK product support
- Authorised distributor
- 30 day returns
Delivery & returns
Despatch times vary by item. Check the product-specific lead time shown on this page. Supplier-shipped and larger items may take longer.
Delivery options and transit times are shown at checkout. Transit time starts after despatch and excludes weekends and bank holidays unless the selected service states otherwise. Tracking is provided when available.
30 day returns on unused items in original packaging.
Description
Description
Overview
Beta Tools bow shackle with square sunken hole screw pin is a professional-grade shackle designed for wire rope accessories, lifting setups and general rigging applications. Produced in high-tensile alloy steel to Grade 6 specification, it is heat treated by hardening and tempering to support dependable performance in demanding trade and industrial environments. The hot-dip galvanised body helps improve corrosion resistance in exposed working conditions, while the 2000 kg Working Load Limit makes it suitable for a wide range of handling, securing and connection tasks. For added control in service and inspection, both the pin and body carry a traceability code. This model is also backed by documented laboratory testing, including tensile, fatigue and proof load testing, making it a practical choice where technical assurance, durability and clear product identification are important.
Features
- Delivers a 2000 kg Working Load Limit for professional lifting and rigging applications.
- Provides Grade 6 performance with high-tensile alloy steel construction.
- Ensures improved durability through hardening and tempering heat treatment.
- Withstands challenging environments with a hot-dip galvanised body finish.
- Supports inspection and asset control with traceability code on both pin and body.
- Offers a square sunken hole screw pin design for secure assembly.
- Reduces uncertainty by referencing chemical, metallographic, tensile and fatigue testing.
- Enables specification-led purchasing with available UNI EN10204 and CE documentation.
Specifications
| SKU | 080320012 |
|---|---|
| Range/Series | 8032 |
| Product Type | Bow shackle with square sunken hole screw pin |
| Size/Capacity | WLL 2000 kg |
| Height | H 21 mm |
| Weight | 290 g |
| Material | High-tensile alloy steel |
| Finish | Hot-dip galvanised body |
| Standard(s) | UNI EN10204 type 2.2, UNI EN10204 type 3.1, CE Declaration of Conformity |
| Application | Wire rope accessories, lifting and rigging applications |
| Pieces | 5 |
| Variant | T2 |
| ØD | 16 mm |
| ØA | 13 mm |
| Minimum Safety Factor | 6 |
