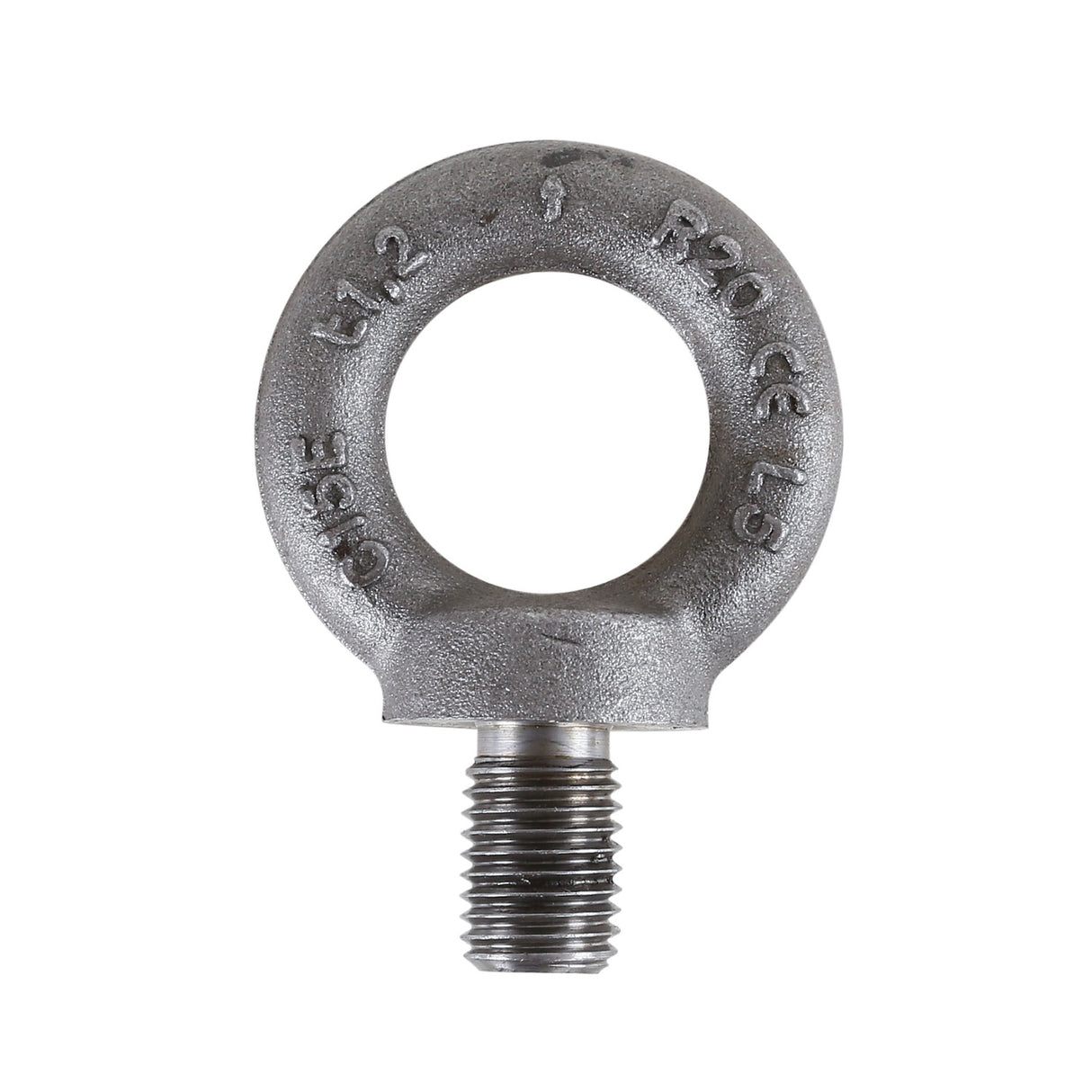

Robur Self-Coloured Lifting Eye Bolt M - 8040EN M6
SKU WEB-080400306 Barcode 8014230502113
Available to order from our supplier. Contact us to confirm quantities and lead times.
- Expert UK product support
- Authorised distributor
- 30 day returns
Delivery & returns
Despatch times vary by item. Check the product-specific lead time shown on this page. Supplier-shipped and larger items may take longer.
Delivery options and transit times are shown at checkout. Transit time starts after despatch and excludes weekends and bank holidays unless the selected service states otherwise. Tracking is provided when available.
30 day returns on unused items in original packaging.
Description
Description
Overview
Beta Tools lifting eye bolt M6 is a self-coloured wire rope accessory intended for professional lifting and handling applications where compact size, rated performance and product traceability are important. Designed as part of the lifting eyebolts and eye nuts family, this M6 lifting eye bolt has a 90 kg working load limit, a 1 mm thread pitch and dimension E of 11 mm, making it suitable for lighter-duty lifting point arrangements in workshop, maintenance and assembly settings. The component is produced with normalising heat treatment and a safety factor of 6, supporting dependable use within its specified rating. A traceability code is included for identification, while laboratory testing covers chemical analysis, metallographic analysis and tensile testing. Available certification and documentation options include technical product specifications, UNI EN10204 type 2.2, UNI EN10204 type 3.1 and CE Declaration of Conformity.
Features
- Provides a compact M6 lifting eye bolt format for lighter-duty lifting point applications.
- Ensures rated handling performance with a 90 kg working load limit.
- Supports correct installation with M6 thread size and 1 mm thread pitch.
- Offers a self-coloured finish suited to industrial and workshop environments.
- Withstands service demands with normalising heat treatment.
- Enables product identification through an integrated traceability code.
- Delivers added technical assurance through chemical, metallographic and tensile laboratory testing.
- Improves compliance support with available UNI EN10204 certification and CE Declaration of Conformity.
Specifications
| SKU | 080400306 |
|---|---|
| Range/Series | 8040EN |
| Product Type | Lifting eye bolt |
| Size/Capacity | M6 |
| Weight | 23.2 g |
| Material | Self-coloured |
| Pieces | 60 |
| Standard(s) | UNI EN10204 type 2.2, UNI EN10204 type 3.1, CE Declaration of Conformity |
| Application | Wire rope accessories; lifting points and light-duty lifting operations |
| Thread Pitch | 1 mm |
| WLL | 90 kg |
| Dimension E | 11 mm |
| Safety Factor | 6 |
| Heat Treatment | Normalising |
| Traceability | Traceability code |
| Package Length | 135 mm |
| Package Width | 70 mm |
| Package Height | 70 mm |
