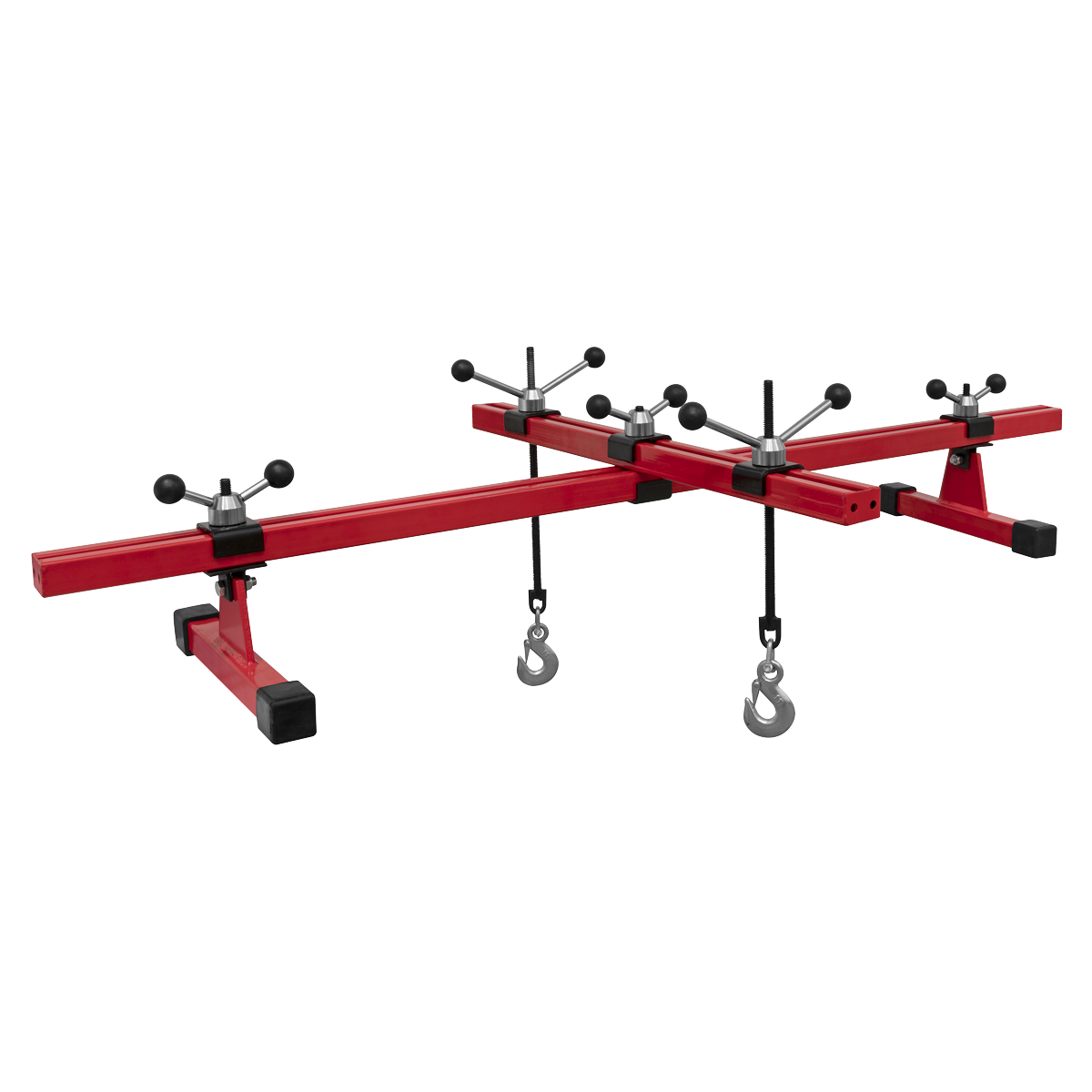

Sealey ES601 Engine Support Beam with Cross Beam 500kg Capacity
Designed to support and assist to accurately position engines during maintenance operations such as replacing anti-vibration mountings and certain body panels. Also used as an aid for the removal of gearboxes and transmissions. Beams supported on rubber feet and fine adjustment control is obtained by using screw/hook mechanisms. This model has the additional advantage of a 360° adjustable rotating cross beam to enable a greater range of support options when in use.
Features and Benefits
- Designed to support and assist to accurately position engines during maintenance operations such as replacing anti-vibration mountings and certain body panels.
- Also used as an aid for the removal of gearboxes and transmissions.
- Beams supported on rubber feet and fine adjustment control is obtained by using screw/hook mechanisms.
- This model has the additional advantage of a 360° adjustable rotating cross beam to enable a greater range of support options when in use.
Technical Specification
| Brand | Sealey |
|---|---|
| Model No. | ES601 |
| Barcode | 5054511891973 |
| Warranty | 1 year |
| Commodity Code | 7325999090 |
| Country of Origin | CHN |
| Pack Dimensions | H 1.7m — W 0.17m — D 0.07m |
| Gross Weight | 24kg |
| Capacity | 500kg |
| Cross Beam Maximum Width | 860mm |
| Cross Beam Minimum Width | 60mm |
| Main Beam Maximum Width | 1680mm |
| Main Beam Minimum Width | 60mm |
| Nett Weight | 23kg |
| Screw Hook Lengths | 450/350mm |
