Description
Description

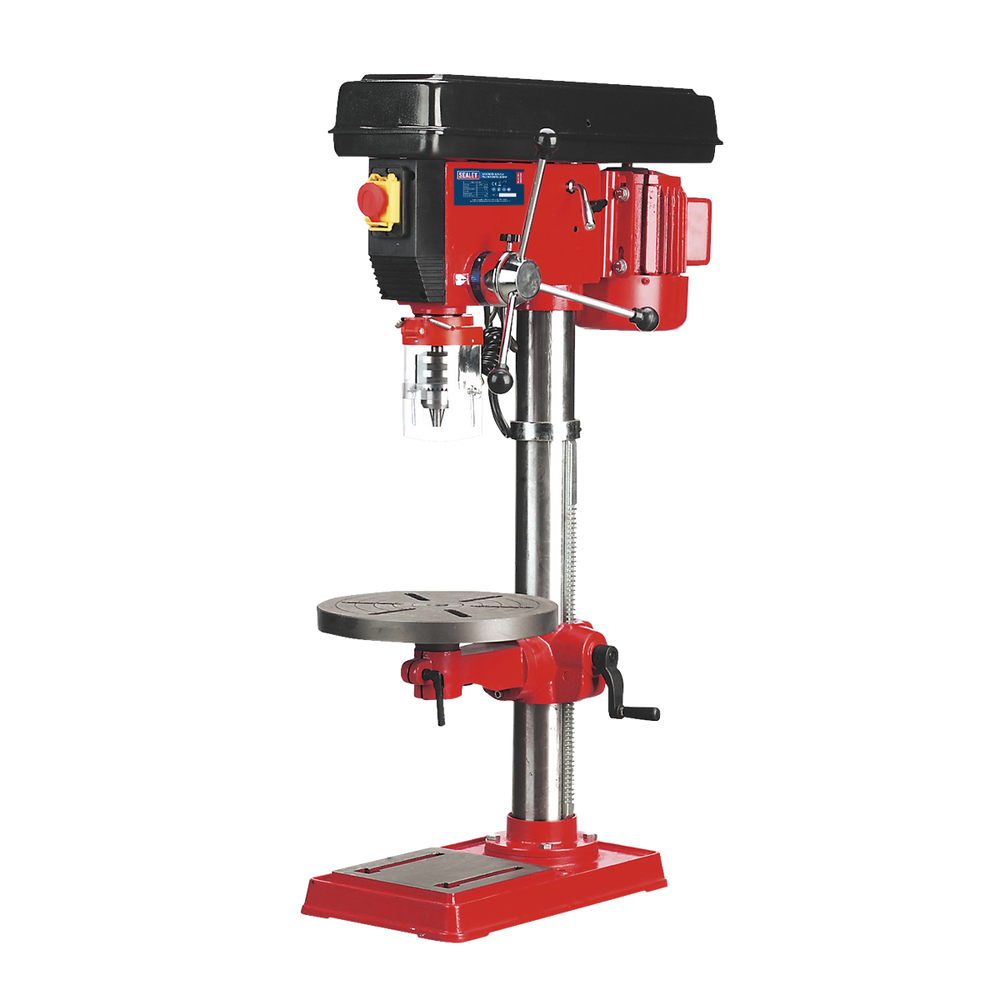

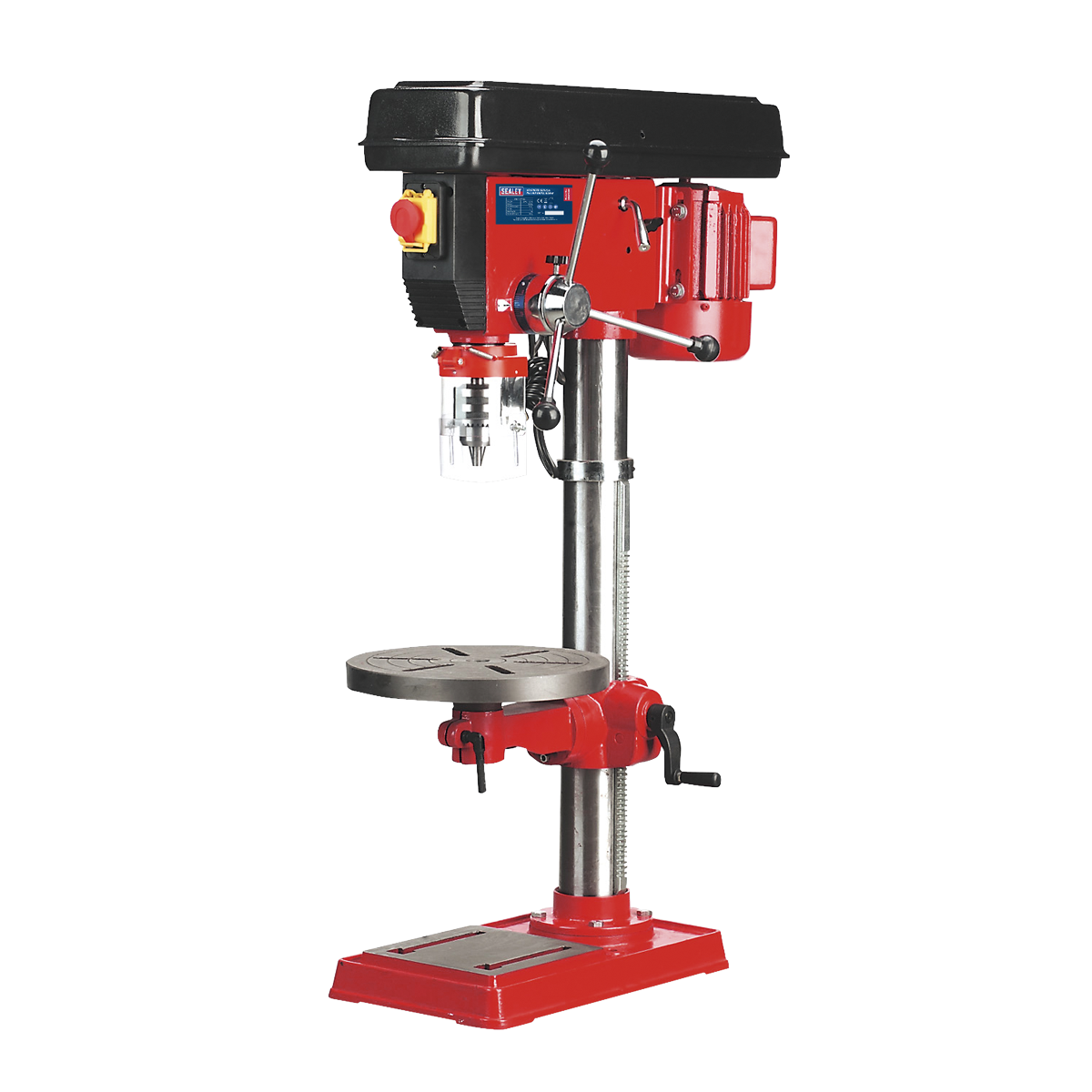

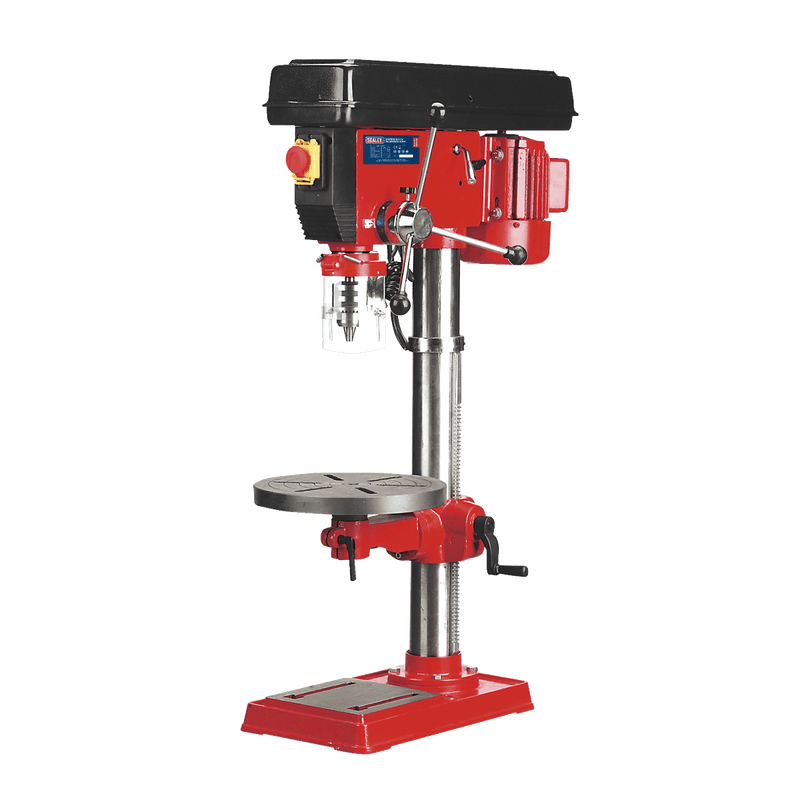

Sealey GDM150B Bench Mounting Pillar Drill 16-Speed 650W/230V
One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications. Meets Safety of Machinery (Safety) Directives 1992 (and amendments). Fitted with rack and pinion feed shafts with adjustable preset depth control for repetitive work. Features multiple speed drives and Morse taper spindle housing for accepting taper shank drill bits. Safety devices fitted include a no-voltage release switch, allowing insurance company approval for use in educational establishments. Access to drive belts is denied during operation by mechanical protection. Mortise attachment available, order Model No. MA10.
Features and Benefits
- One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications.
- Meets Safety of Machinery (Safety) Directives 1992 (and amendments).
- Safety devices fitted include a no-voltage release switch, allowing insurance company approval for use in educational establishments.
- All models offer multiple speed drives and access to drive belts is denied during operation by mechanical protection.
- All drills are fitted with rack and pinion feed shafts with preset depth control for repetitive work.
- Mortise attachment available, order Model No. MA10.
- 16mm(5/8") Capacity chuck No. 2MT.
- Height: 1070mm.
- Spindle Centre to Column: 178mm.
- Motor Power: 450W, Input Power: 650W.
- Column Diameter: 80mm.
- Spindle Travel: 80mm.
- Weight: 60kg.
Technical Specification
| Brand | Sealey |
|---|---|
| Model No. | GDM150B |
| Barcode | 5024209365659 |
| Warranty | 1 year |
| Commodity Code | 8459290000 |
| Country of Origin | CHN |
| Pack Dimensions | H 0.295m × W 0.89m × D 0.5m |
| Gross Weight | 62kg |
| Base Size | 460 x 275mm |
| Collar Diameter | 60mm |
| Column Diameter | 80mm |
| Drilling Capacity (Chuck Size) | 16mm |
| Maximum Distance Spindle to Base | 670mm |
| Maximum Distance Spindle to Table | 480mm |
| Motor Power (Start) | 450W(650W) |
| Nett Weight | 60kg |
| Number of Speeds | 16 |
| Optional Accessories | GDMX/KC - Keyless Pillar Drill Chuck 16mm |
| Overall Height | 1070mm |
| Speed Range | 120-3000rpm |
| Spindle Centre to Column | 178mm |
| Spindle Nose Taper | MT2 |
| Spindle Travel | 80mm |
| Supply | 230V |
| Swing | 356mm |
| Working Base Surface Size | 200 x 220mm |
| Working Table Surface Size | Ø310mm |
