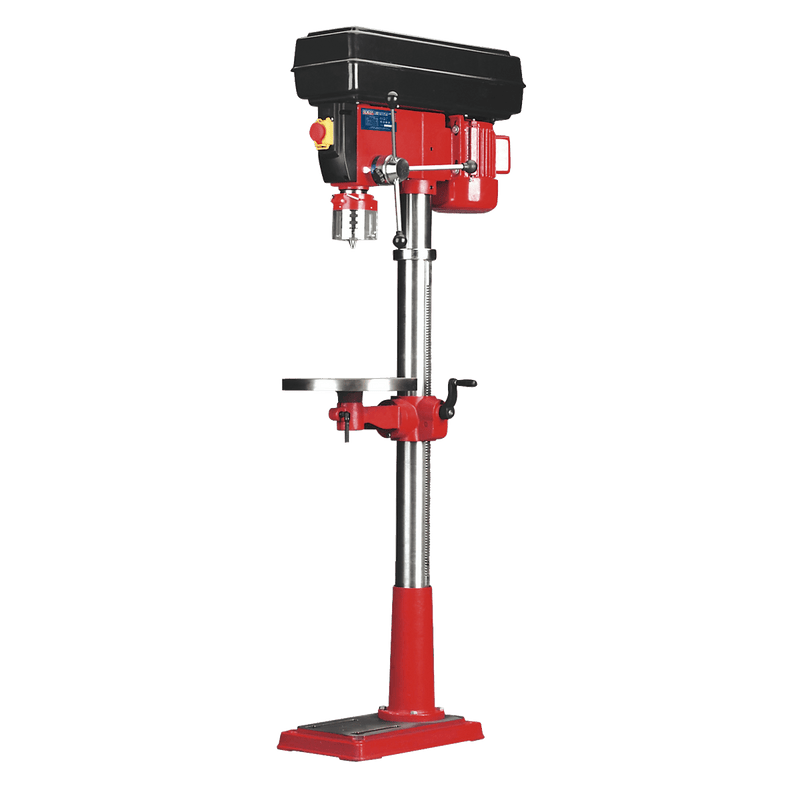

Sealey GDM200F/VS Floor Standing Pillar Drill Variable Speed 650W/230V
SKU GDM200F/VS Barcode 5024209548397
Available to order from our supplier. Contact us to confirm quantities and lead times.
Pay in 3 interest-free with shopPay or PayPal
- Expert UK product support
- Authorised distributor
- 30 day returns
Delivery & returns
Despatch times vary by item. Check the product-specific lead time shown on this page. Supplier-shipped and larger items may take longer.
Delivery options and transit times are shown at checkout. Transit time starts after despatch and excludes weekends and bank holidays unless the selected service states otherwise. Tracking is provided when available.
30 day returns on unused items in original packaging.
Description
Description
Sealey GDM200F/VS Floor Standing Pillar Drill Variable Speed 650W/230V
Variable speed model allows stepless control of drilling speed between minimum and maximum enabling finer control of finish and tolerance. The belt transmission uses two spring tensioned cone pulleys, the diameters of which can be adjusted by moving a centre idle pulley with the speed adjustment control lever. Safety devices fitted include a no-volt release switch, allowing insurance company approval for use in educational establishments. Supplied with chuck guard. Mortise attachment available, order Model No. MA10.
Features and Benefits
- Variable speed model allows stepless control of drilling speed between minimum and maximum enabling finer control of finish and tolerance.
- The belt transmission uses two spring tensioned cone pulleys, the diameter of which can be adjusted by moving a centre idle pulley with the speed adjustment control lever.
- Safety devices fitted include a no-volt release switch, allowing insurance company approval for use in educational establishments.
- Supplied with chuck guard.
- Mortise attachment available, order Model No. MA10.
- 16mm(5/8") Capacity chuck No. 2MT.
- Height: 1630mm.
- Spindle Centre to Column: 178mm.
- Motor Power: 450W, Input Power: 650W.
- Column Diameter: 80mm.
- Spindle Travel: 80mm.
- Weight: 71kg.
- This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Technical Specification
| Brand | Sealey |
|---|---|
| Model No. | GDM200F/VS |
| Barcode | 5024209548397 |
| Warranty | 1 year |
| Commodity Code | 8459290000 |
| Country of Origin | CHN |
| Pack Dimensions | H 0.315m × W 1.44m × D 0.67m |
| Gross Weight | 98kg |
| Base Size | 460 x 275mm |
| Collar Diameter | Ø60mm |
| Column Diameter | Ø80mm |
| Drilling Capacity (Chuck Size) | 16mm |
| Maximum Distance Spindle to Base | 1170mm |
| Maximum Distance Spindle to Table | 730mm |
| Motor Power (Start) | 450W(650W) |
| Nett Weight | 71kg |
| Number of Speeds | Variable |
| Optional Accessories | GDMX/KC - Keyless Pillar Drill Chuck 16mm |
| Overall Height | 1630mm |
| Speed Range | 150-2300rpm |
| Spindle Centre to Column | 178mm |
| Spindle Nose Taper | MT2 |
| Spindle Travel | 80mm |
| Supply | 230V |
| Swing | 356mm |
| Working Base Surface Size | 200 x 220mm |
| Working Table Surface Size | Ø310mm |
