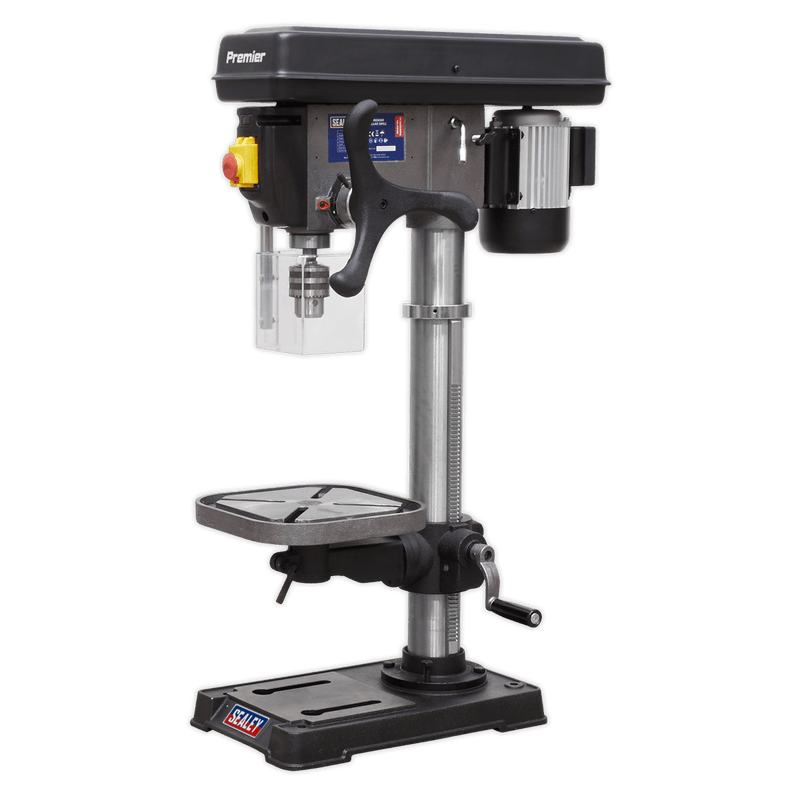

Sealey PDM155B Premier Bench Mounting Pillar Drill 16-Speed 370W 230V
One of a comprehensive range of Premier bench mounting pillar drills for the professional workshop. Features heavy-duty aluminium-bodied motor for long and reliable performance. No-volt release switch to prevent inadvertent start-up and pulley cover protected by microswitch to prevent drill operating when cover is open. Fitted with an integral work light which illuminates the drilling table giving operator a clear view of the drilling process (bulb not included). Supplied with an electrically inter-locked chuck guard. Large sized square table fitted with precision rack and pinion height adjustment.
Features and Benefits
- One of a comprehensive range of Premier bench mounting pillar drills for the professional workshop.
- Features heavy-duty aluminium-bodied motor for long and reliable performance.

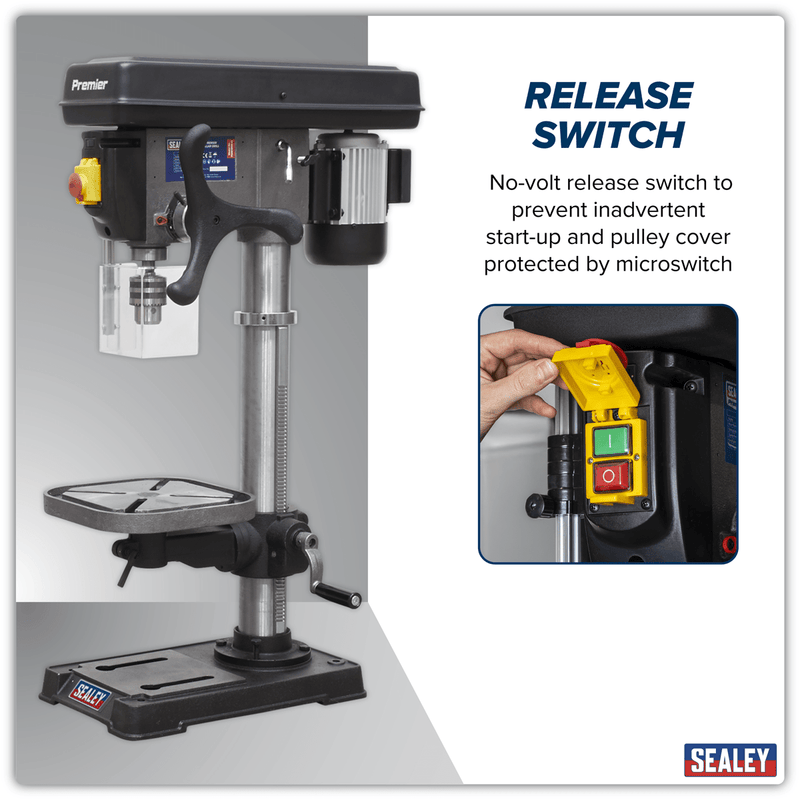

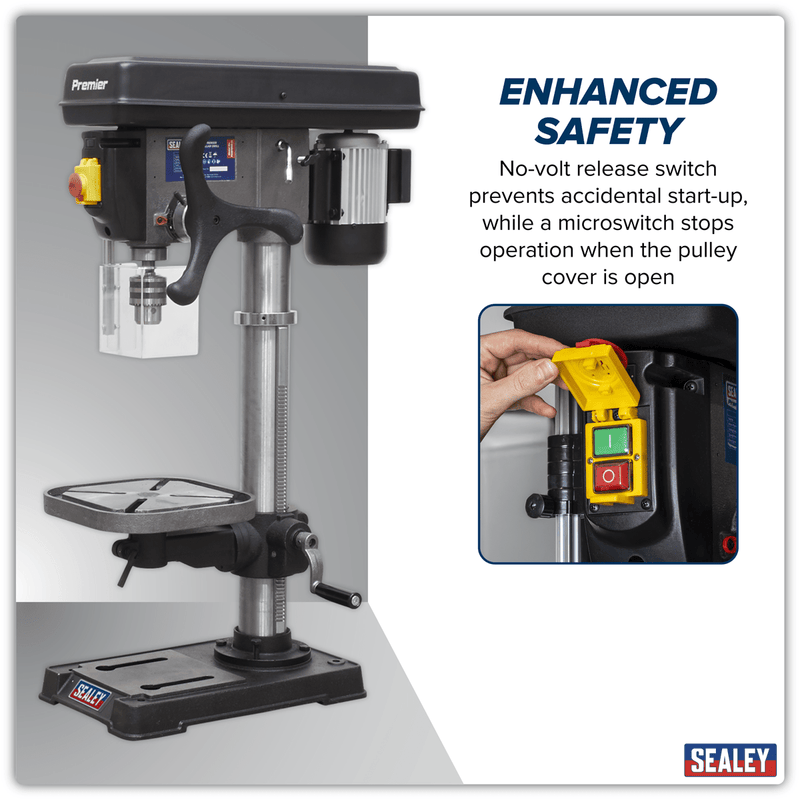

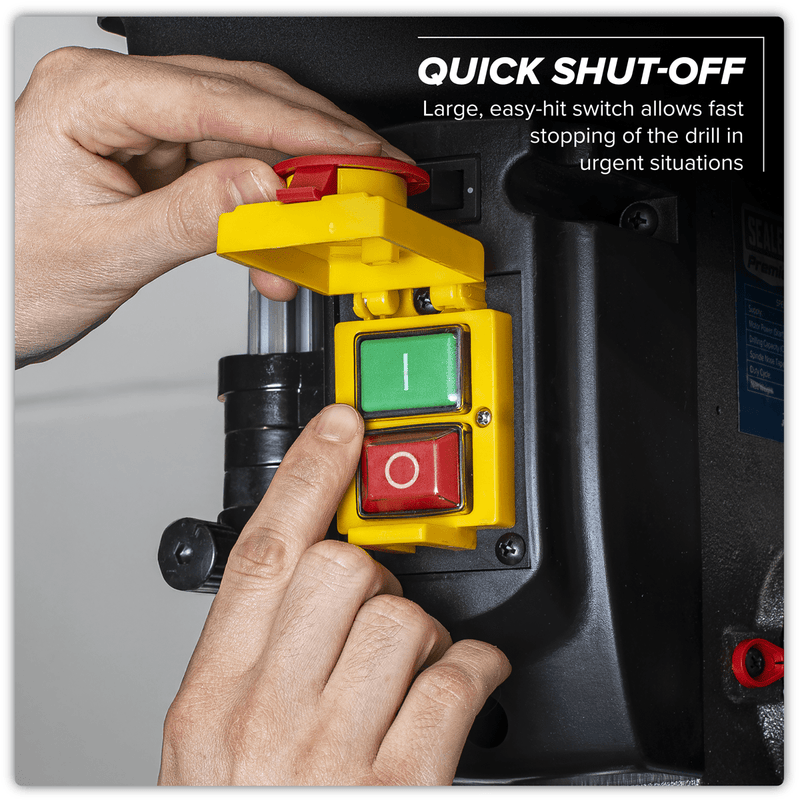

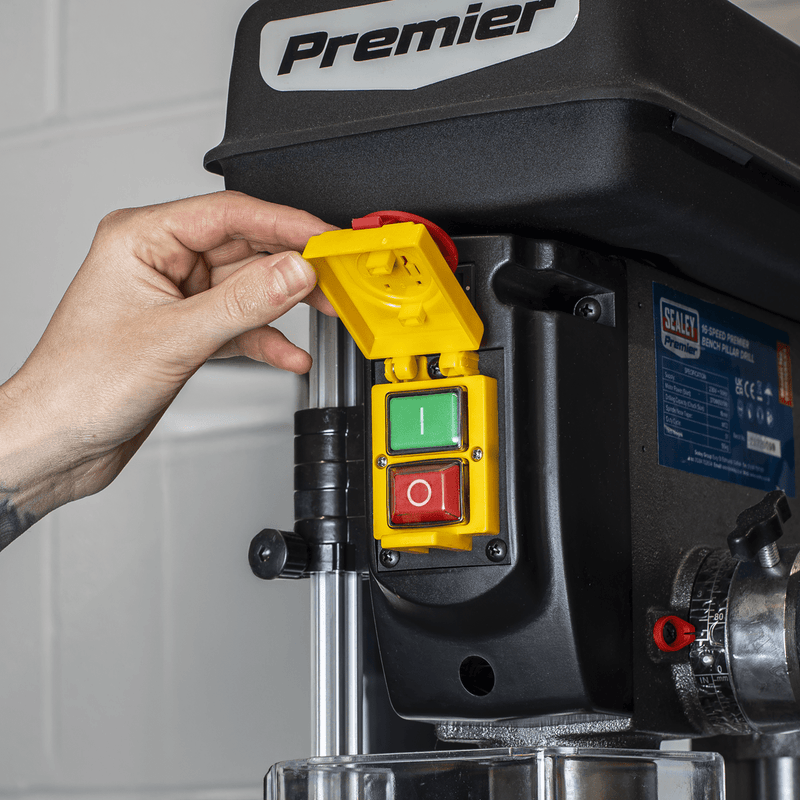

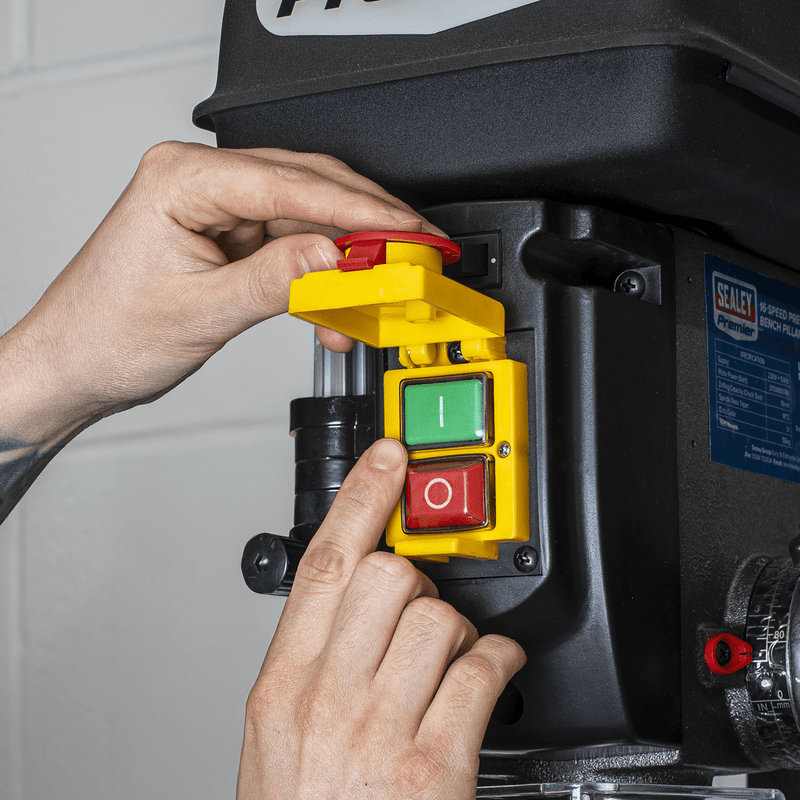

- No-volt release switch to prevent inadvertent start-up and pulley cover protected by microswitch to prevent drill operating when cover is open.
- Fitted with an integral work light which illuminates the drilling table giving operator a clear view of the drilling process (bulb not included).
- Supplied with an electrically inter-locked chuck guard.

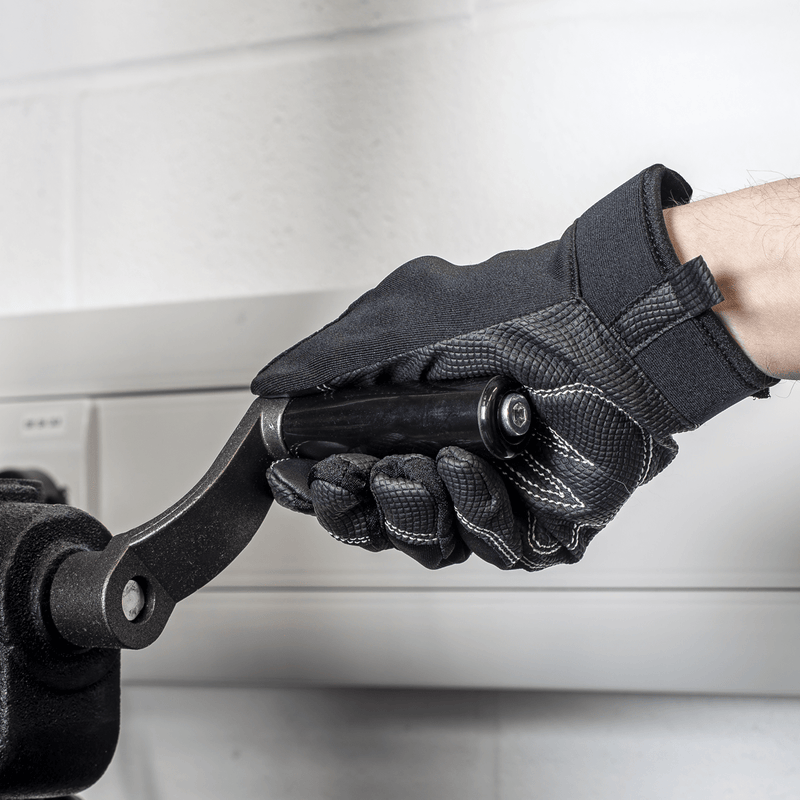

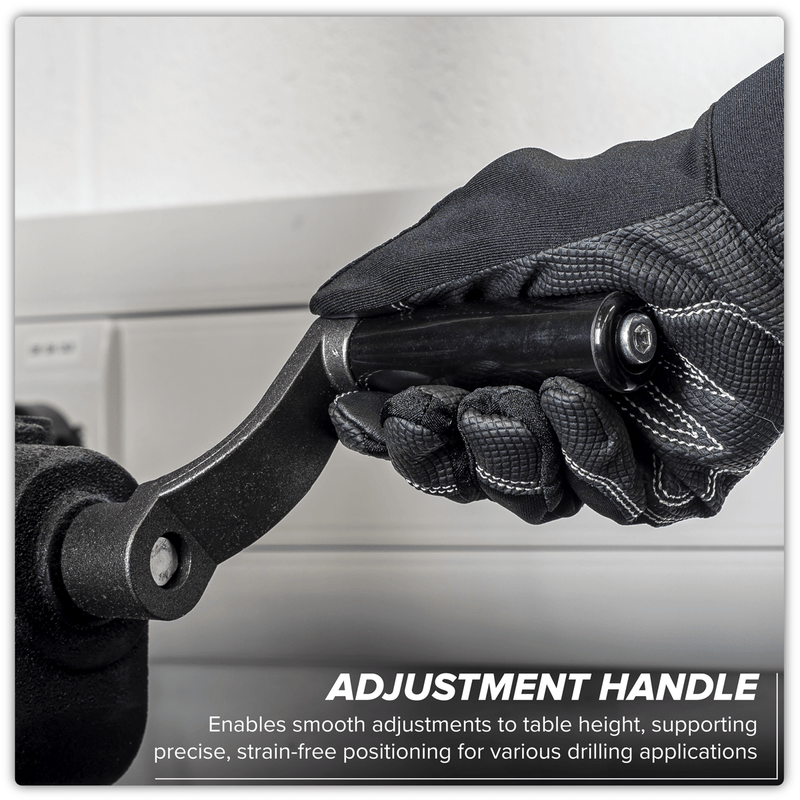

- Large sized square table fitted with precision rack and pinion height adjustment.
- 16mm(5/8") Capacity chuck, MT2.
- Height: 1050mm.
- Spindle Centre to Column: 190mm.
- Motor Power: 370W.
- Column Diameter: Ø80mm.
- Spindle Travel: 80mm.
- Weight: 55kg.
- 3 Year guarantee*.
Technical Specification
| Brand | Premier |
|---|---|
| Model No. | PDM155B |
| Barcode | 5054511285369 |
| Warranty | 3 years |
| Commodity Code | 8459290000 |
| Country of Origin | CHN |
| Pack Dimensions | H 0.295m × W 0.89m × D 0.5m |
| Gross Weight | 57kg |
| Base Size | 495 x 290mm |
| Collar Diameter | Ø60mm |
| Column Diameter | Ø80mm |
| Drilling Capacity (Chuck Size) | 16mm |
| Integral Work Light | Yes |
| Maximum Distance Spindle to Base | 660mm |
| Maximum Distance Spindle to Table | 475mm |
| Motor Power (Start) | 370W(600W) |
| Nett Weight | 55kg |
| Number of Speeds | 16 |
| Optional Accessories | PDM/KC - Keyless Pillar Drill Chuck 16mm |
| Overall Height | 1050mm |
| Speed Range | 190-3000rpm |
| Spindle Centre to Column | 190mm |
| Spindle Nose Taper | MT2 |
| Spindle Travel | 80mm |
| Supply | 230V |
| Swing | 380mm |
| Working Base Surface Size | 205 x 200mm |
| Working Table Surface Size | 290 x 290mm |
